Catalogue pages

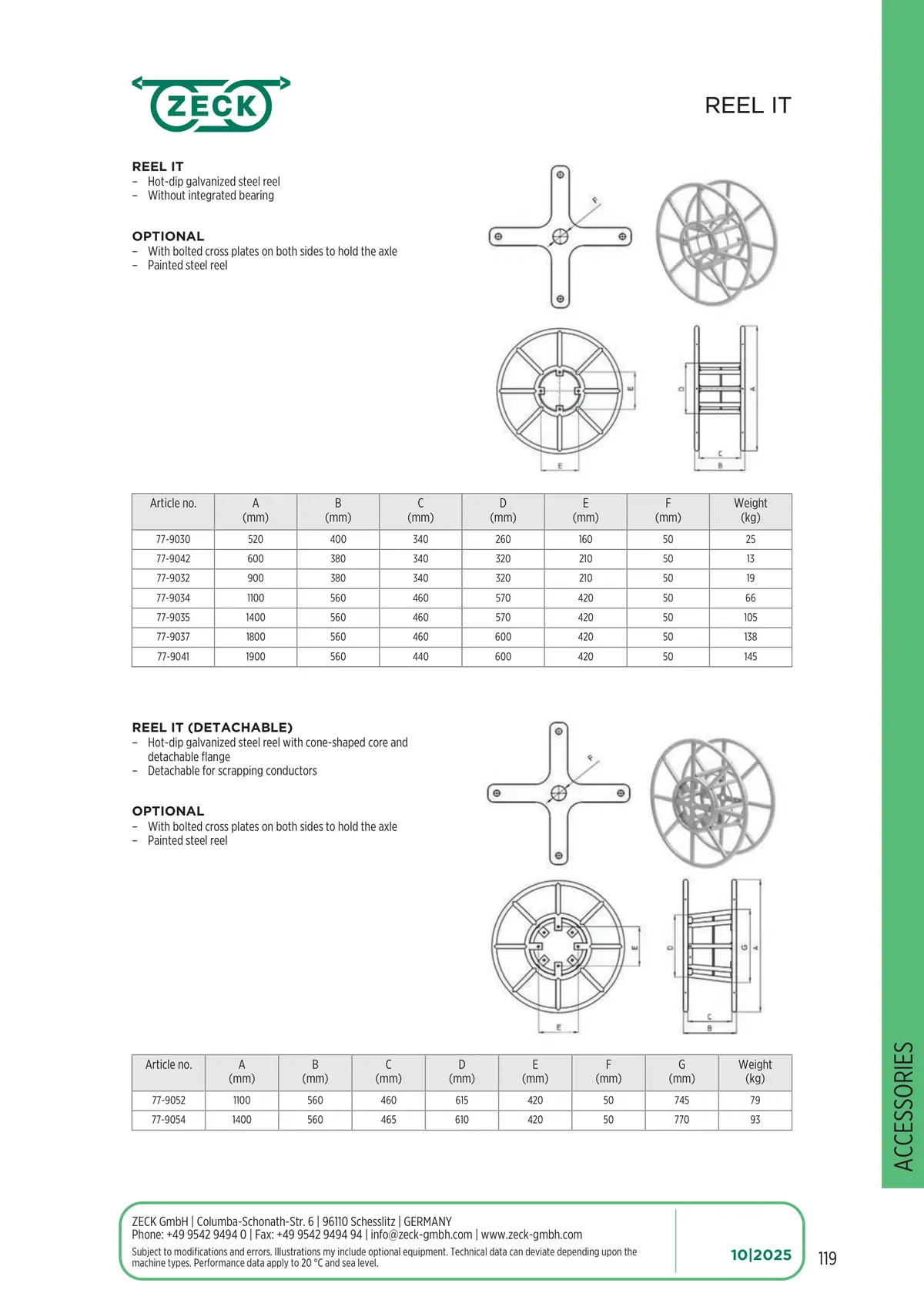

Catalogue page 119: REEL IT
Page 119 · As of 10|2025Open in viewer (Page 119)Page in the PDF

REEL IT

REEL IT

  • Hot-dip galvanized steel reel
  • Without integrated bearing

OPTIONAL

  • With bolted cross plates on both sides to hold the axle
  • Painted steel reel
Article no.A (mm)B (mm)C (mm)D (mm)E (mm)F (mm)Weight (kg)
77-90305204003402601605025
77-90426003803403202105013
77-90329003803403202105019
77-903411005604605704205066
77-9035140056046057042050105
77-9037180056046060042050138
77-9041190056044060042050145

REEL IT (DETACHABLE)

  • Hot-dip galvanized steel reel with cone-shaped core and detachable flange
  • Detachable for scrapping conductors

OPTIONAL

  • With bolted cross plates on both sides to hold the axle
  • Painted steel reel
Article no.A (mm)B (mm)C (mm)D (mm)E (mm)F (mm)G (mm)Weight (kg)
77-905211005604606154205074579
77-905414005604656104205077093

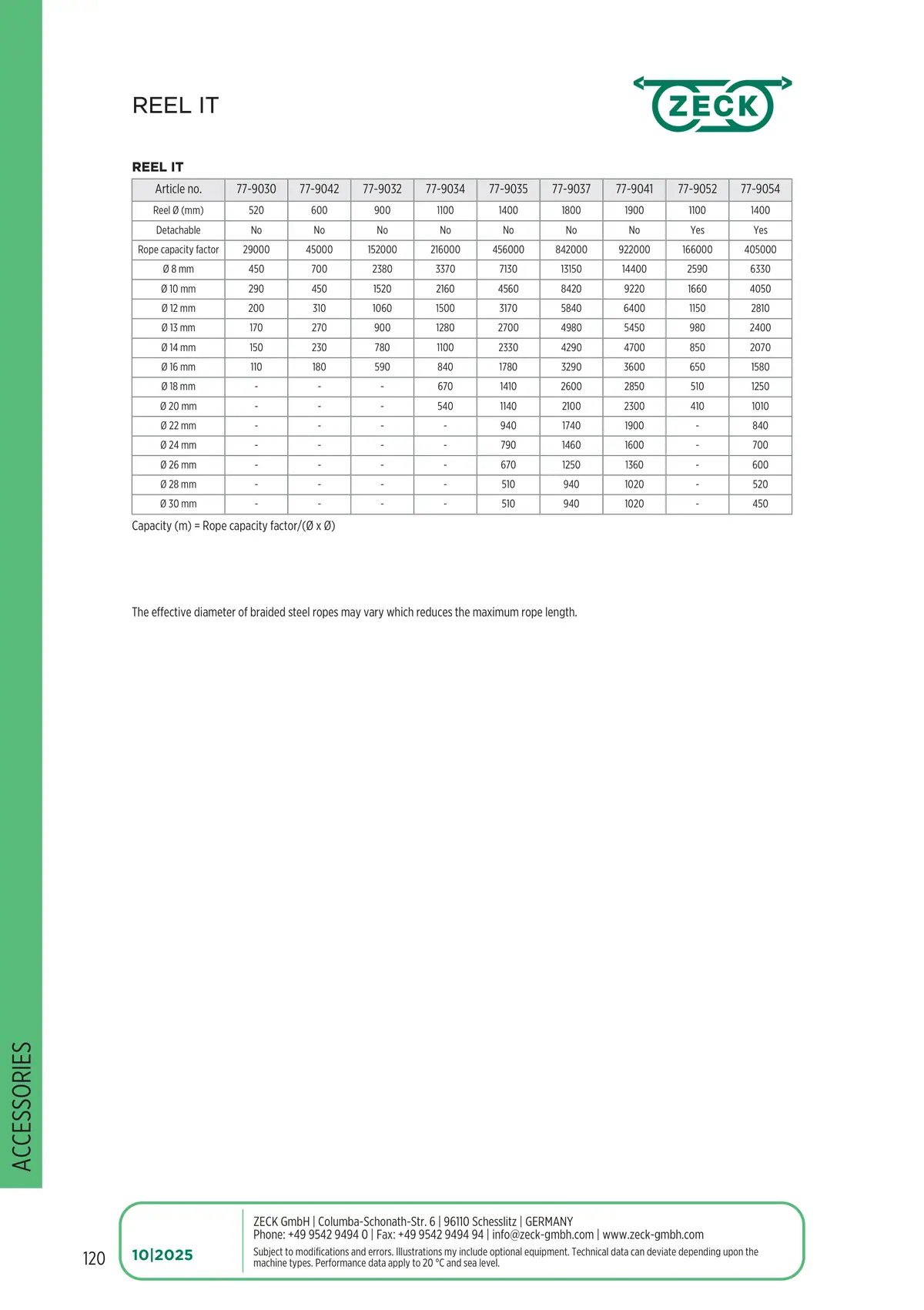

Catalogue page 120: REEL IT
Page 120 · As of 10|2025Open in viewer (Page 120)Page in the PDF

REEL IT

REEL IT

Article no.77-903077-904277-903277-903477-903577-903777-904177-905277-9054
Reel Ø (mm)520600900110014001800190011001400
DetachableNoNoNoNoNoNoNoYesYes
Rope capacity factor2900045000152000216000456000842000922000166000405000
Ø 8 mm450700238033707130131501440025906330
Ø 10 mm2904501520216045608420922016604050
Ø 12 mm2003101060150031705840640011502810
Ø 13 mm17027090012802700498054509802400
Ø 14 mm15023078011002330429047008502070
Ø 16 mm1101805908401780329036006501580
Ø 18 mm---6701410260028505101250
Ø 20 mm---5401140210023004101010
Ø 22 mm----94017401900-840
Ø 24 mm----79014601600-700
Ø 26 mm----67012501360-600
Ø 28 mm----5109401020-520
Ø 30 mm----5109401020-450

Capacity (m) = Rope capacity factor/(Ø x Ø)

The effective diameter of braided steel ropes may vary which reduces the maximum rope length.

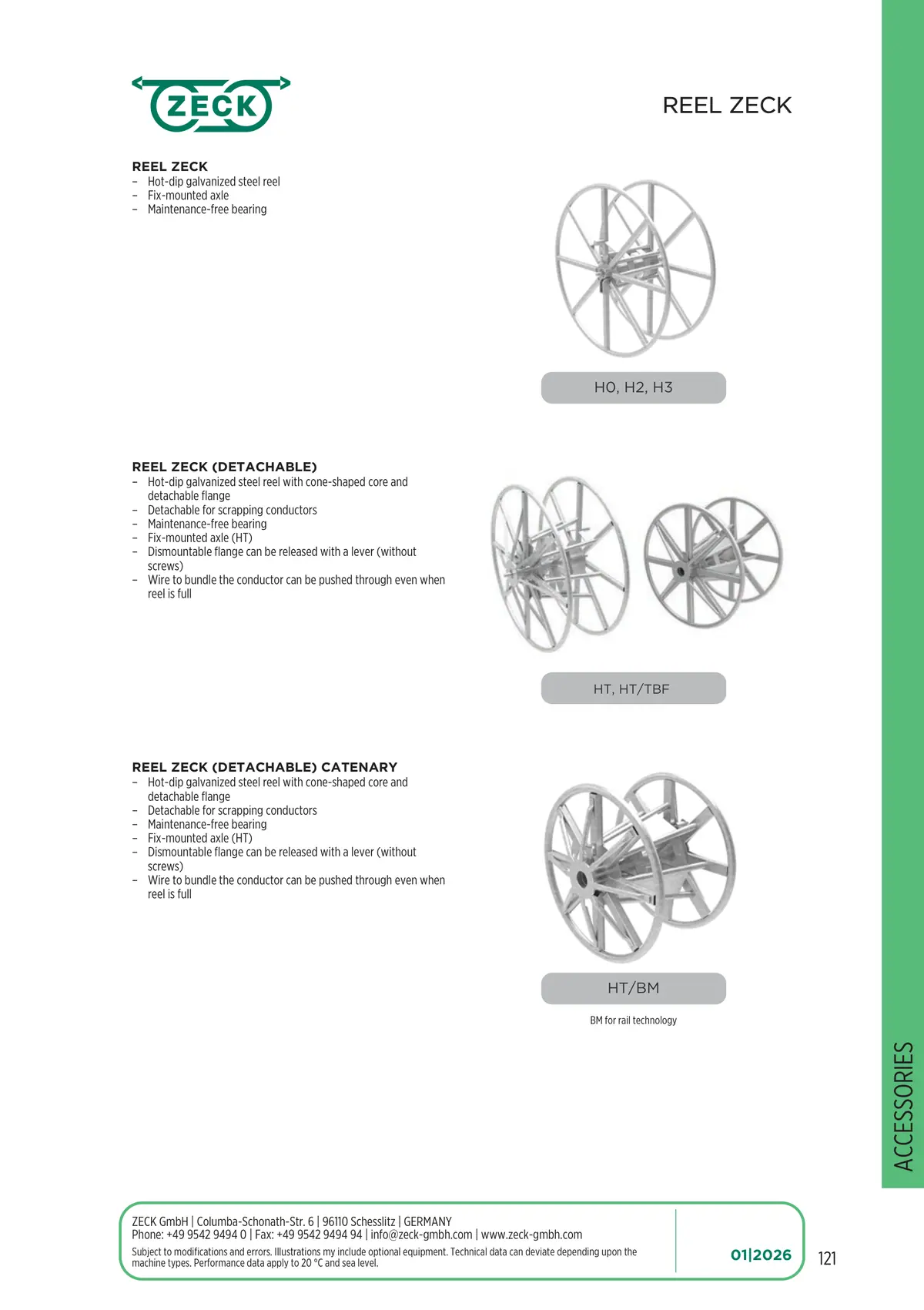

Catalogue page 121: REEL ZECK
Page 121 · As of 01|2026Open in viewer (Page 121)Page in the PDF

REEL ZECK

REEL ZECK

  • Hot-dip galvanized steel reel
  • Fix-mounted axle
  • Maintenance-free bearing

REEL ZECK (DETACHABLE)

  • Hot-dip galvanized steel reel with cone-shaped core and detachable flange
  • Detachable for scrapping conductors
  • Maintenance-free bearing
  • Fix-mounted axle (HT)
  • Dismountable flange can be released with a lever (without screws)
  • Wire to bundle the conductor can be pushed through even when reel is full

REEL ZECK (DETACHABLE) CATENARY

  • Hot-dip galvanized steel reel with cone-shaped core and detachable flange
  • Detachable for scrapping conductors
  • Maintenance-free bearing
  • Fix-mounted axle (HT)
  • Dismountable flange can be released with a lever (without screws)
  • Wire to bundle the conductor can be pushed through even when reel is full

H0, H2, H3

HT, HT/TBF

HT/BM

BM for rail technology

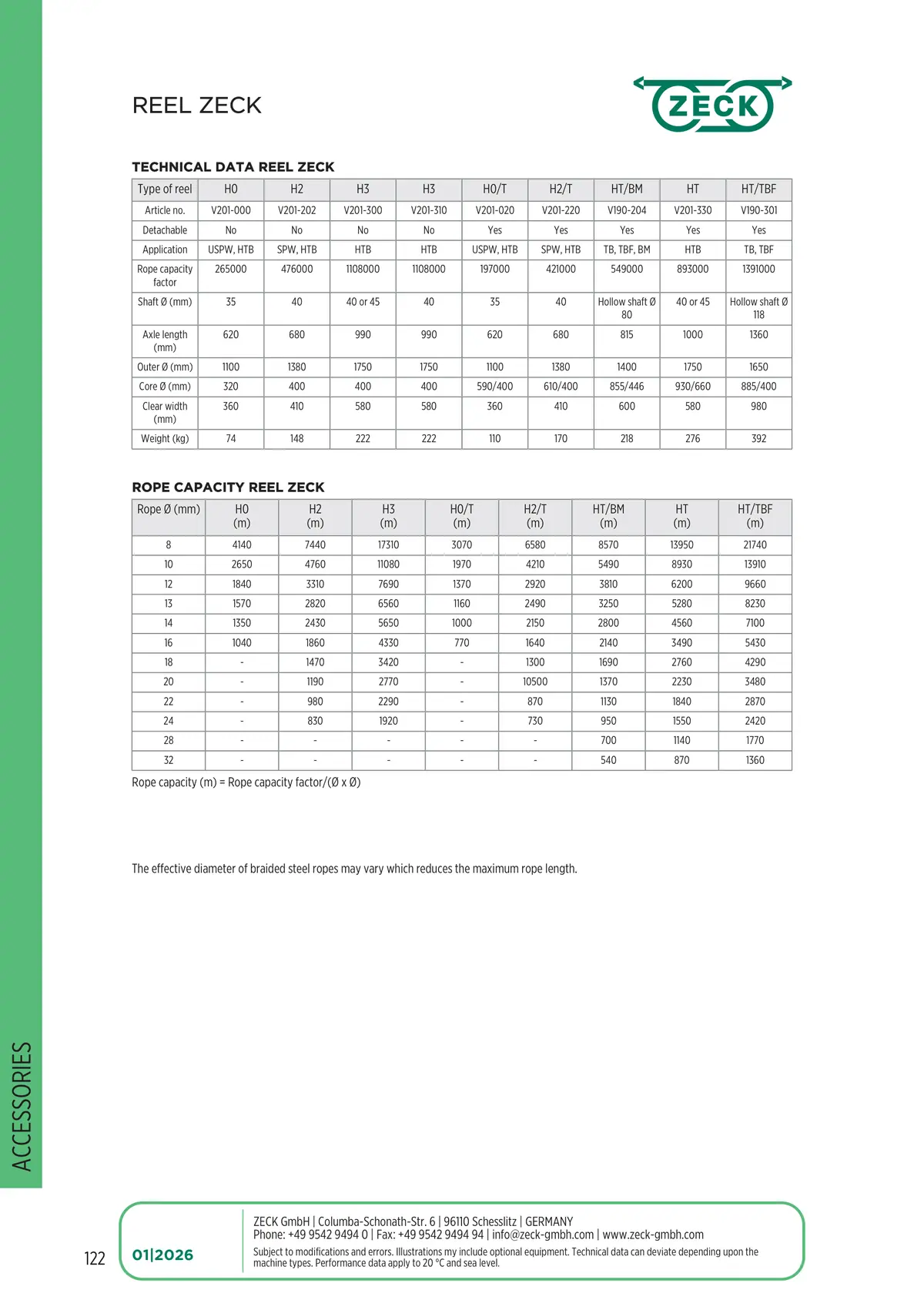

Catalogue page 122: REEL ZECK
Page 122 · As of 01|2026Open in viewer (Page 122)Page in the PDF

REEL ZECK

TECHNICAL DATA REEL ZECK

l H0H2H3H0/TH2/THT/BMHTHT/TBF
Type of ree Article no.V201-000V201-202V201-310V201-020V201-220V190-204V201-330V190-301
Type of ree DetachableNoNoNoYesYesYesYesYes
Type of ree ApplicationUSPW, HTBSPW, HTBHTBUSPW, HTBSPW, HTBTB, TBF, BMHTBTB, TBF
Type of ree Rope capacit factory 26500047600011080001970004210005490008930001391000
Type of ree Shaft Ø (mm) 3540403540Hollow shaft Ø 8040 or 45Hollow shaft Ø 118
Type of ree Axle length (mm)62068099062068081510001360
Type of ree Outer Ø (mm) 11001380175011001380140017501650
Type of ree Core Ø (mm) 320400400590/400610/400855/446930/660885/400
Type of ree Clear width (mm)360410580360410600580980
Type of ree Weight (kg)74148222110170218276392

ROPE CAPACITY REEL ZECK

m) H0 (m)H2 (m)H3 (m)H0/T (m)H2/T (m)HT/BM (m)HT (m)HT/TBF (m)
Rope Ø (m 841407440173103070658085701395021740
Rope Ø (m 102650476011080197042105490893013910
Rope Ø (m 1218403310769013702920381062009660
Rope Ø (m 1315702820656011602490325052808230
Rope Ø (m 1413502430565010002150280045607100
Rope Ø (m 161040186043307701640214034905430
Rope Ø (m 18-14703420-1300169027604290
Rope Ø (m 20-11902770-10500137022303480
Rope Ø (m 22-9802290-870113018402870
Rope Ø (m 24-8301920-73095015502420
Rope Ø (m 28-----70011401770
Rope Ø (m 32-----5408701360

Rope capacity (m) = Rope capacity factor/(Ø x Ø)

The effective diameter of braided steel ropes may vary which reduces the maximum rope length.
