PULLEY BLOCK

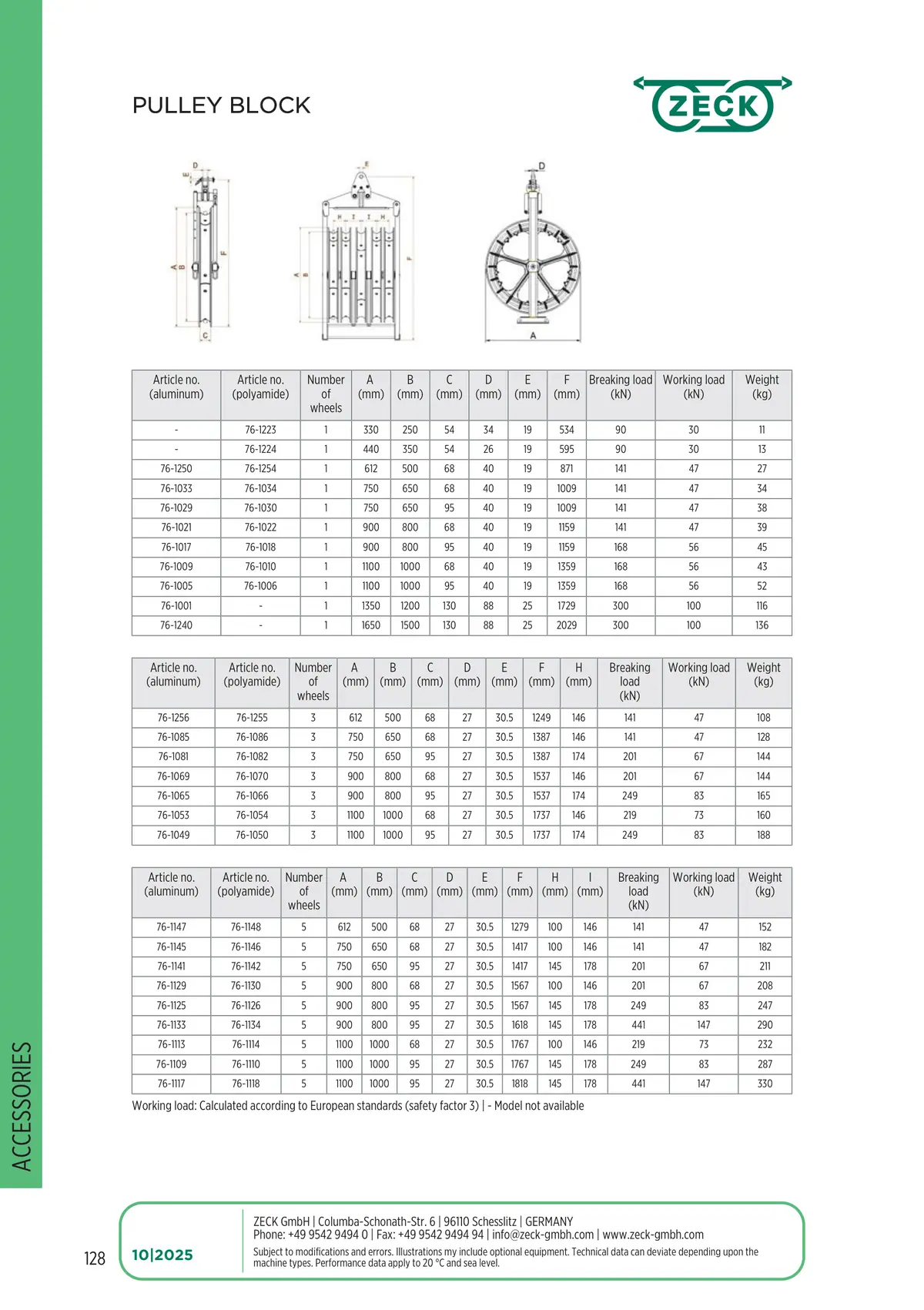

ZECK PULLEY BLOCK
- Massive aluminum sheave molded in one piece
- for single conductor or 2, 3 or 4 bundled conductors.
- Available diameters: 250/350/500/650/800/1000/1200/1500 mm
- Galvanized steel frame
- Bolted groove liners for easy exchange
- High-quality, maintenance-free ball bearings with high safe working load
OPTIONAL
- Groove liners of polyamide or aluminum
- Anti-fleeting device
- Individually adjustable distance between sheaves
Special designs on request
OPTIONAL FOR HIGH INDUCED CURRENTS
Disc grounding system with carbon brush (current induction 20 kA/0.4 s)
Grounding roller (current induction 3.5 kA/0.4 s) OPTIONAL: with carbon brush (current induction 20 kA/0.4 s)

PULLEY BLOCK
| Article no. (aluminum) | Article no. (polyamide) | Number of wheels | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 76-1223 | 1 | 330 | 250 | 54 | 34 | 19 | 534 | 90 | 30 | 11 |
| - | 76-1224 | 1 | 440 | 350 | 54 | 26 | 19 | 595 | 90 | 30 | 13 |
| 76-1250 | 76-1254 | 1 | 612 | 500 | 68 | 40 | 19 | 871 | 141 | 47 | 27 |
| 76-1033 | 76-1034 | 1 | 750 | 650 | 68 | 40 | 19 | 1009 | 141 | 47 | 34 |
| 76-1029 | 76-1030 | 1 | 750 | 650 | 95 | 40 | 19 | 1009 | 141 | 47 | 38 |
| 76-1021 | 76-1022 | 1 | 900 | 800 | 68 | 40 | 19 | 1159 | 141 | 47 | 39 |
| 76-1017 | 76-1018 | 1 | 900 | 800 | 95 | 40 | 19 | 1159 | 168 | 56 | 45 |
| 76-1009 | 76-1010 | 1 | 1100 | 1000 | 68 | 40 | 19 | 1359 | 168 | 56 | 43 |
| 76-1005 | 76-1006 | 1 | 1100 | 1000 | 95 | 40 | 19 | 1359 | 168 | 56 | 52 |
| 76-1001 | - | 1 | 1350 | 1200 | 130 | 88 | 25 | 1729 | 300 | 100 | 116 |
| 76-1240 | - | 1 | 1650 | 1500 | 130 | 88 | 25 | 2029 | 300 | 100 | 136 |
| Article no. (aluminum) | Article no. (polyamide) | Number of wheels | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 76-1256 | 76-1255 | 3 | 612 | 500 | 68 | 27 | 30.5 | 1249 | 146 | 141 | 47 | 108 |
| 76-1085 | 76-1086 | 3 | 750 | 650 | 68 | 27 | 30.5 | 1387 | 146 | 141 | 47 | 128 |
| 76-1081 | 76-1082 | 3 | 750 | 650 | 95 | 27 | 30.5 | 1387 | 174 | 201 | 67 | 144 |
| 76-1069 | 76-1070 | 3 | 900 | 800 | 68 | 27 | 30.5 | 1537 | 146 | 201 | 67 | 144 |
| 76-1065 | 76-1066 | 3 | 900 | 800 | 95 | 27 | 30.5 | 1537 | 174 | 249 | 83 | 165 |
| 76-1053 | 76-1054 | 3 | 1100 | 1000 | 68 | 27 | 30.5 | 1737 | 146 | 219 | 73 | 160 |
| 76-1049 | 76-1050 | 3 | 1100 | 1000 | 95 | 27 | 30.5 | 1737 | 174 | 249 | 83 | 188 |
| Article no. (aluminum) | Article no. (polyamide) | Number of wheels | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | I (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 76-1147 | 76-1148 | 5 | 612 | 500 | 68 | 27 | 30.5 | 1279 | 100 | 146 | 141 | 47 | 152 |
| 76-1145 | 76-1146 | 5 | 750 | 650 | 68 | 27 | 30.5 | 1417 | 100 | 146 | 141 | 47 | 182 |
| 76-1141 | 76-1142 | 5 | 750 | 650 | 95 | 27 | 30.5 | 1417 | 145 | 178 | 201 | 67 | 211 |
| 76-1129 | 76-1130 | 5 | 900 | 800 | 68 | 27 | 30.5 | 1567 | 100 | 146 | 201 | 67 | 208 |
| 76-1125 | 76-1126 | 5 | 900 | 800 | 95 | 27 | 30.5 | 1567 | 145 | 178 | 249 | 83 | 247 |
| 76-1133 | 76-1134 | 5 | 900 | 800 | 95 | 27 | 30.5 | 1618 | 145 | 178 | 441 | 147 | 290 |
| 76-1113 | 76-1114 | 5 | 1100 | 1000 | 68 | 27 | 30.5 | 1767 | 100 | 146 | 219 | 73 | 232 |
| 76-1109 | 76-1110 | 5 | 1100 | 1000 | 95 | 27 | 30.5 | 1767 | 145 | 178 | 249 | 83 | 287 |
| 76-1117 | 76-1118 | 5 | 1100 | 1000 | 95 | 27 | 30.5 | 1818 | 145 | 178 | 441 | 147 | 330 |
Working load: Calculated according to European standards (safety factor 3) | - Model not available

PULLEY BLOCK

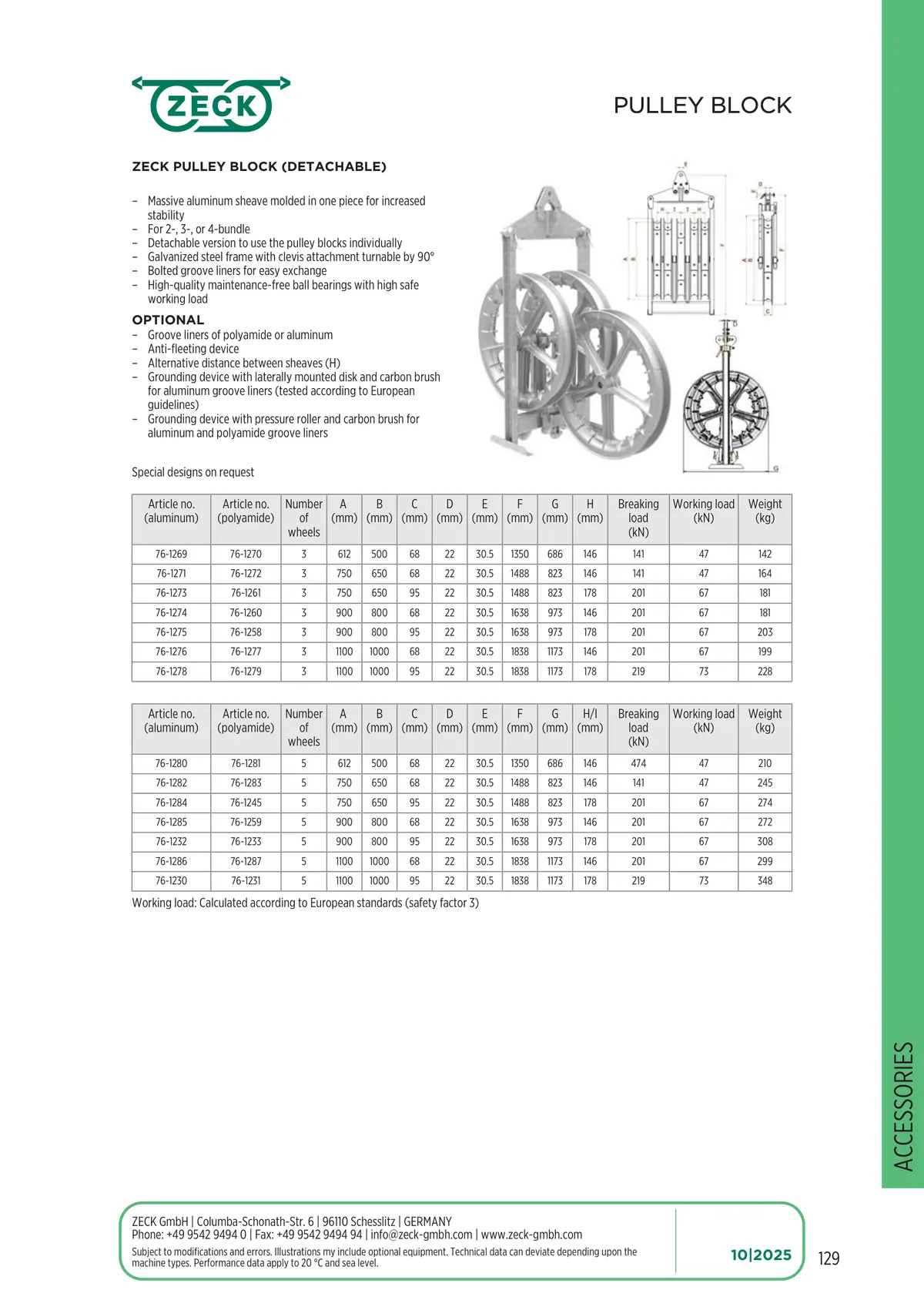

ZECK PULLEY BLOCK (DETACHABLE)
- Massive aluminum sheave molded in one piece for increased stability
- For 2-, 3-, or 4-bundle
- Detachable version to use the pulley blocks individually
- Galvanized steel frame with clevis attachment turnable by 90°
- Bolted groove liners for easy exchange
- High-quality maintenance-free ball bearings with high safe working load
OPTIONAL
- Groove liners of polyamide or aluminum
- Anti-fleeting device
- Alternative distance between sheaves (H)
- Grounding device with laterally mounted disk and carbon brush for aluminum groove liners (tested according to European guidelines)
- Grounding device with pressure roller and carbon brush for aluminum and polyamide groove liners
Special designs on request
| Article no. (aluminum) | Article no. (polyamide) | Number of wheels | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 76-1269 | 76-1270 | 3 | 612 | 500 | 68 | 22 | 30.5 | 1350 | 686 | 146 | 141 | 47 | 142 |
| 76-1271 | 76-1272 | 3 | 750 | 650 | 68 | 22 | 30.5 | 1488 | 823 | 146 | 141 | 47 | 164 |
| 76-1273 | 76-1261 | 3 | 750 | 650 | 95 | 22 | 30.5 | 1488 | 823 | 178 | 201 | 67 | 181 |
| 76-1274 | 76-1260 | 3 | 900 | 800 | 68 | 22 | 30.5 | 1638 | 973 | 146 | 201 | 67 | 181 |
| 76-1275 | 76-1258 | 3 | 900 | 800 | 95 | 22 | 30.5 | 1638 | 973 | 178 | 201 | 67 | 203 |
| 76-1276 | 76-1277 | 3 | 1100 | 1000 | 68 | 22 | 30.5 | 1838 | 1173 | 146 | 201 | 67 | 199 |
| 76-1278 | 76-1279 | 3 | 1100 | 1000 | 95 | 22 | 30.5 | 1838 | 1173 | 178 | 219 | 73 | 228 |
| Article no. (aluminum) | Article no. (polyamide) | Number of wheels | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H/I (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 76-1280 | 76-1281 | 5 | 612 | 500 | 68 | 22 | 30.5 | 1350 | 686 | 146 | 474 | 47 | 210 |
| 76-1282 | 76-1283 | 5 | 750 | 650 | 68 | 22 | 30.5 | 1488 | 823 | 146 | 141 | 47 | 245 |
| 76-1284 | 76-1245 | 5 | 750 | 650 | 95 | 22 | 30.5 | 1488 | 823 | 178 | 201 | 67 | 274 |
| 76-1285 | 76-1259 | 5 | 900 | 800 | 68 | 22 | 30.5 | 1638 | 973 | 146 | 201 | 67 | 272 |
| 76-1232 | 76-1233 | 5 | 900 | 800 | 95 | 22 | 30.5 | 1638 | 973 | 178 | 201 | 67 | 308 |
| 76-1286 | 76-1287 | 5 | 1100 | 1000 | 68 | 22 | 30.5 | 1838 | 1173 | 146 | 201 | 67 | 299 |
| 76-1230 | 76-1231 | 5 | 1100 | 1000 | 95 | 22 | 30.5 | 1838 | 1173 | 178 | 219 | 73 | 348 |
Working load: Calculated according to European standards (safety factor 3)

PULLEY BLOCK

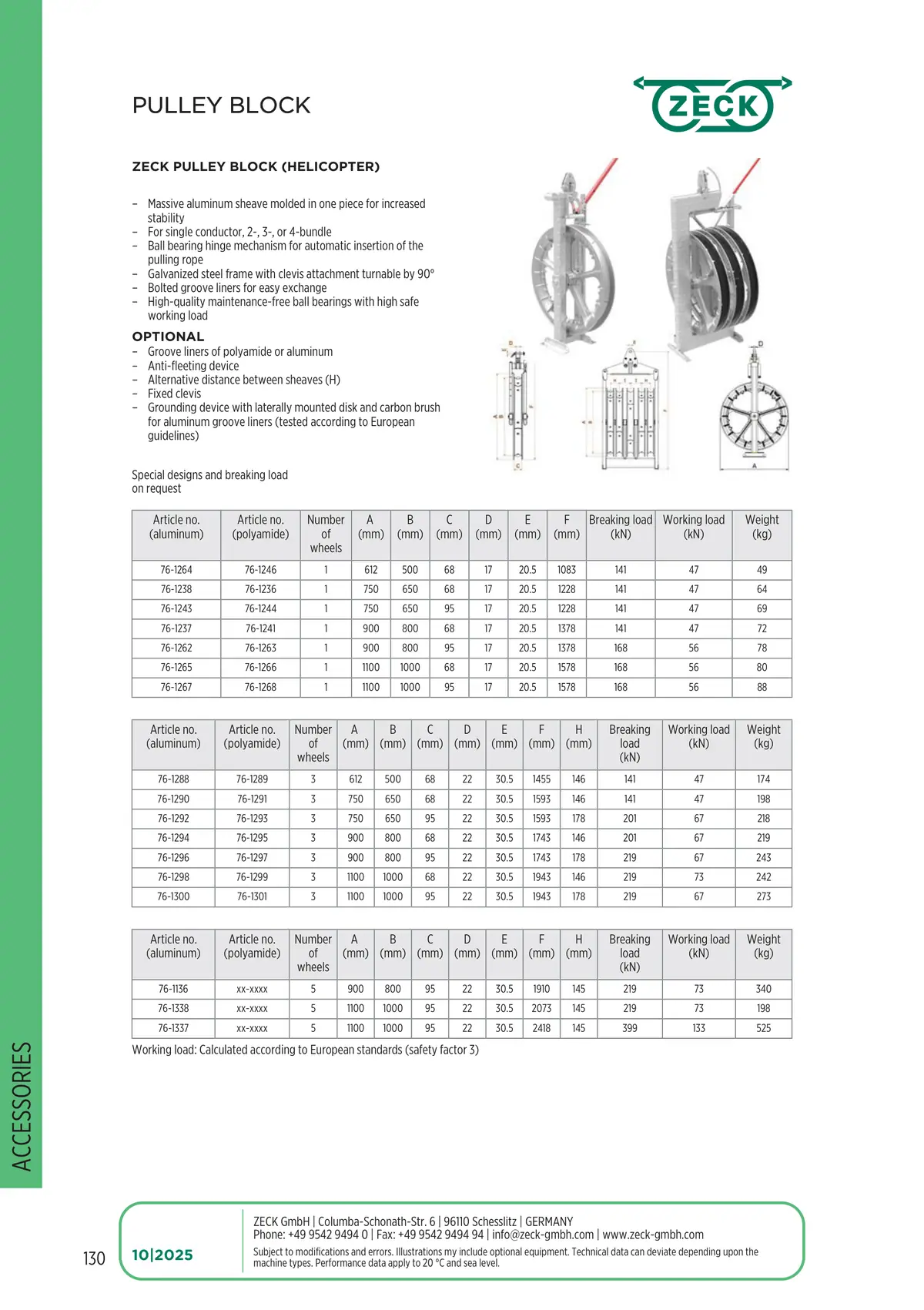

ZECK PULLEY BLOCK (HELICOPTER)
- Massive aluminum sheave molded in one piece for increased stability
- For single conductor, 2-, 3-, or 4-bundle
- Ball bearing hinge mechanism for automatic insertion of the pulling rope
- Galvanized steel frame with clevis attachment turnable by 90°
- Bolted groove liners for easy exchange
- High-quality maintenance-free ball bearings with high safe working load
OPTIONAL
- Groove liners of polyamide or aluminum
- Anti-fleeting device
- Alternative distance between sheaves (H)
- Fixed clevis
- Grounding device with laterally mounted disk and carbon brush for aluminum groove liners (tested according to European guidelines)
Special designs and breaking load on request
| Article no. (aluminum) | Article no. (polyamide) | Number of wheels | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 76-1264 | 76-1246 | 1 | 612 | 500 | 68 | 17 | 20.5 | 1083 | 141 | 47 | 49 |
| 76-1238 | 76-1236 | 1 | 750 | 650 | 68 | 17 | 20.5 | 1228 | 141 | 47 | 64 |
| 76-1243 | 76-1244 | 1 | 750 | 650 | 95 | 17 | 20.5 | 1228 | 141 | 47 | 69 |
| 76-1237 | 76-1241 | 1 | 900 | 800 | 68 | 17 | 20.5 | 1378 | 141 | 47 | 72 |
| 76-1262 | 76-1263 | 1 | 900 | 800 | 95 | 17 | 20.5 | 1378 | 168 | 56 | 78 |
| 76-1265 | 76-1266 | 1 | 1100 | 1000 | 68 | 17 | 20.5 | 1578 | 168 | 56 | 80 |
| 76-1267 | 76-1268 | 1 | 1100 | 1000 | 95 | 17 | 20.5 | 1578 | 168 | 56 | 88 |
| Article no. (aluminum) | Article no. (polyamide) | Number of wheels | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 76-1288 | 76-1289 | 3 | 612 | 500 | 68 | 22 | 30.5 | 1455 | 146 | 141 | 47 | 174 |
| 76-1290 | 76-1291 | 3 | 750 | 650 | 68 | 22 | 30.5 | 1593 | 146 | 141 | 47 | 198 |
| 76-1292 | 76-1293 | 3 | 750 | 650 | 95 | 22 | 30.5 | 1593 | 178 | 201 | 67 | 218 |
| 76-1294 | 76-1295 | 3 | 900 | 800 | 68 | 22 | 30.5 | 1743 | 146 | 201 | 67 | 219 |
| 76-1296 | 76-1297 | 3 | 900 | 800 | 95 | 22 | 30.5 | 1743 | 178 | 219 | 67 | 243 |
| 76-1298 | 76-1299 | 3 | 1100 | 1000 | 68 | 22 | 30.5 | 1943 | 146 | 219 | 73 | 242 |
| 76-1300 | 76-1301 | 3 | 1100 | 1000 | 95 | 22 | 30.5 | 1943 | 178 | 219 | 67 | 273 |
| Article no. (aluminum) | Article no. (polyamide) | Number of wheels | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 76-1136 | xx-xxxx | 5 | 900 | 800 | 95 | 22 | 30.5 | 1910 | 145 | 219 | 73 | 340 |
| 76-1338 | xx-xxxx | 5 | 1100 | 1000 | 95 | 22 | 30.5 | 2073 | 145 | 219 | 73 | 198 |
| 76-1337 | xx-xxxx | 5 | 1100 | 1000 | 95 | 22 | 30.5 | 2418 | 145 | 399 | 133 | 525 |
Working load: Calculated according to European standards (safety factor 3)

PULLEY BLOCK

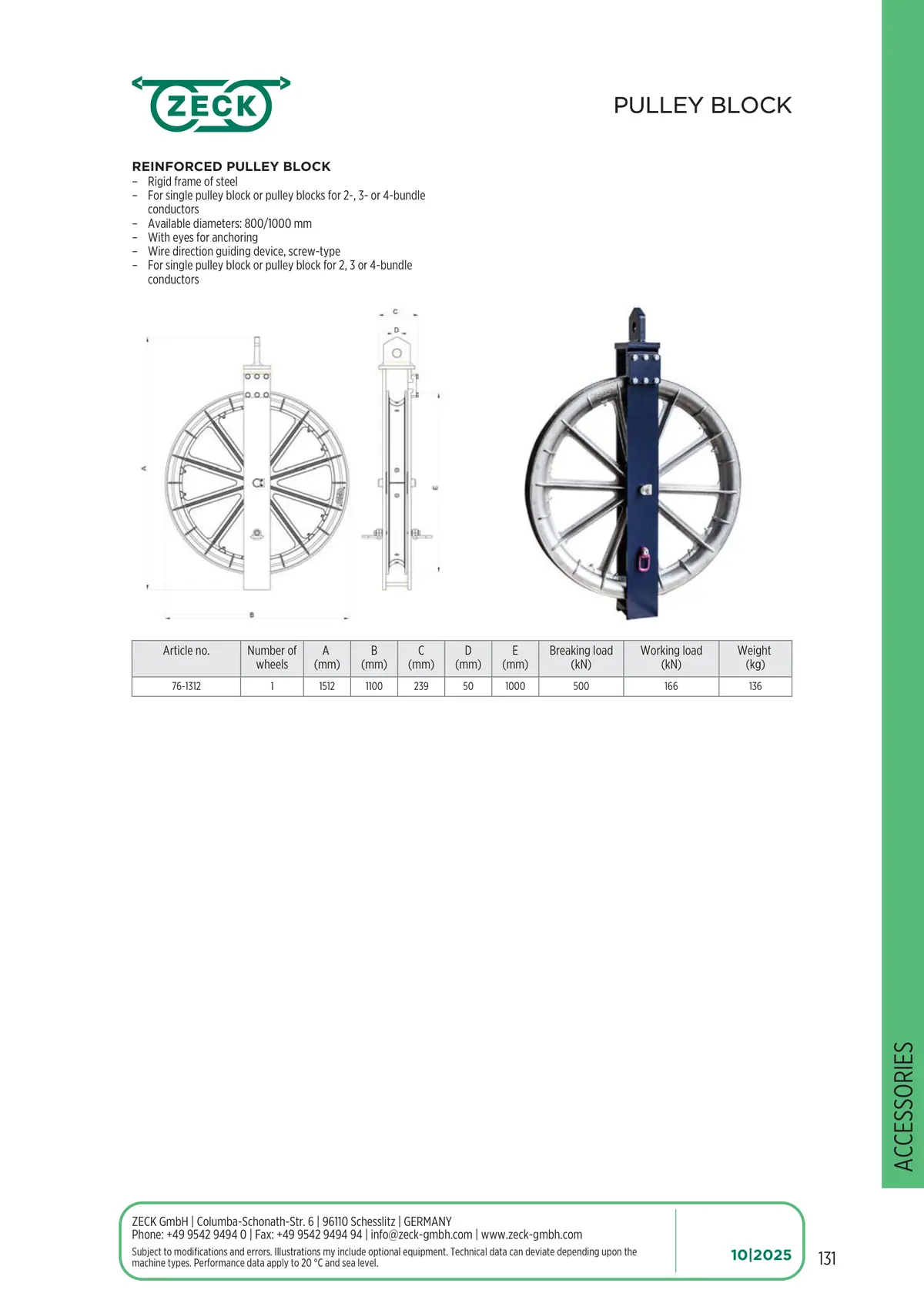

REINFORCED PULLEY BLOCK
- Rigid frame of steel
- For single pulley block or pulley blocks for 2-, 3- or 4-bundle conductors
- Available diameters: 800/1000 mm
- With eyes for anchoring
- Wire direction guiding device, screw-type
- For single pulley block or pulley block for 2, 3 or 4-bundle conductors
| Article no. | Number of wheels | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Breaking load (kN) | Working load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 76-1312 | 1 | 1512 | 1100 | 239 | 50 | 1000 | 500 | 166 | 136 |

ZECK TRANSPORT BOX

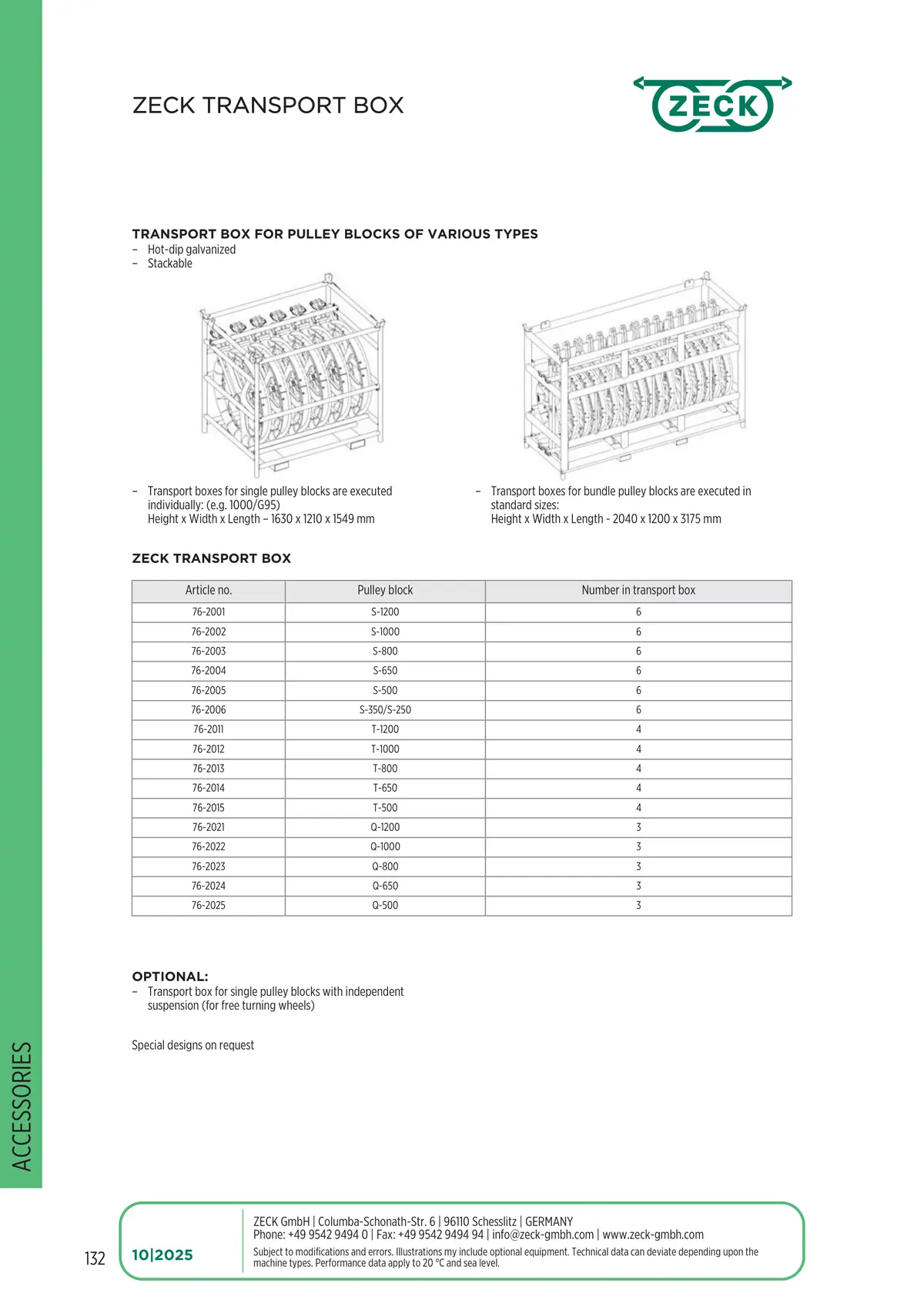

TRANSPORT BOX FOR PULLEY BLOCKS OF VARIOUS TYPES
- Hot-dip galvanized
- Stackable
- Transport boxes for single pulley blocks are executed individually: (e.g. 1000/G95) Height x Width x Length – 1630 x 1210 x 1549 mm
- Transport boxes for bundle pulley blocks are executed in standard sizes: Height x Width x Length - 2040 x 1200 x 3175 mm
ZECK TRANSPORT BOX
| Article no. | Pulley block | Number in transport box |
|---|---|---|
| 76-2001 | S-1200 | 6 |
| 76-2002 | S-1000 | 6 |
| 76-2003 | S-800 | 6 |
| 76-2004 | S-650 | 6 |
| 76-2005 | S-500 | 6 |
| 76-2006 | S-350/S-250 | 6 |
| 76-2011 | T-1200 | 4 |
| 76-2012 | T-1000 | 4 |
| 76-2013 | T-800 | 4 |
| 76-2014 | T-650 | 4 |
| 76-2015 | T-500 | 4 |
| 76-2021 | Q-1200 | 3 |
| 76-2022 | Q-1000 | 3 |
| 76-2023 | Q-800 | 3 |
| 76-2024 | Q-650 | 3 |
| 76-2025 | Q-500 | 3 |
OPTIONAL:
- Transport box for single pulley blocks with independent suspension (for free turning wheels)
Special designs on request
