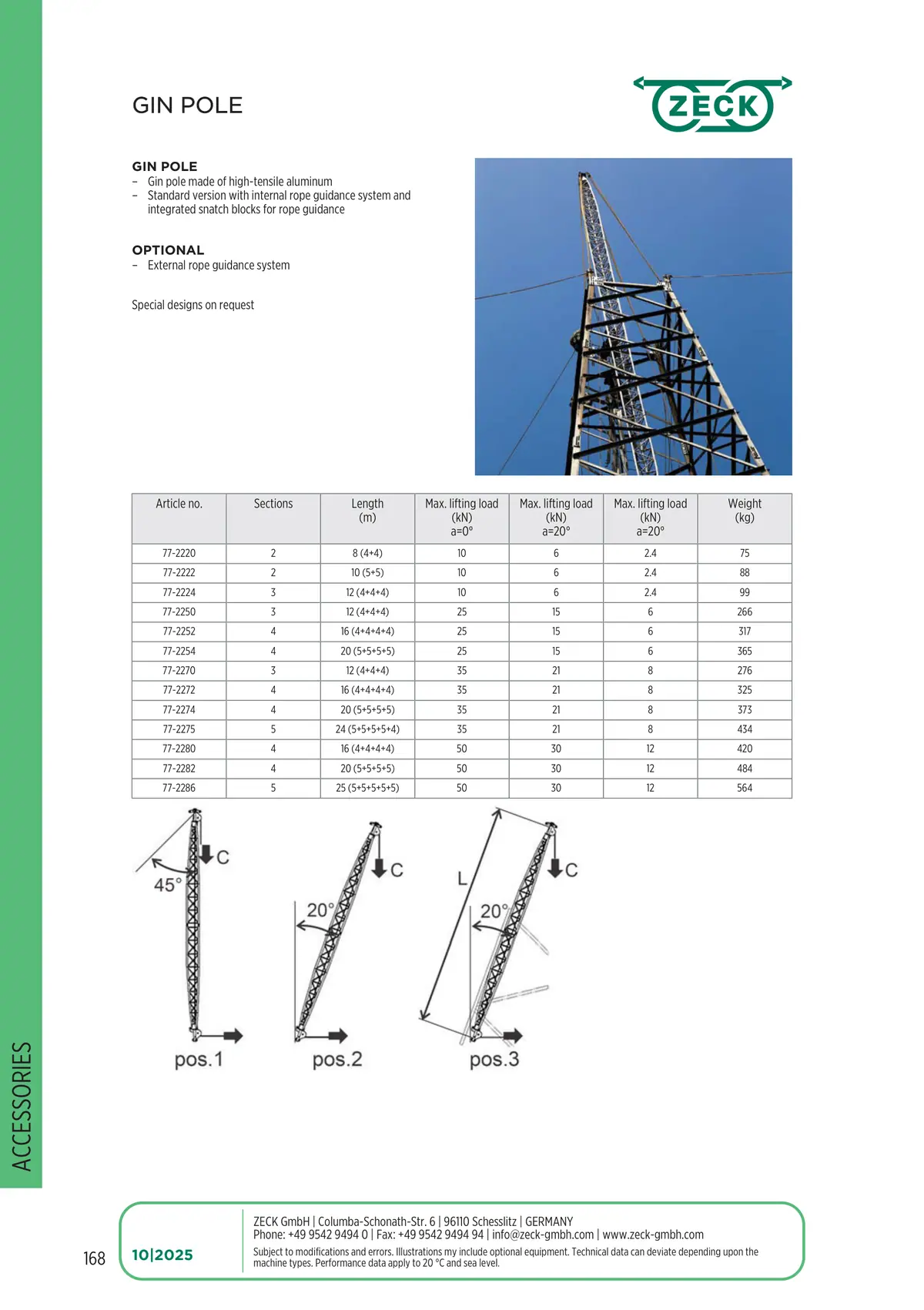

GIN POLE

GIN POLE
  • Gin pole made of high-tensile aluminum
  • Standard version with internal rope guidance system and integrated snatch blocks for rope guidance

Optional
  • External rope guidance system


Special designs on request

Article no.SectionsLength
(m)
Max. lifting load
(kN)
a=0°
Max. lifting load
(kN)
a=20°
Max. lifting load
(kN)
a=20°
Weight
(kg)
77-222028 (4+4)1062.475
77-2222210 (5+5)1062.488
77-2224312 (4+4+4)1062.499
77-2250312 (4+4+4)25156266
77-2252416 (4+4+4+4)25156317
77-2254420 (5+5+5+5)25156365
77-2270312 (4+4+4)35218276
77-2272416 (4+4+4+4)35218325
77-2274420 (5+5+5+5)35218373
77-2275524 (5+5+5+5+4)35218434
77-2280416 (4+4+4+4)503012420
77-2282420 (5+5+5+5)503012484
77-2286525 (5+5+5+5+5)503012564
