LINE VEHICLE

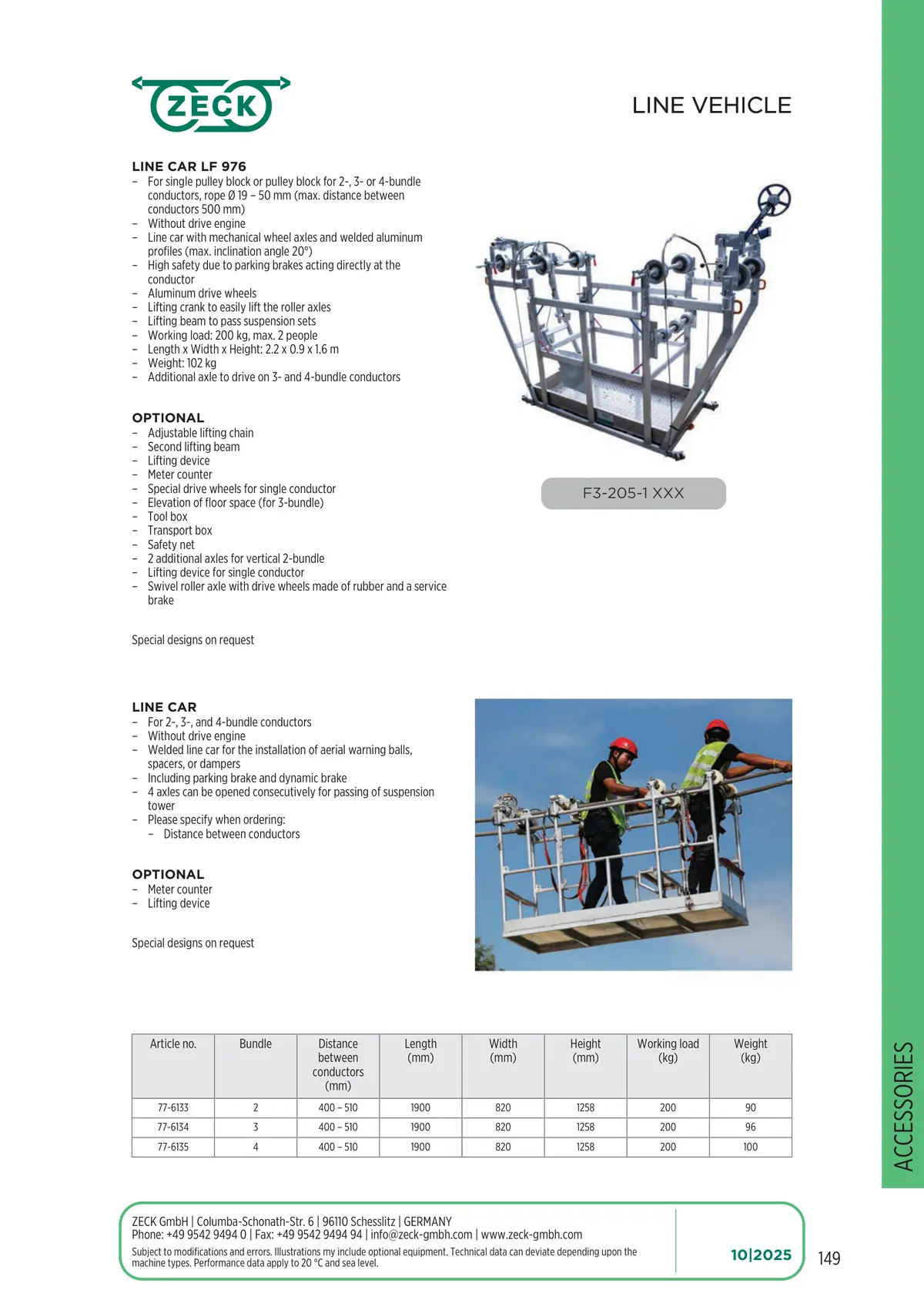

LINE CAR LF 976
  • For single conductors, 2-, 3-, 4-bundle conductors, rope Ø 19 – 50 mm (max. distance between conductors 500 mm)
  • Without drive engine
  • Line car with mechanical wheel axles and welded aluminum profiles (max. inclination angle 20°)
  • High safety due to parking brakes acting directly at the conductor
  • Aluminum drive wheels
  • Lifting crank to easily lift the roller axles
  • Lifting beam to pass suspension sets
  • Working load: 200 kg, max. 2 people
  • Length x Width x Height: 2.2 x 0.9 x 1.6 m
  • Weight: 102 kg


Optional
  • Adjustable lifting chain
  • Second lifting beam
  • Lifting device
  • Meter counter
  • Special drive wheels for single conductor
  • Elevation of floor space (for 3-bundle)
  • Tool box
  • Transport box
  • Safety net
  • Additional axle for vertical 2-bundle
  • Lifting device for single conductor
  • Service brake


Special designs on request


LIFTING DEVICE FOR LINE CAR
  • Lifting device is installed on conductors for easy lifting of line car
  • Aluminum lifting device is installed on 2 ropes with the rope rests and the guide pulley pointing upwards
  • Adjustable rope rests and clamping jaws (400/450/500 or 600 mm)
  • Rubber lining for conductor protection
  • Working load: 500 kg
  • Length x Width x Height: 650 x 400x 375 mm
  • Weight: 9 kg


Special designs on request


ZECK LINE CAR RESCUE SYSTEM
The rescue system is available for line cars LF 975 | LF 923 | LF 947
  • The tub with ball bearing allows to easily push out the injured person A fast rescue is also possible at the maximum inclination angle
  • Tub can be locked in 4 positions
  • Anti-fall grating at the bottom of the line car provides safe footing for the rescuer
  • The large hatch allows an easy and injury-free rescue


All ZECK line cars (welded or bolted) can be upgraded with the rescue system retrospectively

ZECK LINE CAR RESCUE SYSTEM ACCESSORIES
  • Multi-functional rolling ladder
  • Dismountable in 3 sections
  • Adjustable to tance between conductors: 400, 450, 500mm
  • For 2-, 3-, 4-bundle
  • Packed in sturdy aluminum transport box


EQUIPMENT
  • (1x) rolling ladder (2/3/4 bundle), 3 pieces


OPTIONAL
  • Suspension ladder 6 m
  • (2x) round sling
  • (1x) height rescue equipment (backpack)
  • (1x) small guide pulley (to guide the rope inside the line car)
  • (2x) snatch block (10 kN)
  • Lifting rope/tower rope (100 m)

LINE CARS
  • For 2-, 3-, and 4-bundle conductor
  • With drive engine, max. 6.3 kW (8.6 hp)
  • Welded line car for the installation of aerial warning balls or dampers (max. inclination angle 25°)
  • Including parking brake and dynamic brake
  • Max. speed 40 m/min
  • 4 axles can be opened consecutively for passing of suspension tower
  • Please specify when ordering:
    • Distance between conductors


Optional
  • Meter counter
  • Lifting device


Special designs on request

Article no.BundleDistance between conductors
(mm)
Length
(mm)
Width
(mm)
Height
(mm)
Working load
(kg)
Weight
(kg)
77-61302400 – 60019009401690200208
77-61313400 – 60019009401690200213
77-61324400 – 60019009401690200218
LINE CARS
  • For 2-, 3-, and 4-bundle conductor
  • Without drive engine
  • Welded line car for the installation of aerial warning balls, spacers, or dampers
  • Including parking brake and dynamic brake
  • 4 axles can be opened consecutively for passing of suspension tower
  • Please specify when ordering:
    • Distance between conductors


Optional
  • Meter counter
  • Lifting device


Special designs on request

Article no.BundleDistance between conductors
(mm)
Length
(mm)
Width
(mm)
Height
(mm)
Working load
(kg)
Weight
(kg)
77-61332400 – 5101900820125820090
77-61343400 – 5101900820125820096
77-61354400 – 51019008201258200100

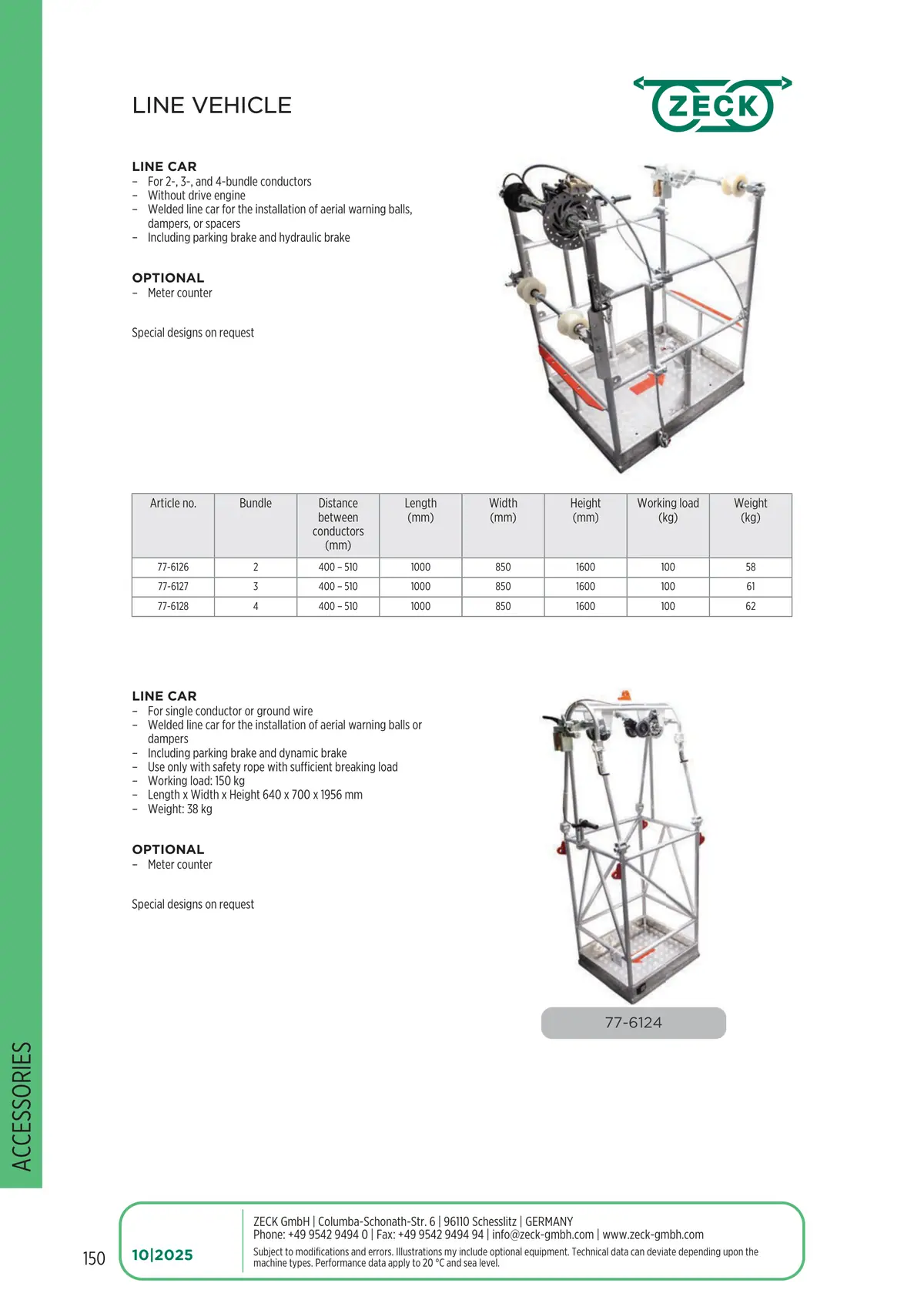

LINE CARS
  • For 2-, 3-, and 4-bundle conductor
  • Without drive engine
  • Welded line car for the installation of aerial warning balls, dampers, or spacers
  • Including parking brake and hydraulic brake


Optional
  • Meter counter


Special designs on request

Article no.BundleDistance between conductors
(mm)
Length
(mm)
Width
(mm)
Height
(mm)
Working load
(kg)
Weight
(kg)
77-61262400 – 5101000850160010058
77-61273400 – 5101000850160010061
77-61284400 – 5101000850160010062
LINE CARS
  • For single conductor or ground wire
  • Welded line car for the installation of aerial warning balls or dampers
  • Including parking brake and dynamic brake
  • Use only with safety rope with sufficient breaking load
  • Working load: 100 kg
  • Length x Width x Height 640 x 700 x 1956 mm
  • Weight: 38 kg


Optional
  • Meter counter


Special designs on request


LINE SEAT
  • For single conductor or ground wire
  • Welded inspection line car for the installation of aerial warning balls or dampers
  • Including parking brake and dynamic brake
  • Use only with safety rope with sufficient breaking load
  • Working load: 100 kg
  • Length x Width x Height: 900 x 700 x 800 mm
  • Weight: 19 kg


Optional
  • Meter counter


Special designs on request


LINE BICYCLE
  • For driving safely on overhead power lines to execute inspections
  • Line bicycle for the installation of spacers, dampers and aerial warning balls
  • Driven by muscle power
  • High-tensile ball bearing polyamide rollers with anti-slip coating
  • Static brake, operated via manual lever, acting via shoe brakes directly at the conductor
  • Dynamic disc brake, operated via manual liver, acting directly at the driving axle
  • Easily adjustable to different distances between conductors
  • Safety belt
  • Meter counter
  • Rollers are insulated and turn smoothly


Special designs on request

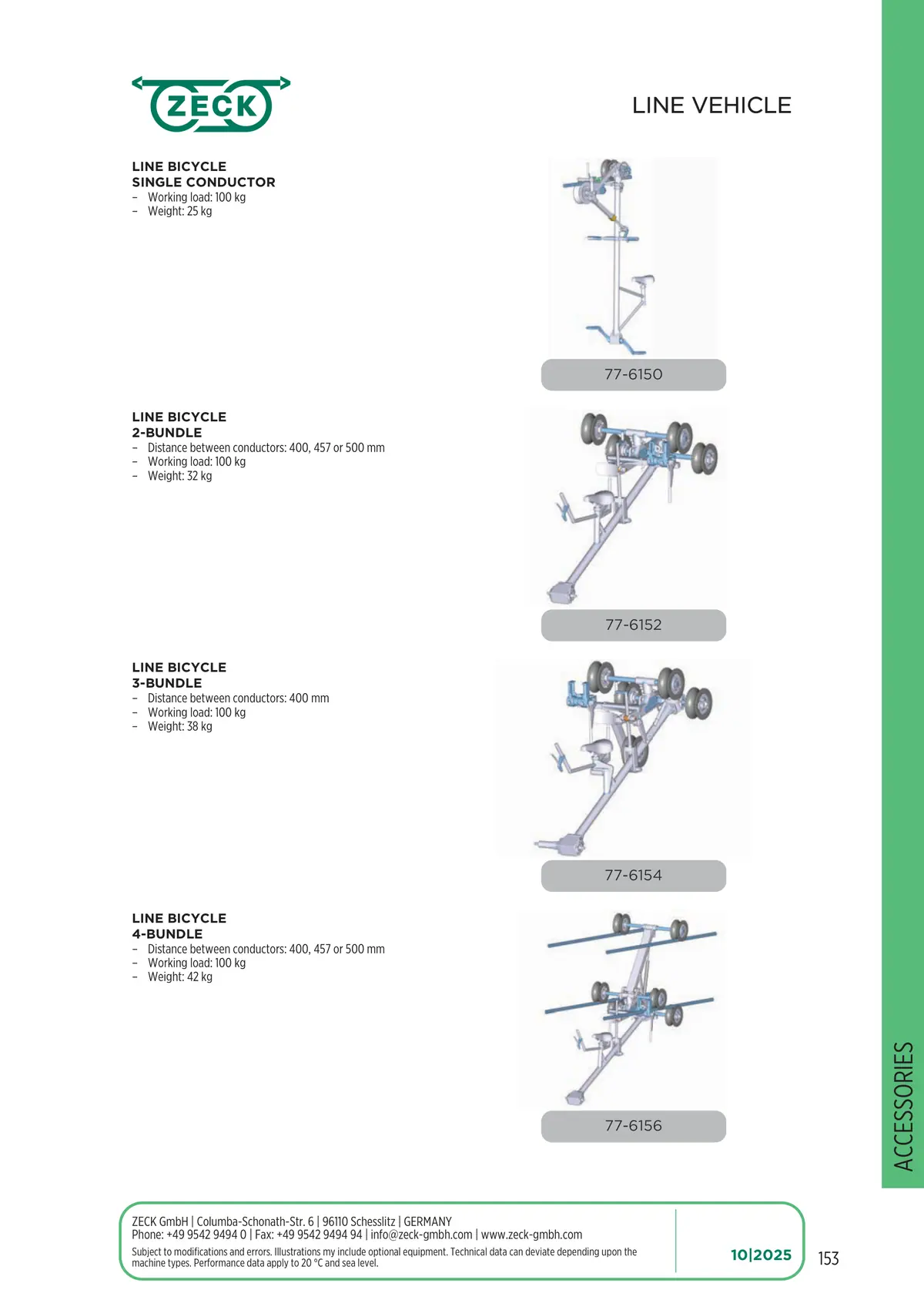

LINE BICYCLE
SINGLE CONDUCTOR
  • Working load: 100 kg
  • Weight: 25 kg



LINE BICYCLE
2-BUNDLE
  • Distance between conductors: 400, 457 or 500 mm
  • Working load: 100 kg
  • Weight: 32 kg



LINE BICYCLE
3-BUNDLE
  • Distance between conductors: 400 mm
  • Working load: 100 kg
  • Weight: 38 kg



LINE BICYCLE
4-BUNDLE
  • Distance between conductors: 400, 457 or 500 mm
  • Working load: 100 kg
  • Weight: 42 kg



LIFTING DEVICE FOR LINE CAR
  • Lifting device is installed on conductors for easy lifting of line car
  • Aluminum lifting device is installed on 2 ropes with the rope rests and the guide pulley pointing upwards
  • Adjustable rope rests and clamping jaws (400/450/500 or 600 mm)
  • Rubber lining for conductor protection
  • Working load: 500 kg
  • Length x Width x Height: 650 x 400x 375 mm
  • Weight: 9 kg


Special designs on request
