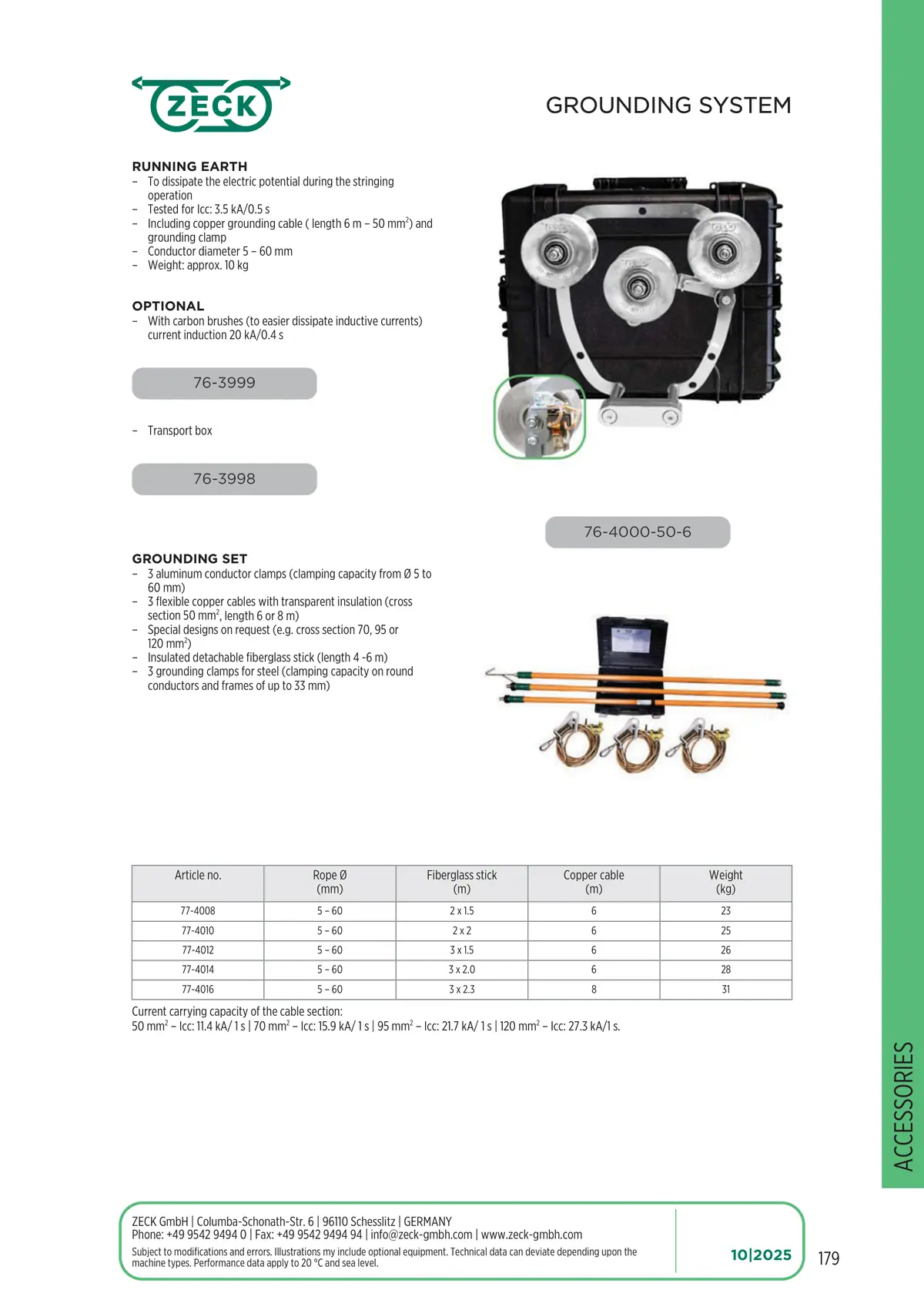

GROUNDING SYSTEM

RUNNING EARTH
  • To dissipate the electric potential during the stringing operation
  • Tested for Icc: 3.5 kA/0.5 s
  • Including copper grounding cable ( length 6 m – 50 mm2) and grounding clamp
  • Conductor diameter 5 – 60 mm
  • Weight: approx. 10 kg
OPTIONAL
  • With carbon brushes (to easier dissipate inductive currents) current induction 20 kA/0.4 s
  • Transport box
GROUNDING SET
  • 3 aluminum conductor clamps (clamping capacity from Ø 5 to 60 mm)
  • 3 flexible copper cables with transparent insulation (cross section 50 mm2, length 6 or 8 m)
  • Special designs on request (e.g. cross section 70, 95 or 120 mm2)
  • Insulated detachable fiberglass stick (length 4 -6 m)
  • 3 grounding clamps for steel (clamping capacity on round conductors and frames of up to 33 mm)
Article no.Rope Ø

(mm)
Fiberglass stick

(m)
Copper cable

(m)
Weight

(kg)
77-40085 – 602 x 1.5623
77-40105 – 602 x 2625
77-40125 – 603 x 1.5626
77-40145 – 603 x 2.0628
77-40165 – 603 x 2.3831
Current carrying capacity of the cable section:

50 mm2 – Icc: 11.4 kA/ 1 s | 70 mm2 – Icc: 15.9 kA/ 1 s | 95 mm2 – Icc: 21.7 kA/ 1 s | 120 mm2 – Icc: 27.3 kA/1 s.
