Ladder | Platform

LADDER | PLATFORM

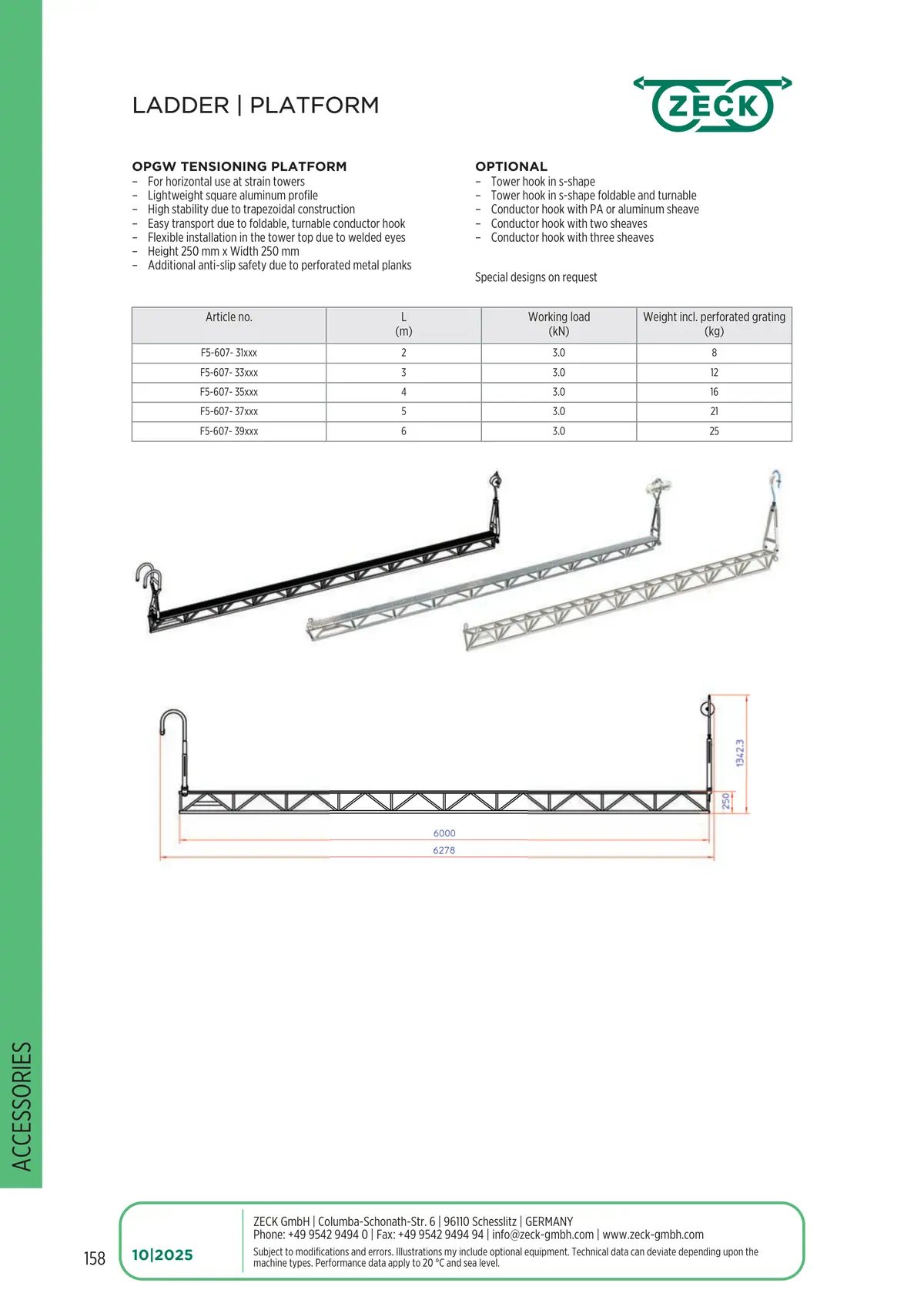

OPGW TENSIONING PLATFORM

• For horizontal use at strain towers
• Lightweight square aluminum profile
• High stability due to trapezoidal construction
• Easy transport due to foldable, turnable conductor hook
• Flexible installation in the tower top due to welded eyes
• Height 250 mm x Width 250 mm
• Additional anti-slip safety due to perforated metal planks

OPTIONAL

• Tower hook in s-shape
• Tower hook in s-shape foldable and turnable
• Conductor hook with PA or aluminum sheave
• Conductor hook with two sheaves
• Conductor hook with three sheaves

Special designs on request

Article no. F5-607- 31xxx

L (m): 2 · Working load (kN): 3.0 · Weight incl. perforated grating (kg): 8

Article no. F5-607- 33xxx

L (m): 3 · Working load (kN): 3.0 · Weight incl. perforated grating (kg): 12

Article no. F5-607- 35xxx

L (m): 4 · Working load (kN): 3.0 · Weight incl. perforated grating (kg): 16

Article no. F5-607- 37xxx

L (m): 5 · Working load (kN): 3.0 · Weight incl. perforated grating (kg): 21

Article no. F5-607- 39xxx

L (m): 6 · Working load (kN): 3.0 · Weight incl. perforated grating (kg): 25

www.zeck-gmbh.com

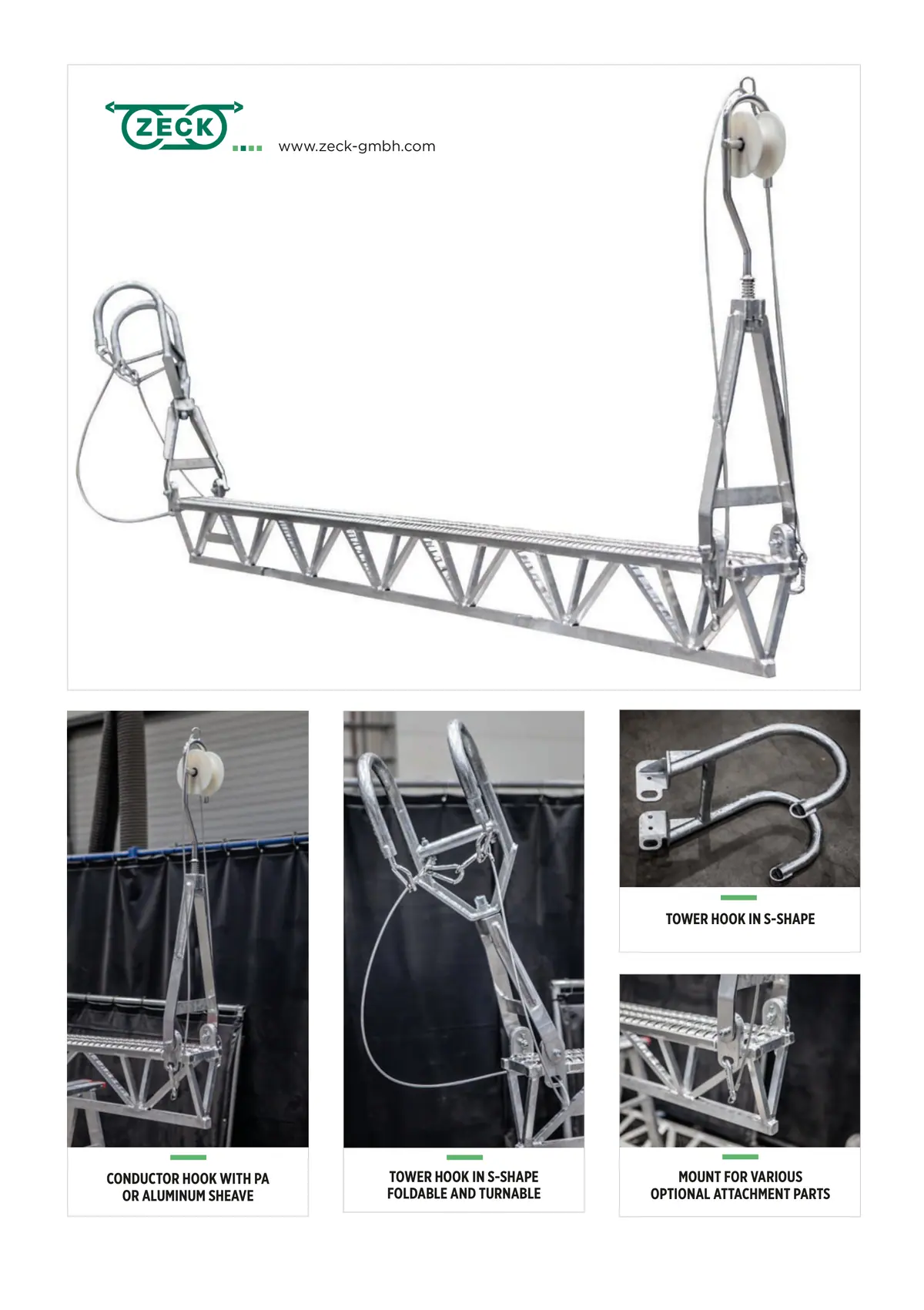

TOWER HOOK IN S-SHAPE

CONDUCTOR HOOK WITH PA OR ALUMINUM SHEAVE

TOWER HOOK IN S-SHAPE FOLDABLE AND TURNABLE

MOUNT FOR VARIOUS OPTIONAL ATTACHMENT PARTS

LADDER | PLATFORM

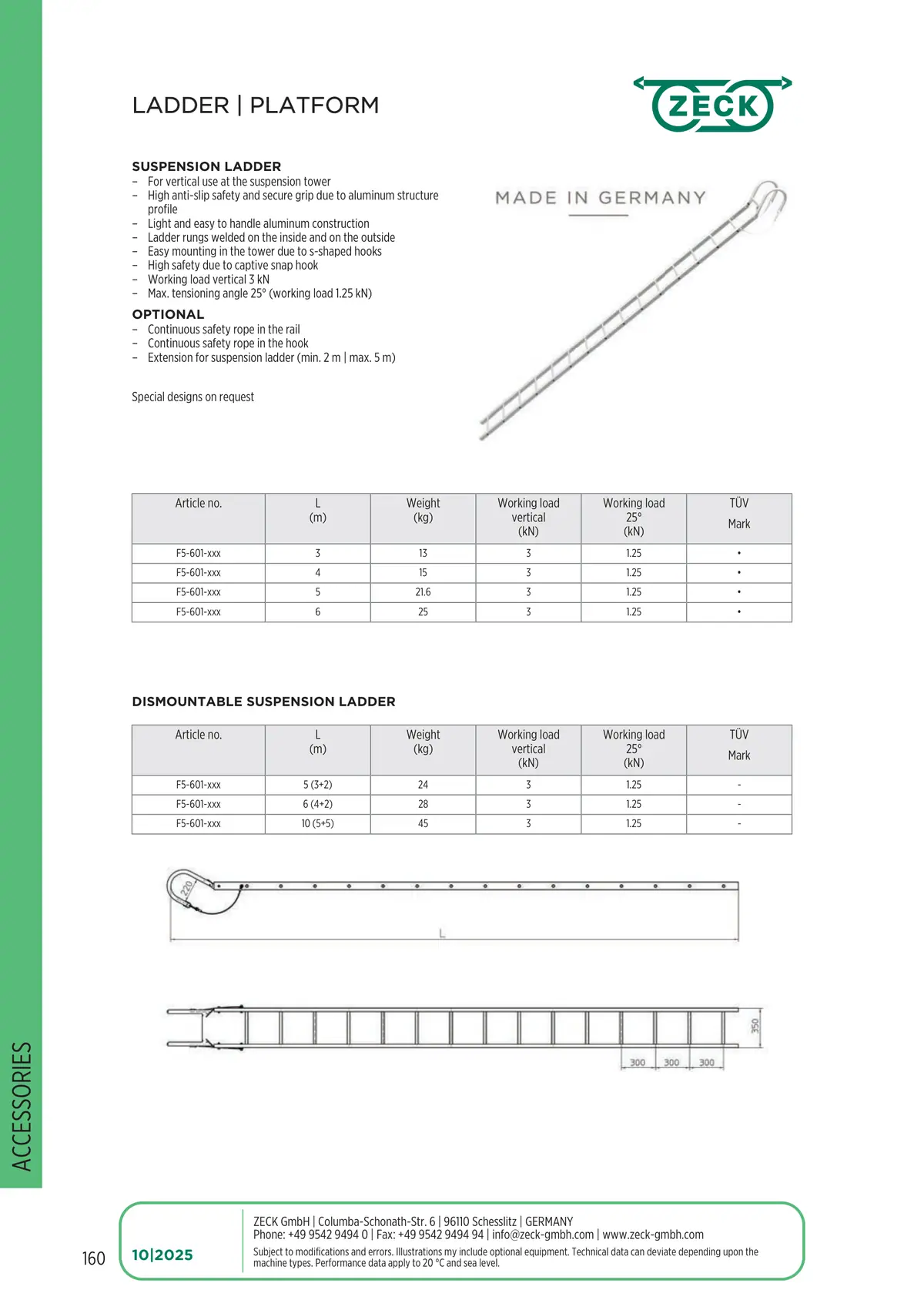

SUSPENSION LADDER

• For vertical use at the suspension tower
• High anti-slip safety and secure grip due to aluminum structure profile
• Light and easy to handle aluminum construction
• Ladder rungs welded on the inside and on the outside
• Easy mounting in the tower due to s-shaped hooks
• High safety due to captive snap hook
• Working load vertical 3 kN
• Max. tensioning angle 25° (working load 1.25 kN)

OPTIONAL

• Continuous safety rope in the rail
• Continuous safety rope in the hook
• Extension for suspension ladder (min. 2 m | max. 5 m)

Special designs on request

Article no. F5-601-xxx

L (m): 3 · Weight (kg): 13 · Working load vertical (kN): 3 · Working load 25° (kN): 1.25 · TÜV Mark: •

Article no. F5-601-xxx

L (m): 4 · Weight (kg): 15 · Working load vertical (kN): 3 · Working load 25° (kN): 1.25 · TÜV Mark: •

Article no. F5-601-xxx

L (m): 5 · Weight (kg): 21.6 · Working load vertical (kN): 3 · Working load 25° (kN): 1.25 · TÜV Mark: •

Article no. F5-601-xxx

L (m): 6 · Weight (kg): 25 · Working load vertical (kN): 3 · Working load 25° (kN): 1.25 · TÜV Mark: •

DISMOUNTABLE SUSPENSION LADDER

Article no. F5-601-xxx

L (m): 5 (3+2) · Weight (kg): 24 · Working load vertical (kN): 3 · Working load 25° (kN): 1.25 · TÜV Mark: -

Article no. F5-601-xxx

L (m): 6 (4+2) · Weight (kg): 28 · Working load vertical (kN): 3 · Working load 25° (kN): 1.25 · TÜV Mark: -

Article no. F5-601-xxx

L (m): 10 (5+5) · Weight (kg): 45 · Working load vertical (kN): 3 · Working load 25° (kN): 1.25 · TÜV Mark: -

LADDER | PLATFORM

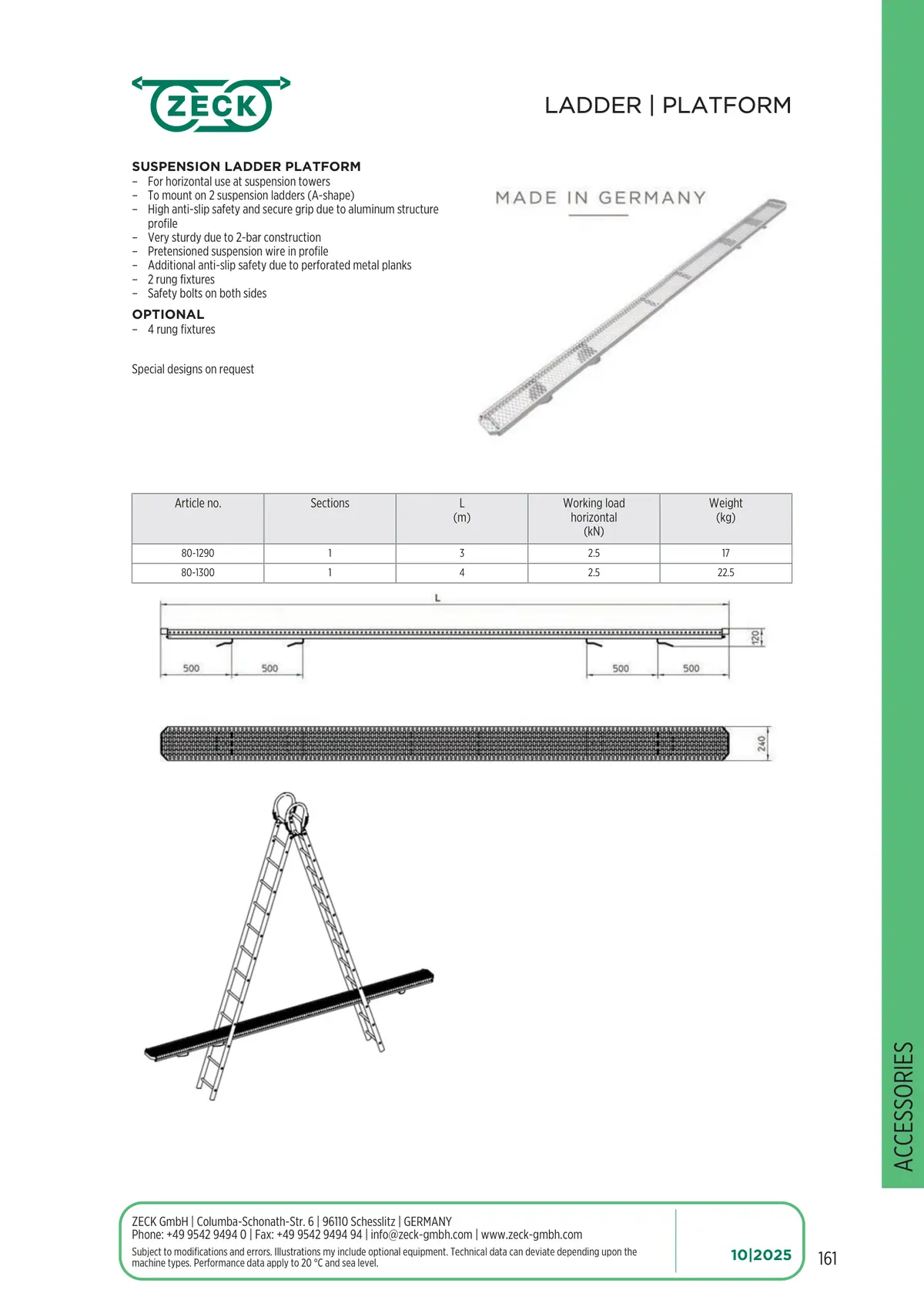

SUSPENSION LADDER PLATFORM

• For horizontal use at suspension towers
• To mount on 2 suspension ladders (A-shape)
• High anti-slip safety and secure grip due to aluminum structure profile
• Very sturdy due to 2-bar construction
• Pretensioned suspension wire in profile
• Additional anti-slip safety due to perforated metal planks
• 2 rung fixtures
• Safety bolts on both sides

OPTIONAL

• 4 rung fixtures

Special designs on request

Article no. 80-1290

Sections: 1 · L (m): 3 · Working load horizontal (kN): 2.5 · Weight (kg): 17

Article no. 80-1300

Sections: 1 · L (m): 4 · Working load horizontal (kN): 2.5 · Weight (kg): 22.5

LADDER | PLATFORM

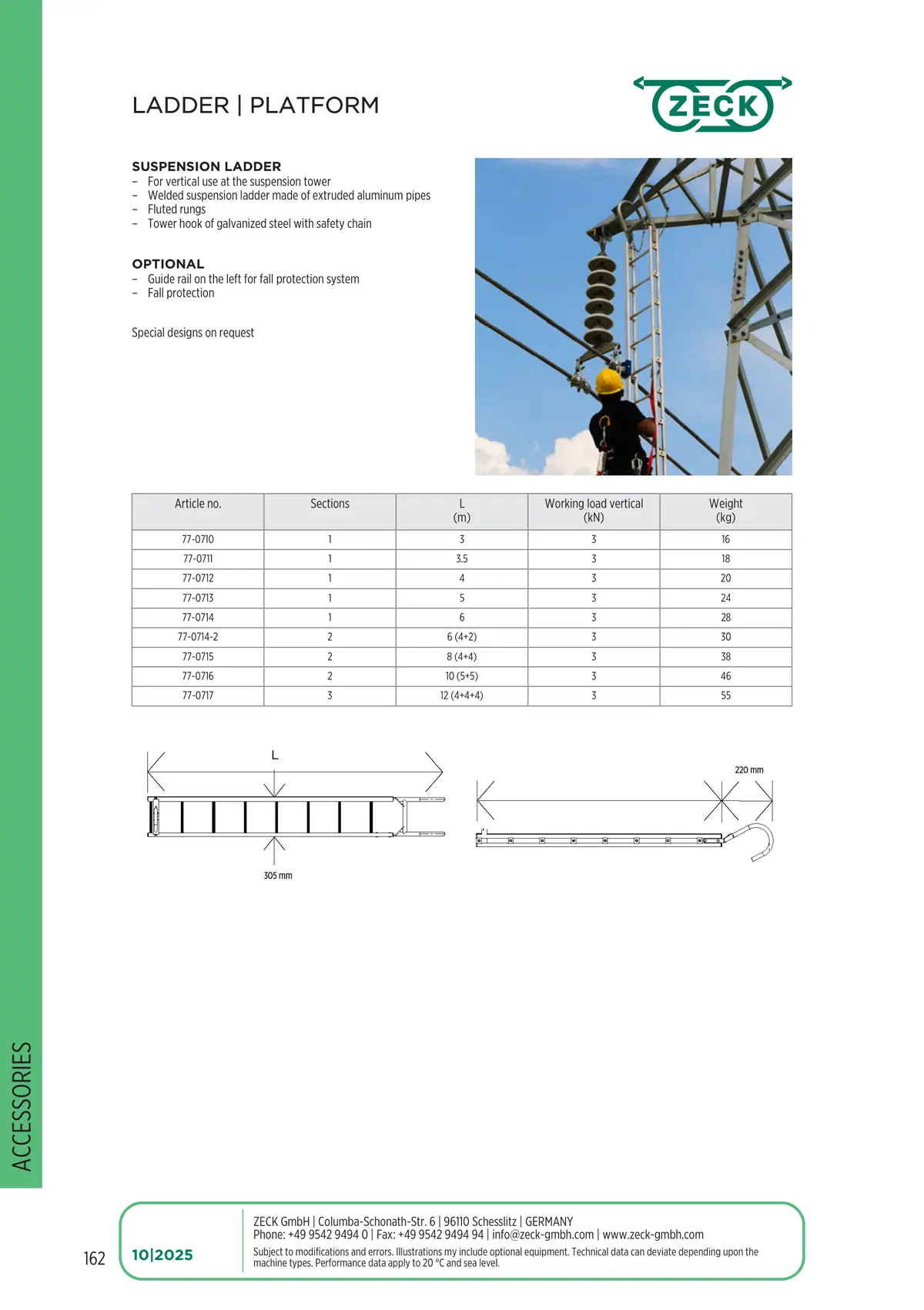

SUSPENSION LADDER

• For vertical use at the suspension tower
• Welded suspension ladder made of extruded aluminum pipes
• Fluted rungs
• Tower hook of galvanized steel with safety chain

OPTIONAL

• Guide rail on the left for fall protection system
• Fall protection

Special designs on request

Article no. 77-0710

Sections: 1 · L (m): 3 · Working load vertical (kN): 3 · Weight (kg): 16

Article no. 77-0711

Sections: 1 · L (m): 3.5 · Working load vertical (kN): 3 · Weight (kg): 18

Article no. 77-0712

Sections: 1 · L (m): 4 · Working load vertical (kN): 3 · Weight (kg): 20

Article no. 77-0713

Sections: 1 · L (m): 5 · Working load vertical (kN): 3 · Weight (kg): 24

Article no. 77-0714

Sections: 1 · L (m): 6 · Working load vertical (kN): 3 · Weight (kg): 28

Article no. 77-0714-2

Sections: 2 · L (m): 6 (4+2) · Working load vertical (kN): 3 · Weight (kg): 30

Article no. 77-0715

Sections: 2 · L (m): 8 (4+4) · Working load vertical (kN): 3 · Weight (kg): 38

Article no. 77-0716

Sections: 2 · L (m): 10 (5+5) · Working load vertical (kN): 3 · Weight (kg): 46

Article no. 77-0717

Sections: 3 · L (m): 12 (4+4+4) · Working load vertical (kN): 3 · Weight (kg): 55

LADDER | PLATFORM

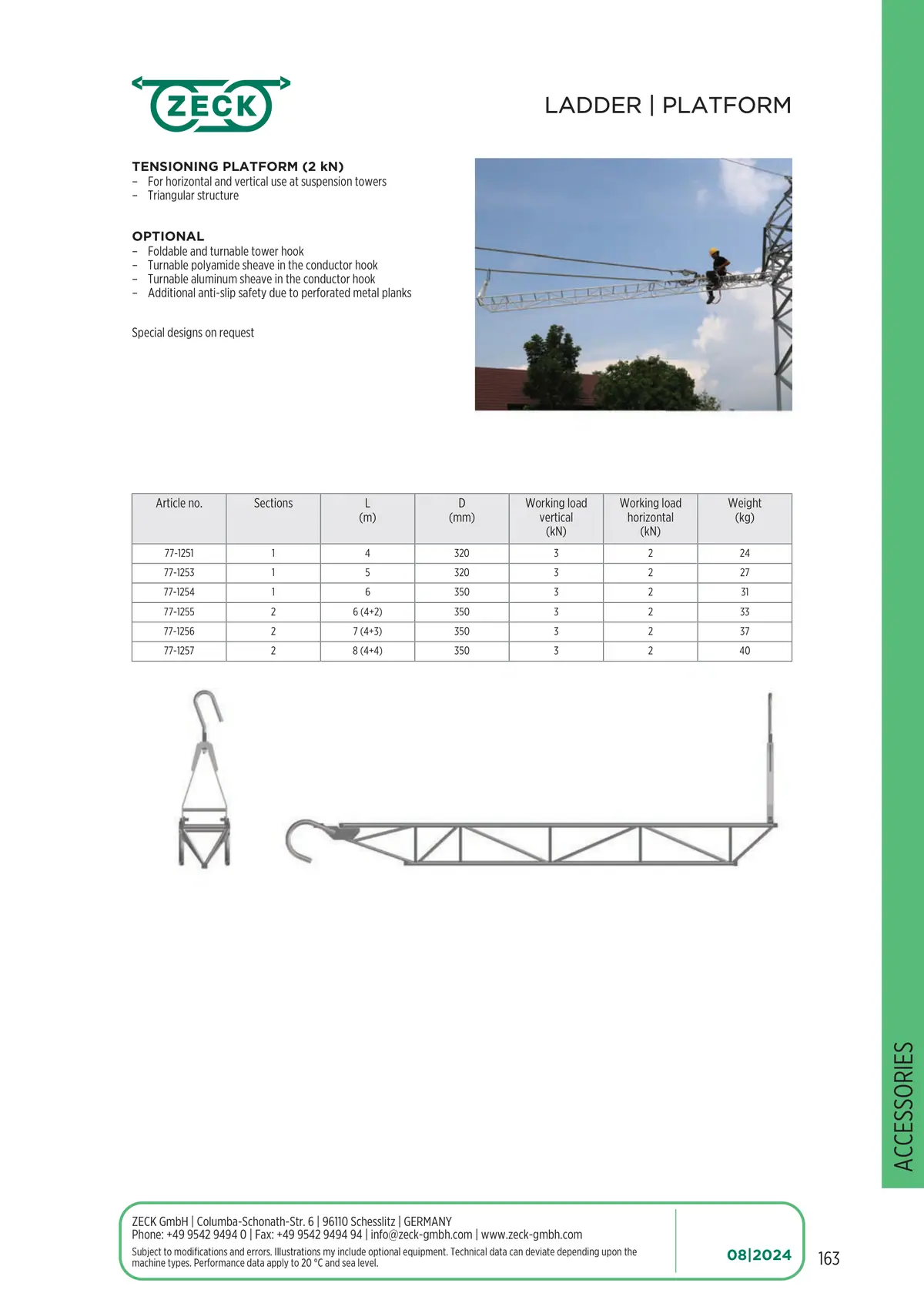

TENSIONING PLATFORM (2 kN)

• For horizontal and vertical use at suspension towers
• Triangular structure

OPTIONAL

• Foldable and turnable tower hook
• Turnable polyamide sheave in the conductor hook
• Turnable aluminum sheave in the conductor hook
• Additional anti-slip safety due to perforated metal planks

Special designs on request

Article no. 77-1251

Sections: 1 · L (m): 4 · D (mm): 320 · Working load vertical (kN): 3 · Working load horizontal (kN): 2 · Weight (kg): 24

Article no. 77-1253

Sections: 1 · L (m): 5 · D (mm): 320 · Working load vertical (kN): 3 · Working load horizontal (kN): 2 · Weight (kg): 27

Article no. 77-1254

Sections: 1 · L (m): 6 · D (mm): 350 · Working load vertical (kN): 3 · Working load horizontal (kN): 2 · Weight (kg): 31

Article no. 77-1255

Sections: 2 · L (m): 6 (4+2) · D (mm): 350 · Working load vertical (kN): 3 · Working load horizontal (kN): 2 · Weight (kg): 33

Article no. 77-1256

Sections: 2 · L (m): 7 (4+3) · D (mm): 350 · Working load vertical (kN): 3 · Working load horizontal (kN): 2 · Weight (kg): 37

Article no. 77-1257

Sections: 2 · L (m): 8 (4+4) · D (mm): 350 · Working load vertical (kN): 3 · Working load horizontal (kN): 2 · Weight (kg): 40

LADDER | PLATFORM

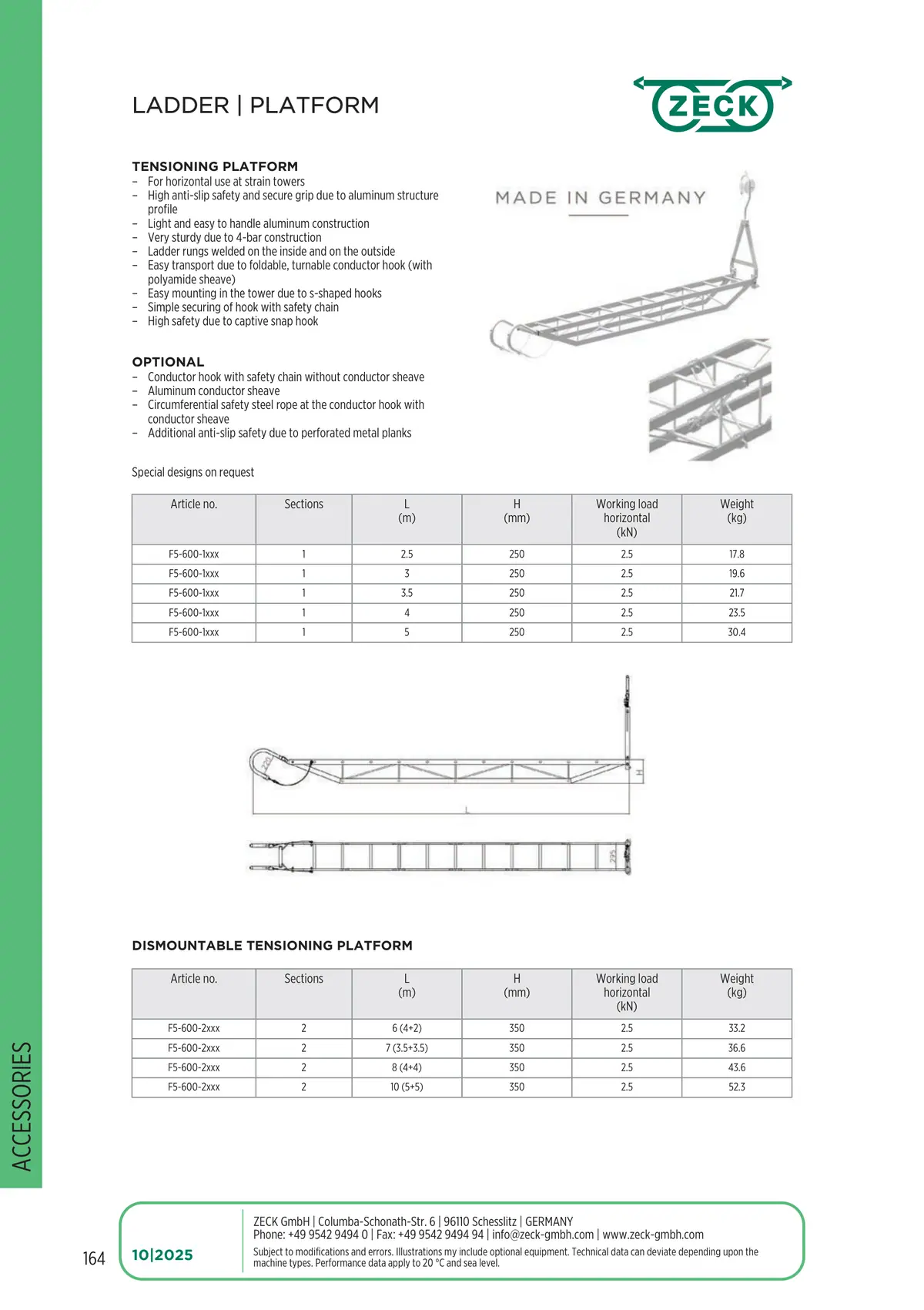

TENSIONING PLATFORM

• For horizontal use at strain towers
• High anti-slip safety and secure grip due to aluminum structure profile
• Light and easy to handle aluminum construction
• Very sturdy due to 4-bar construction
• Ladder rungs welded on the inside and on the outside
• Easy transport due to foldable, turnable conductor hook (with polyamide sheave)
• Easy mounting in the tower due to s-shaped hooks
• Simple securing of hook with safety chain
• High safety due to captive snap hook

OPTIONAL

• Conductor hook with safety chain without conductor sheave
• Aluminum conductor sheave
• Circumferential safety steel rope at the conductor hook with conductor sheave
• Additional anti-slip safety due to perforated metal planks

Special designs on request

Article no. F5-600-1xxx

Sections: 1 · L (m): 2.5 · H (mm): 250 · Working load horizontal (kN): 2.5 · Weight (kg): 17.8

Article no. F5-600-1xxx

Sections: 1 · L (m): 3 · H (mm): 250 · Working load horizontal (kN): 2.5 · Weight (kg): 19.6

Article no. F5-600-1xxx

Sections: 1 · L (m): 3.5 · H (mm): 250 · Working load horizontal (kN): 2.5 · Weight (kg): 21.7

Article no. F5-600-1xxx

Sections: 1 · L (m): 4 · H (mm): 250 · Working load horizontal (kN): 2.5 · Weight (kg): 23.5

Article no. F5-600-1xxx

Sections: 1 · L (m): 5 · H (mm): 250 · Working load horizontal (kN): 2.5 · Weight (kg): 30.4

DISMOUNTABLE TENSIONING PLATFORM

Article no. F5-600-2xxx

Sections: 2 · L (m): 6 (4+2) · H (mm): 350 · Working load horizontal (kN): 2.5 · Weight (kg): 33.2

Article no. F5-600-2xxx

Sections: 2 · L (m): 7 (3.5+3.5) · H (mm): 350 · Working load horizontal (kN): 2.5 · Weight (kg): 36.6

Article no. F5-600-2xxx

Sections: 2 · L (m): 8 (4+4) · H (mm): 350 · Working load horizontal (kN): 2.5 · Weight (kg): 43.6

Article no. F5-600-2xxx

Sections: 2 · L (m): 10 (5+5) · H (mm): 350 · Working load horizontal (kN): 2.5 · Weight (kg): 52.3

LADDER | PLATFORM

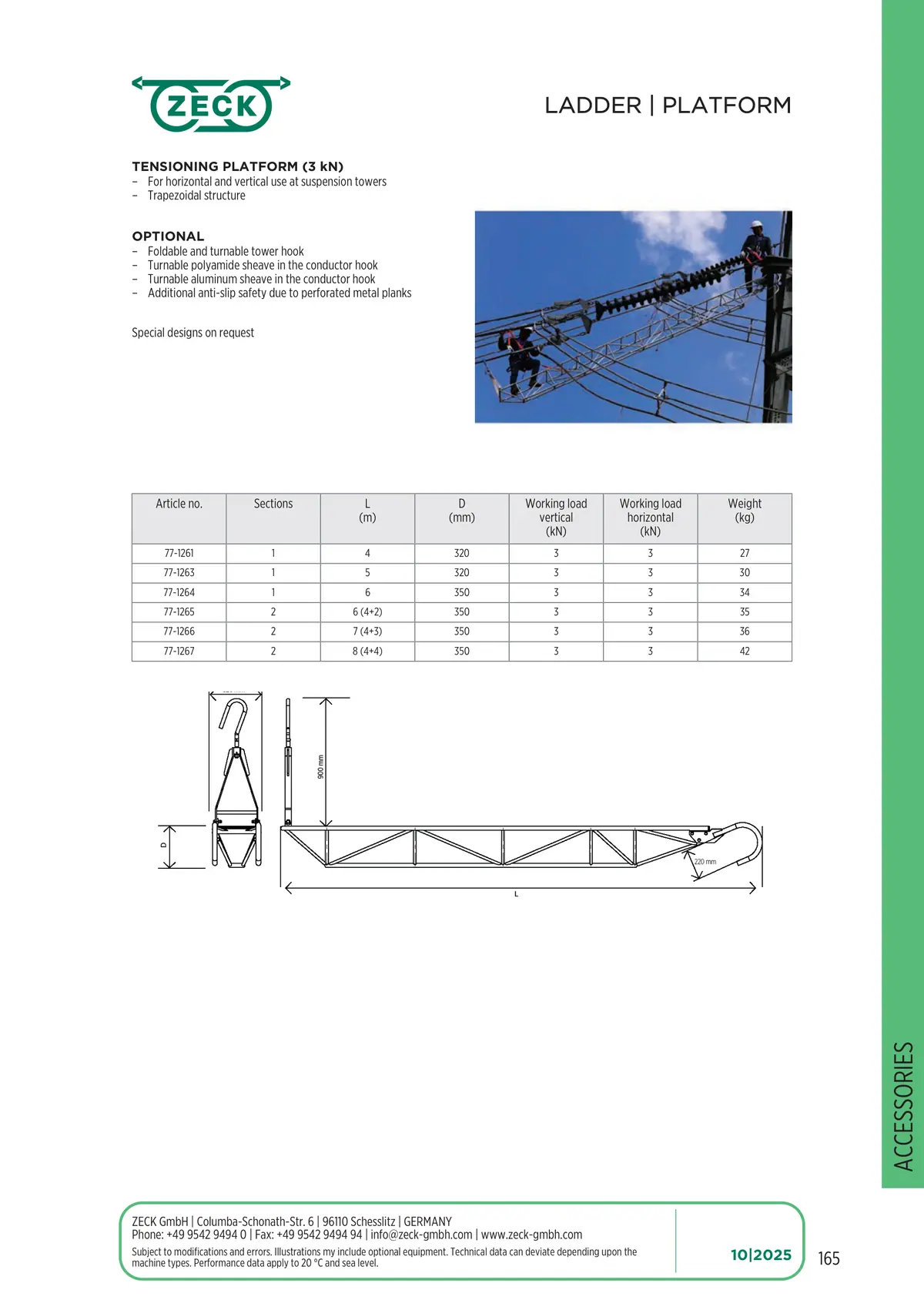

TENSIONING PLATFORM (3 kN)

• For horizontal and vertical use at suspension towers
• Trapezoidal structure

OPTIONAL

• Foldable and turnable tower hook
• Turnable polyamide sheave in the conductor hook
• Turnable aluminum sheave in the conductor hook
• Additional anti-slip safety due to perforated metal planks

Special designs on request

Article no. 77-1261

Sections: 1 · L (m): 4 · D (mm): 320 · Working load vertical (kN): 3 · Working load horizontal (kN): 3 · Weight (kg): 27

Article no. 77-1263

Sections: 1 · L (m): 5 · D (mm): 320 · Working load vertical (kN): 3 · Working load horizontal (kN): 3 · Weight (kg): 30

Article no. 77-1264

Sections: 1 · L (m): 6 · D (mm): 350 · Working load vertical (kN): 3 · Working load horizontal (kN): 3 · Weight (kg): 34

Article no. 77-1265

Sections: 2 · L (m): 6 (4+2) · D (mm): 350 · Working load vertical (kN): 3 · Working load horizontal (kN): 3 · Weight (kg): 35

Article no. 77-1266

Sections: 2 · L (m): 7 (4+3) · D (mm): 350 · Working load vertical (kN): 3 · Working load horizontal (kN): 3 · Weight (kg): 36

Article no. 77-1267

Sections: 2 · L (m): 8 (4+4) · D (mm): 350 · Working load vertical (kN): 3 · Working load horizontal (kN): 3 · Weight (kg): 42

LADDER | PLATFORM

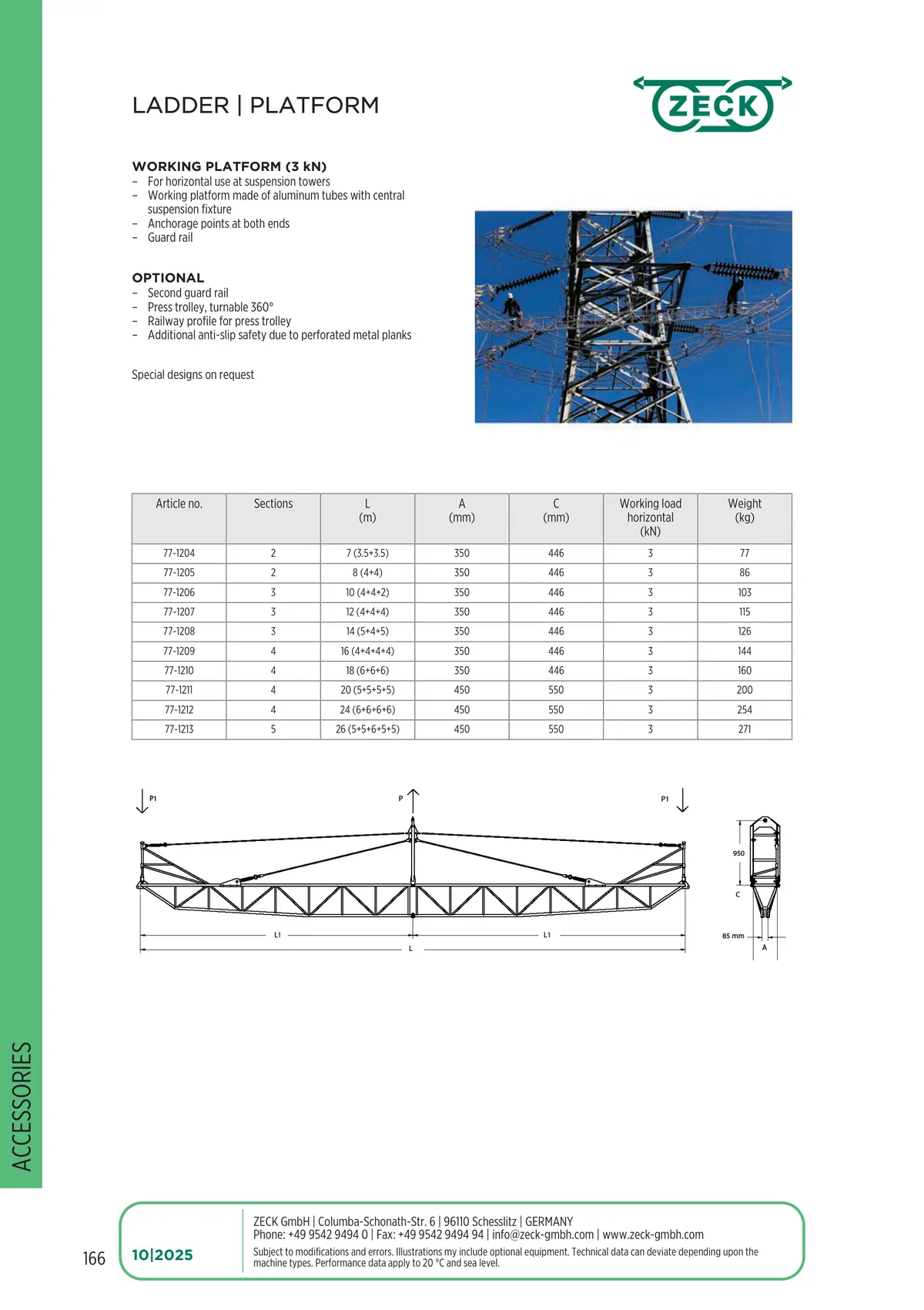

WORKING PLATFORM (3 kN)

• For horizontal use at suspension towers
• Working platform made of aluminum tubes with central suspension fixture
• Anchorage points at both ends
• Guard rail

OPTIONAL

• Second guard rail
• Press trolley, turnable 360°
• Railway profile for press trolley
• Additional anti-slip safety due to perforated metal planks

Special designs on request

Article no. 77-1204

Sections: 2 · L (m): 7 (3.5+3.5) · A (mm): 350 · C (mm): 446 · Working load horizontal (kN): 3 · Weight (kg): 77

Article no. 77-1205

Sections: 2 · L (m): 8 (4+4) · A (mm): 350 · C (mm): 446 · Working load horizontal (kN): 3 · Weight (kg): 86

Article no. 77-1206

Sections: 3 · L (m): 10 (4+4+2) · A (mm): 350 · C (mm): 446 · Working load horizontal (kN): 3 · Weight (kg): 103

Article no. 77-1207

Sections: 3 · L (m): 12 (4+4+4) · A (mm): 350 · C (mm): 446 · Working load horizontal (kN): 3 · Weight (kg): 115

Article no. 77-1208

Sections: 3 · L (m): 14 (5+4+5) · A (mm): 350 · C (mm): 446 · Working load horizontal (kN): 3 · Weight (kg): 126

Article no. 77-1209

Sections: 4 · L (m): 16 (4+4+4+4) · A (mm): 350 · C (mm): 446 · Working load horizontal (kN): 3 · Weight (kg): 144

Article no. 77-1210

Sections: 4 · L (m): 18 (6+6+6) · A (mm): 350 · C (mm): 446 · Working load horizontal (kN): 3 · Weight (kg): 160

Article no. 77-1211

Sections: 4 · L (m): 20 (5+5+5+5) · A (mm): 450 · C (mm): 550 · Working load horizontal (kN): 3 · Weight (kg): 200

Article no. 77-1212

Sections: 4 · L (m): 24 (6+6+6+6) · A (mm): 450 · C (mm): 550 · Working load horizontal (kN): 3 · Weight (kg): 254

Article no. 77-1213

Sections: 5 · L (m): 26 (5+5+6+5+5) · A (mm): 450 · C (mm): 550 · Working load horizontal (kN): 3 · Weight (kg): 271

LADDER | PLATFORM

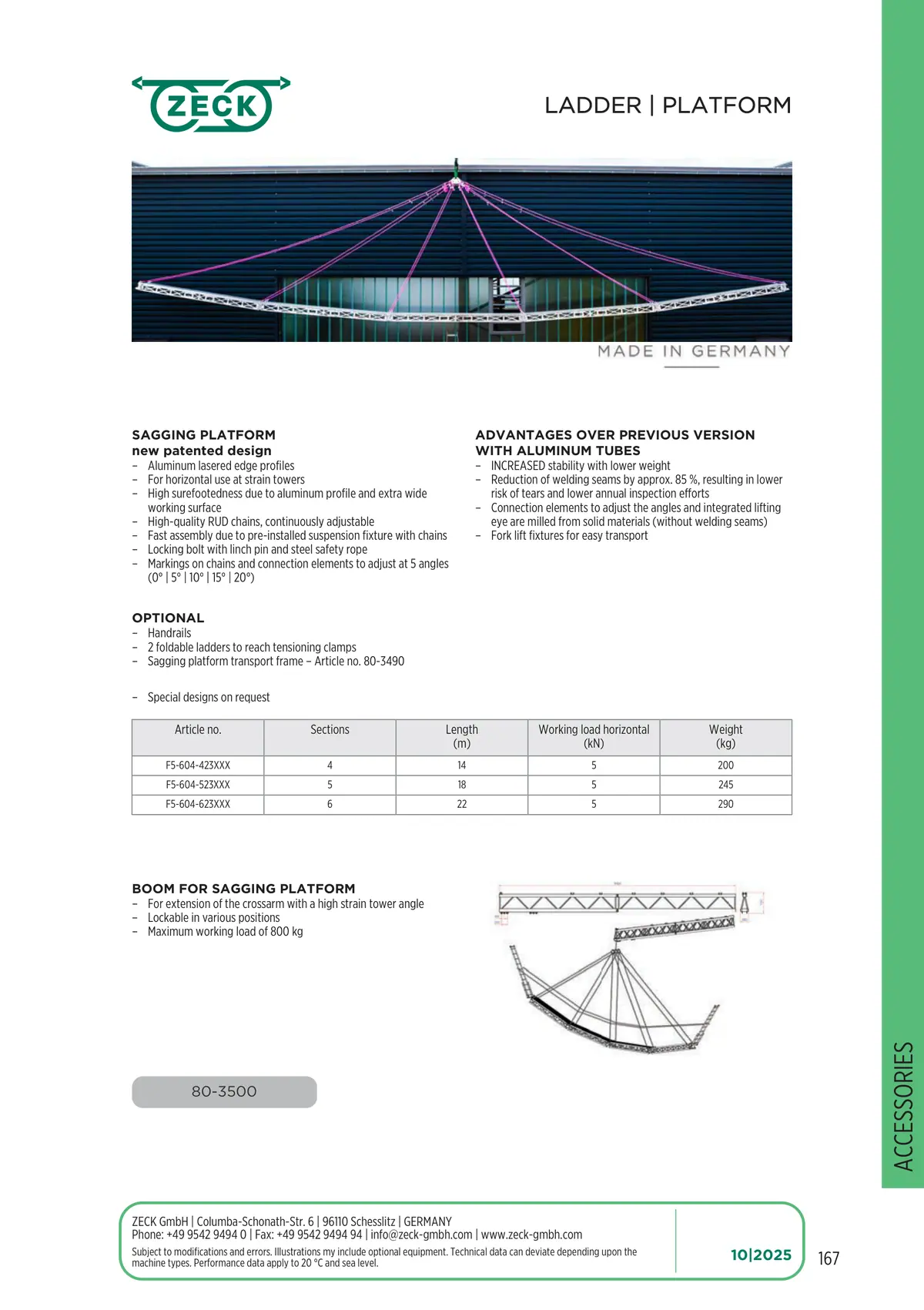

SAGGING PLATFORM new patented design

• Aluminum lasered edge profiles
• For horizontal use at strain towers
• High surefootedness due to aluminum profile and extra wide working surface
• High-quality RUD chains, continuously adjustable
• Fast assembly due to pre-installed suspension fixture with chains
• Locking bolt with linch pin and steel safety rope
• Markings on chains and connection elements to adjust at 5 angles (0° | 5° | 10° | 15° | 20°)

ADVANTAGES OVER PREVIOUS VERSION WITH ALUMINUM TUBES

• INCREASED stability with lower weight
• Reduction of welding seams by approx. 85 %, resulting in lower risk of tears and lower annual inspection efforts
• Connection elements to adjust the angles and integrated lifting eye are milled from solid materials (without welding seams)
• Fork lift fixtures for easy transport

OPTIONAL

• Handrails
• 2 foldable ladders to reach tensioning clamps
• Sagging platform transport frame – Article no. 80-3490
• Special designs on request

Article no. F5-604-423XXX

Sections: 4 · Length (m): 14 · Working load horizontal (kN): 5 · Weight (kg): 200

Article no. F5-604-523XXX

Sections: 5 · Length (m): 18 · Working load horizontal (kN): 5 · Weight (kg): 245

Article no. F5-604-623XXX

Sections: 6 · Length (m): 22 · Working load horizontal (kN): 5 · Weight (kg): 290

BOOM FOR SAGGING PLATFORM

• For extension of the crossarm with a high strain tower angle
• Lockable in various positions
• Maximum working load of 800 kg

80-3500
