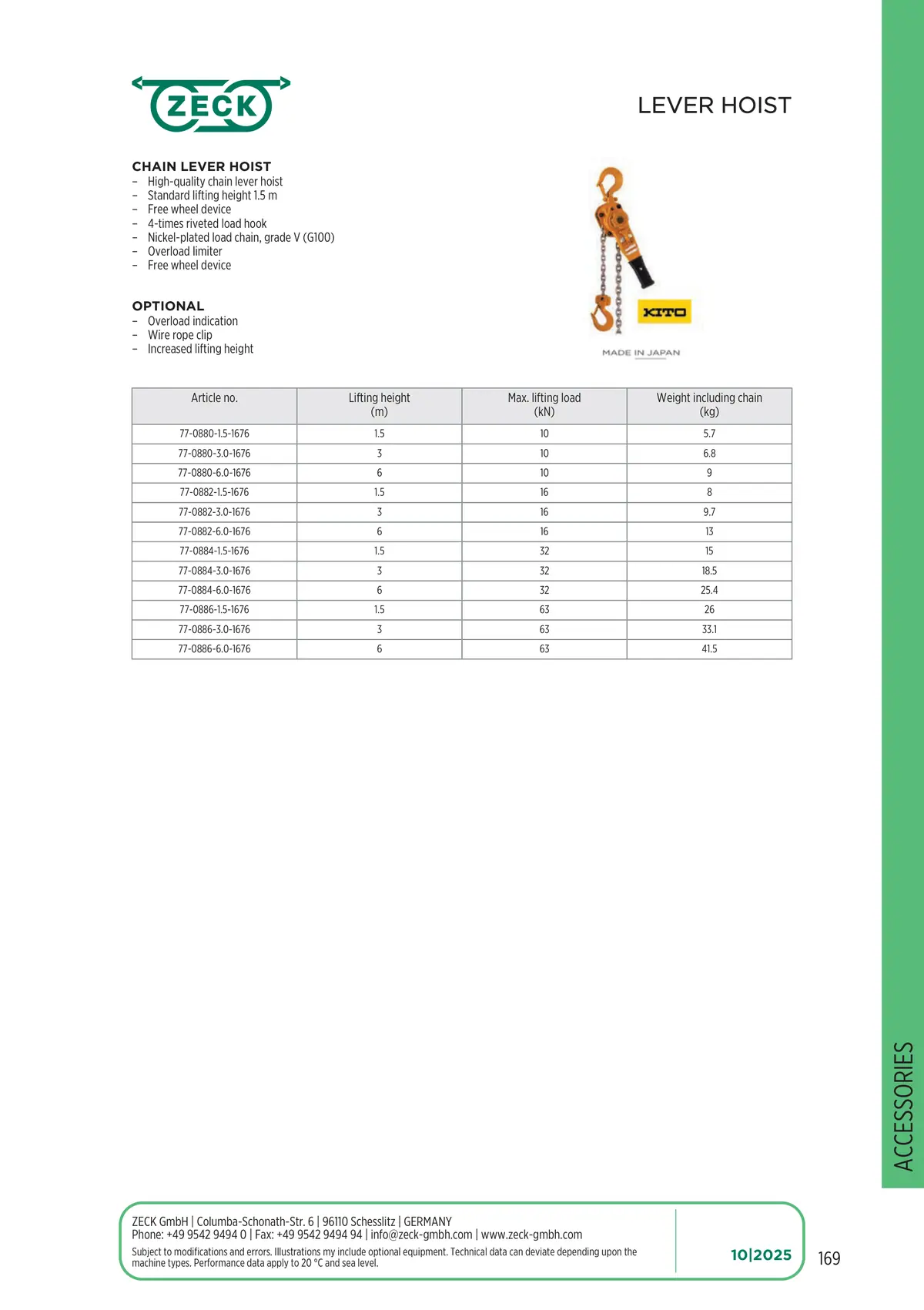

LEVER HOIST
CHAIN LEVER HOIST
- High-quality chain lever hoist
- Standard lifting height 1.5 m
- Free wheel device
- 4-times riveted load hook
- Nickel-plated load chain, grade V (G100)
- Overload limiter
- Free wheel device
OPTIONAL
- Overload indication
- Wire rope clip
- Increased lifting height
- Article no. 77-0880-1.5-1676
- Lifting height (m): 1.5 · Max. lifting load (kN): 10 · Weight including chain (kg): 5.7
- Article no. 77-0880-3.0-1676
- Lifting height (m): 3 · Max. lifting load (kN): 10 · Weight including chain (kg): 6.8
- Article no. 77-0880-6.0-1676
- Lifting height (m): 6 · Max. lifting load (kN): 10 · Weight including chain (kg): 9
- Article no. 77-0882-1.5-1676
- Lifting height (m): 1.5 · Max. lifting load (kN): 16 · Weight including chain (kg): 8
- Article no. 77-0882-3.0-1676
- Lifting height (m): 3 · Max. lifting load (kN): 16 · Weight including chain (kg): 9.7
- Article no. 77-0882-6.0-1676
- Lifting height (m): 6 · Max. lifting load (kN): 16 · Weight including chain (kg): 13
- Article no. 77-0884-1.5-1676
- Lifting height (m): 1.5 · Max. lifting load (kN): 32 · Weight including chain (kg): 15
- Article no. 77-0884-3.0-1676
- Lifting height (m): 3 · Max. lifting load (kN): 32 · Weight including chain (kg): 18.5
- Article no. 77-0884-6.0-1676
- Lifting height (m): 6 · Max. lifting load (kN): 32 · Weight including chain (kg): 25.4
- Article no. 77-0886-1.5-1676
- Lifting height (m): 1.5 · Max. lifting load (kN): 63 · Weight including chain (kg): 26
- Article no. 77-0886-3.0-1676
- Lifting height (m): 3 · Max. lifting load (kN): 63 · Weight including chain (kg): 33.1
- Article no. 77-0886-6.0-1676
- Lifting height (m): 6 · Max. lifting load (kN): 63 · Weight including chain (kg): 41.5

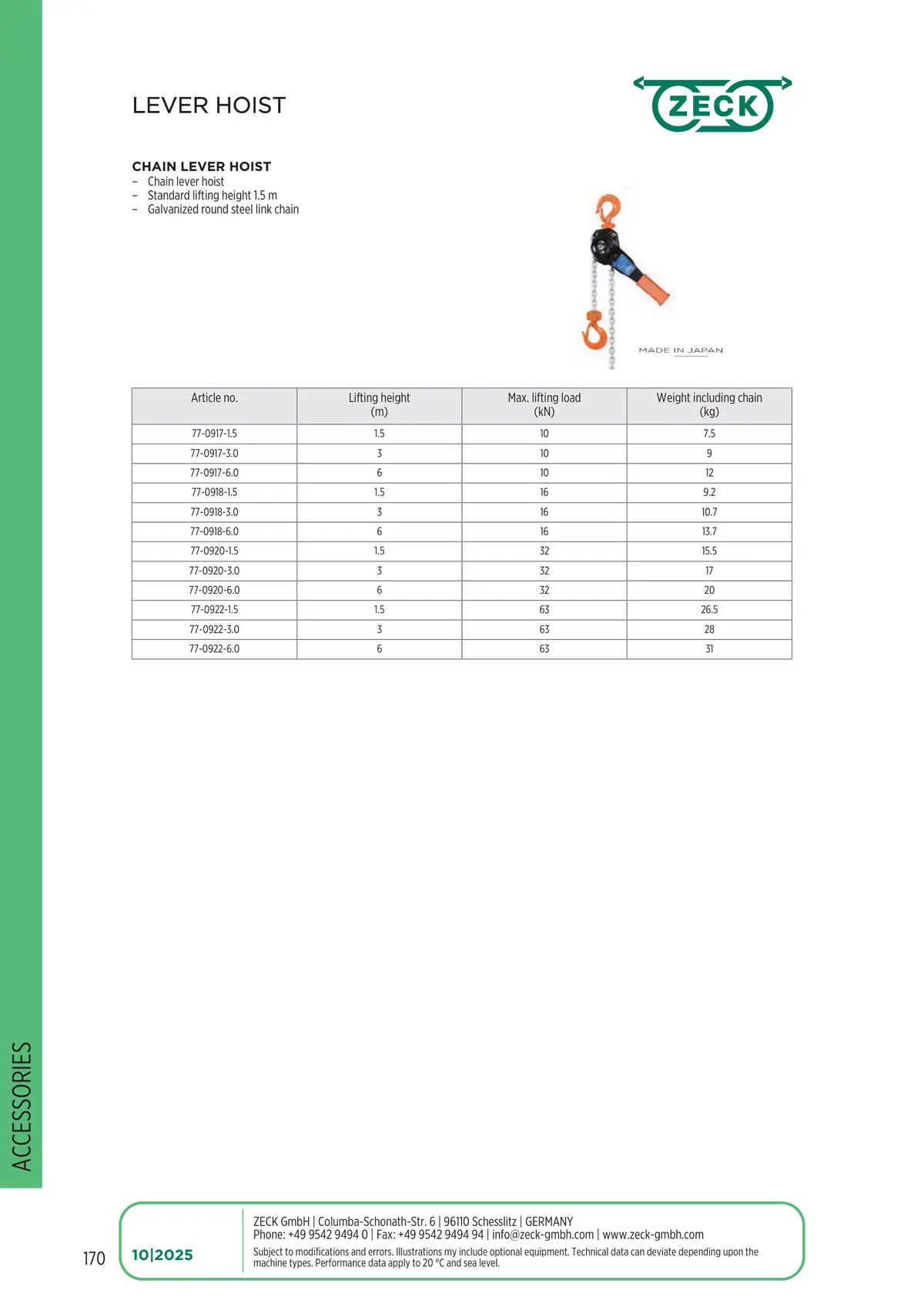

LEVER HOIST
CHAIN LEVER HOIST
- Chain lever hoist
- Standard lifting height 1.5 m
- Galvanized round steel link chain
- Article no. 77-0917-1.5
- Lifting height (m): 1.5 · Max. lifting load (kN): 10 · Weight including chain (kg): 7.5
- Article no. 77-0917-3.0
- Lifting height (m): 3 · Max. lifting load (kN): 10 · Weight including chain (kg): 9
- Article no. 77-0917-6.0
- Lifting height (m): 6 · Max. lifting load (kN): 10 · Weight including chain (kg): 12
- Article no. 77-0918-1.5
- Lifting height (m): 1.5 · Max. lifting load (kN): 16 · Weight including chain (kg): 9.2
- Article no. 77-0918-3.0
- Lifting height (m): 3 · Max. lifting load (kN): 16 · Weight including chain (kg): 10.7
- Article no. 77-0918-6.0
- Lifting height (m): 6 · Max. lifting load (kN): 16 · Weight including chain (kg): 13.7
- Article no. 77-0920-1.5
- Lifting height (m): 1.5 · Max. lifting load (kN): 32 · Weight including chain (kg): 15.5
- Article no. 77-0920-3.0
- Lifting height (m): 3 · Max. lifting load (kN): 32 · Weight including chain (kg): 17
- Article no. 77-0920-6.0
- Lifting height (m): 6 · Max. lifting load (kN): 32 · Weight including chain (kg): 20
- Article no. 77-0922-1.5
- Lifting height (m): 1.5 · Max. lifting load (kN): 63 · Weight including chain (kg): 26.5
- Article no. 77-0922-3.0
- Lifting height (m): 3 · Max. lifting load (kN): 63 · Weight including chain (kg): 28
- Article no. 77-0922-6.0
- Lifting height (m): 6 · Max. lifting load (kN): 63 · Weight including chain (kg): 31

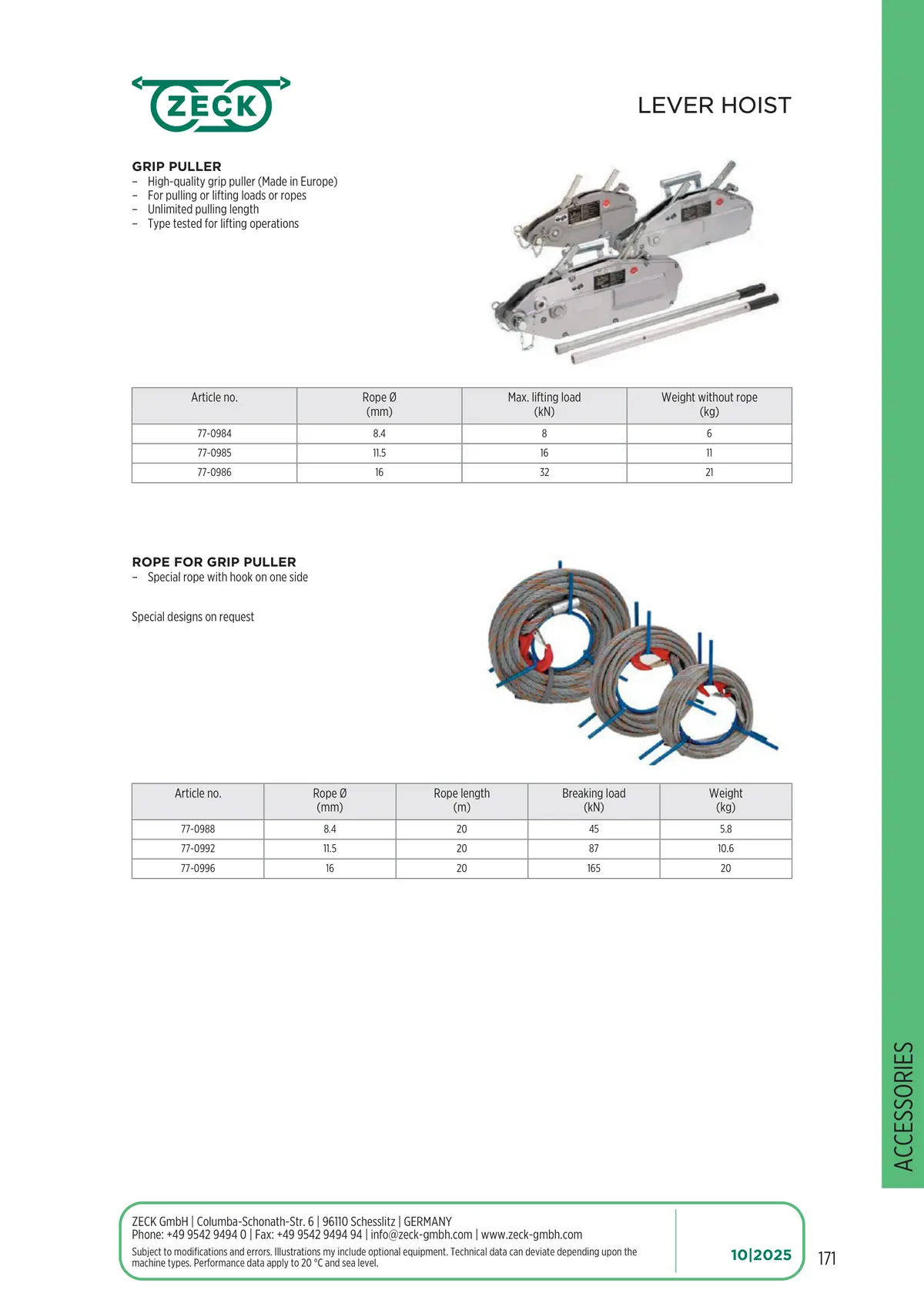

LEVER HOIST
GRIP PULLER
- High-quality grip puller (Made in Europe)
- For pulling or lifting loads or ropes
- Unlimited pulling length
- Type tested for lifting operations
- Article no. 77-0984
- Rope Ø (mm): 8.4 · Max. lifting load (kN): 8 · Weight without rope (kg): 6
- Article no. 77-0985
- Rope Ø (mm): 11.5 · Max. lifting load (kN): 16 · Weight without rope (kg): 11
- Article no. 77-0986
- Rope Ø (mm): 16 · Max. lifting load (kN): 32 · Weight without rope (kg): 21
ROPE FOR GRIP PULLER
- Special rope with hook on one side
Special designs on request
- Article no. 77-0988
- Rope Ø (mm): 8.4 · Rope length (m): 20 · Breaking load (kN): 45 · Weight (kg): 5.8
- Article no. 77-0992
- Rope Ø (mm): 11.5 · Rope length (m): 20 · Breaking load (kN): 87 · Weight (kg): 10.6
- Article no. 77-0996
- Rope Ø (mm): 16 · Rope length (m): 20 · Breaking load (kN): 165 · Weight (kg): 20

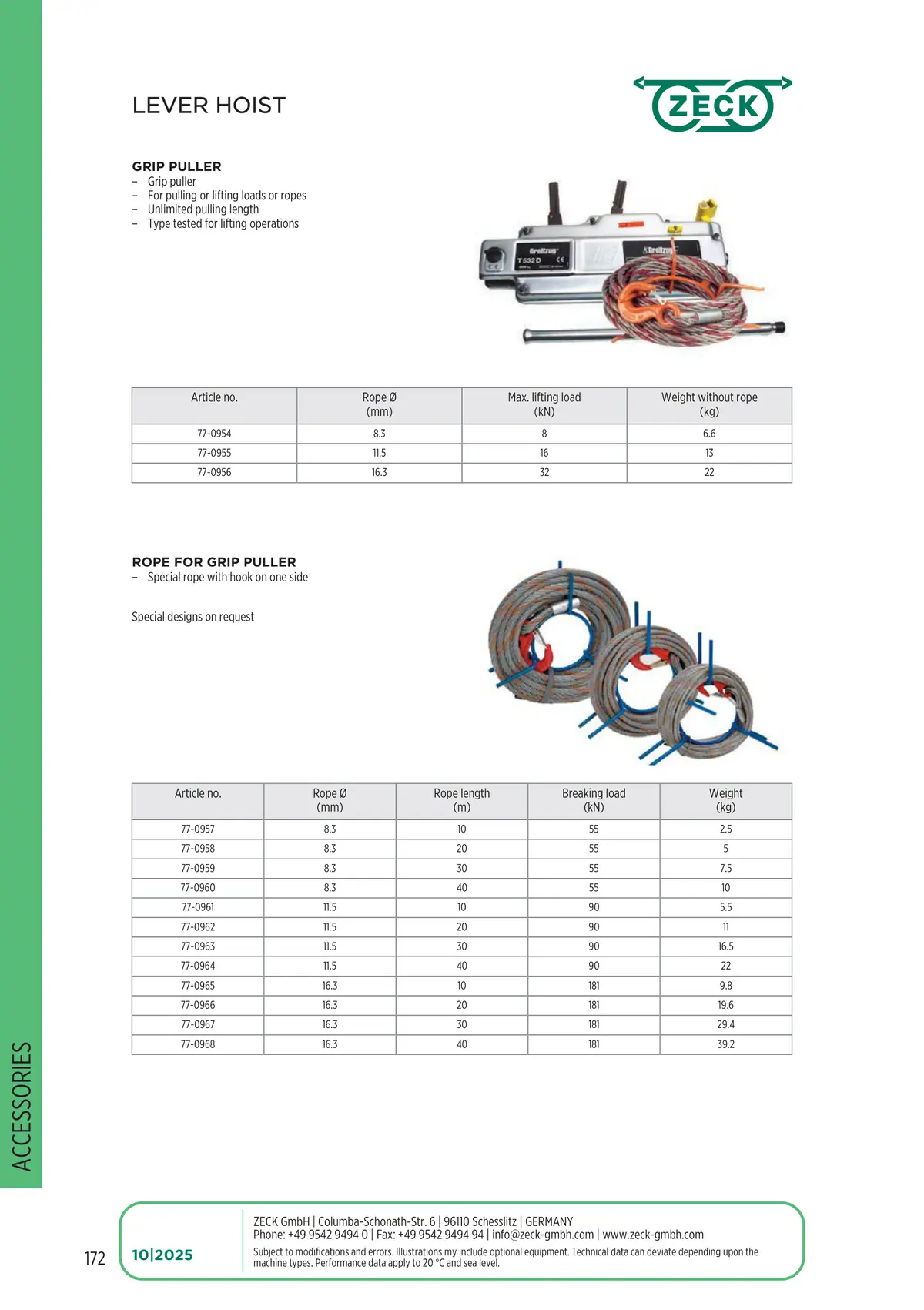

LEVER HOIST
GRIP PULLER
- Grip puller
- For pulling or lifting loads or ropes
- Unlimited pulling length
- Type tested for lifting operations
- Article no. 77-0954
- Rope Ø (mm): 8.3 · Max. lifting load (kN): 8 · Weight without rope (kg): 6.6
- Article no. 77-0955
- Rope Ø (mm): 11.5 · Max. lifting load (kN): 16 · Weight without rope (kg): 13
- Article no. 77-0956
- Rope Ø (mm): 16.3 · Max. lifting load (kN): 32 · Weight without rope (kg): 22
ROPE FOR GRIP PULLER
- Special rope with hook on one side
Special designs on request
- Article no. 77-0957
- Rope Ø (mm): 8.3 · Rope length (m): 10 · Breaking load (kN): 55 · Weight (kg): 2.5
- Article no. 77-0958
- Rope Ø (mm): 8.3 · Rope length (m): 20 · Breaking load (kN): 55 · Weight (kg): 5
- Article no. 77-0959
- Rope Ø (mm): 8.3 · Rope length (m): 30 · Breaking load (kN): 55 · Weight (kg): 7.5
- Article no. 77-0960
- Rope Ø (mm): 8.3 · Rope length (m): 40 · Breaking load (kN): 55 · Weight (kg): 10
- Article no. 77-0961
- Rope Ø (mm): 11.5 · Rope length (m): 10 · Breaking load (kN): 90 · Weight (kg): 5.5
- Article no. 77-0962
- Rope Ø (mm): 11.5 · Rope length (m): 20 · Breaking load (kN): 90 · Weight (kg): 11
- Article no. 77-0963
- Rope Ø (mm): 11.5 · Rope length (m): 30 · Breaking load (kN): 90 · Weight (kg): 16.5
- Article no. 77-0964
- Rope Ø (mm): 11.5 · Rope length (m): 40 · Breaking load (kN): 90 · Weight (kg): 22
- Article no. 77-0965
- Rope Ø (mm): 16.3 · Rope length (m): 10 · Breaking load (kN): 181 · Weight (kg): 9.8
- Article no. 77-0966
- Rope Ø (mm): 16.3 · Rope length (m): 20 · Breaking load (kN): 181 · Weight (kg): 19.6
- Article no. 77-0967
- Rope Ø (mm): 16.3 · Rope length (m): 30 · Breaking load (kN): 181 · Weight (kg): 29.4
- Article no. 77-0968
- Rope Ø (mm): 16.3 · Rope length (m): 40 · Breaking load (kN): 181 · Weight (kg): 39.2
