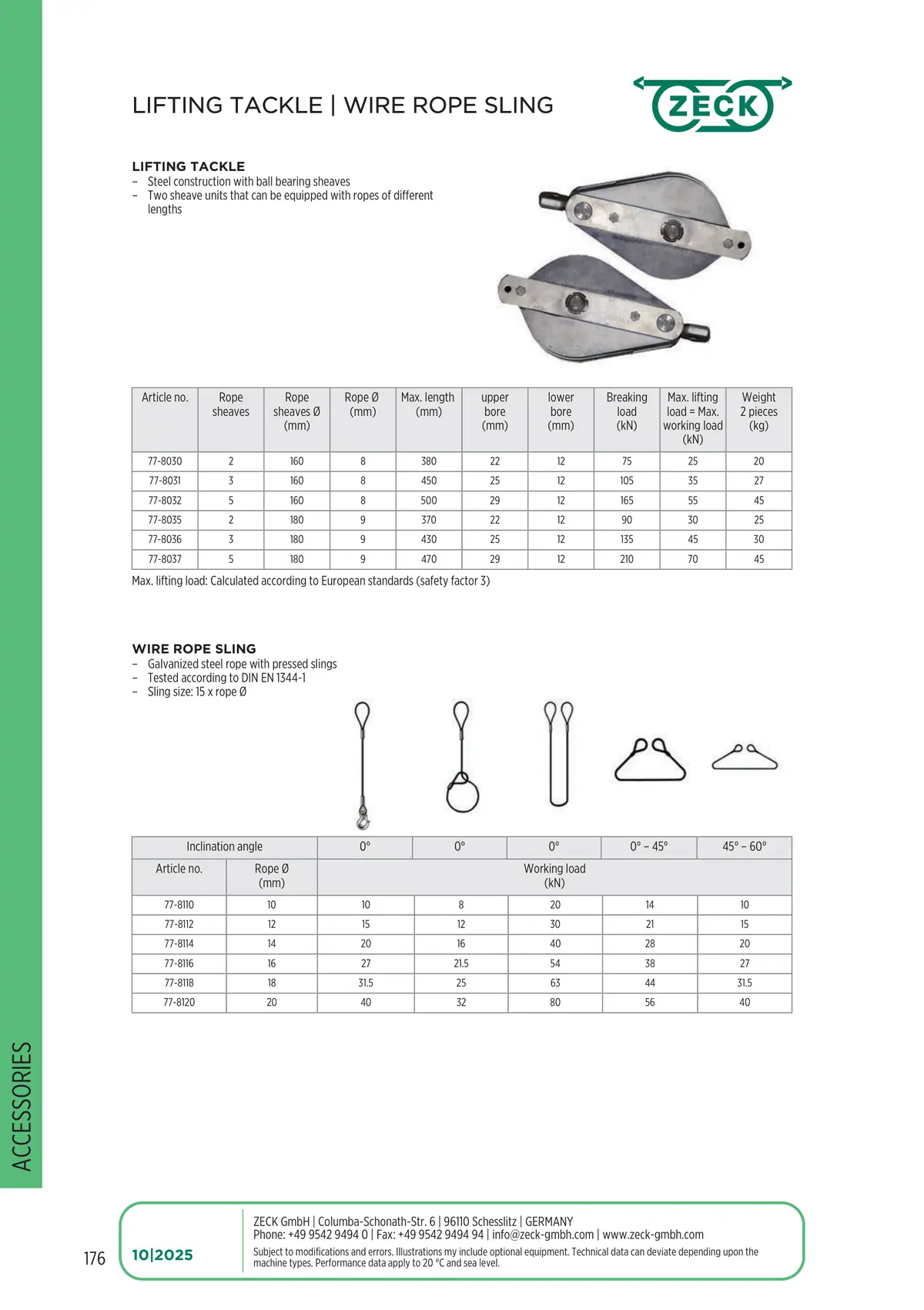

LIFTING TACKLE | WIRE ROPE SLING
LIFTING TACKLE
- Steel construction with ball bearing sheaves
- Two sheave units that can be equipped with ropes of different lengths
| Article no. | Rope sheaves | Rope sheaves Ø (mm) | Rope Ø (mm) | Max. length (mm) | upper bore (mm) | lower bore (mm) | Breaking load (kN) | Max. lifting load = Max. working load (kN) | Weight 2 pieces (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 77-8030 | 2 | 160 | 8 | 380 | 22 | 12 | 75 | 25 | 20 |
| 77-8031 | 3 | 160 | 8 | 450 | 25 | 12 | 105 | 35 | 27 |
| 77-8032 | 5 | 160 | 8 | 500 | 29 | 12 | 165 | 55 | 45 |
| 77-8035 | 2 | 180 | 9 | 370 | 22 | 12 | 90 | 30 | 25 |
| 77-8036 | 3 | 180 | 9 | 430 | 25 | 12 | 135 | 45 | 30 |
| 77-8037 | 5 | 180 | 9 | 470 | 29 | 12 | 210 | 70 | 45 |
Max. lifting load: Calculated according to European standards (safety factor 3)
WIRE ROPE SLING
- Galvanized steel rope with pressed slings
- Tested according to DIN EN 1344-1
- Sling size: 15 x rope Ø
| Inclination angle | 0° | 0° – 45° | 45° – 60° | |
|---|---|---|---|---|
| Inclination angle Article no. | Rope Ø (mm) | Working load (kN) | – | – |
| Inclination angle 77-8110 | 10 | 20 | 14 | 10 |
| Inclination angle 77-8112 | 12 | 30 | 21 | 15 |
| Inclination angle 77-8114 | 14 | 40 | 28 | 20 |
| Inclination angle 77-8116 | 16 | 54 | 38 | 27 |
| Inclination angle 77-8118 | 18 | 63 | 44 | 31.5 |
| Inclination angle 77-8120 | 20 | 80 | 56 | 40 |
