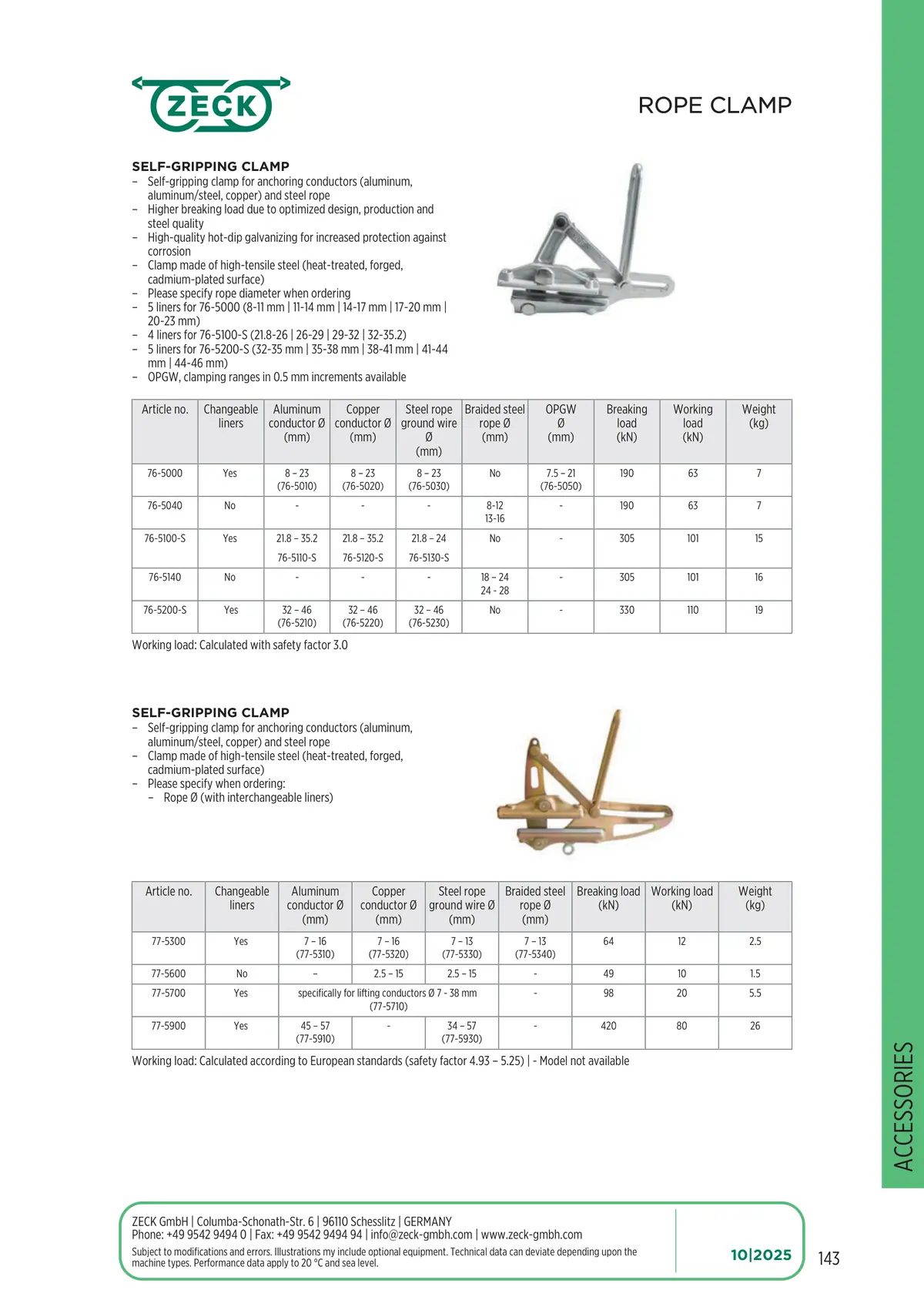

Catalogue pages
ROPE CLAMP
SELF-GRIPPING CLAMP
- Self-gripping clamp for anchoring conductors (aluminum, aluminum/steel, copper) and steel rope
- Higher breaking load due to optimized design, production and steel quality
- High-quality hot-dip galvanizing for increased protection against corrosion
- Clamp made of high-tensile steel (heat-treated, forged, cadmium-plated surface)
- Please specify rope diameter when ordering
- 5 liners for 76-5000 (8-11 mm | 11-14 mm | 14-17 mm | 17-20 mm | 20-23 mm)
- 4 liners for 76-5100-S (21.8-26 | 26-29 | 29-32 | 32-35.2)
- 5 liners for 76-5200-S (32-35 mm | 35-38 mm | 38-41 mm | 41-44 mm | 44-46 mm)
- OPGW, clamping ranges in 0.5 mm increments available
- Article no. 76-5000
- Changeable liners: Yes · Aluminum conductor Ø (mm): 8 – 23 (76-5010) · Copper conductor Ø (mm): 8 – 23 (76-5020) · Steel rope ground wire Ø (mm): 8 – 23 (76-5030) · Braided steel rope Ø (mm): No · OPGW Ø (mm): 7.5 – 21 (76-5050) · Breaking load (kN): 190 · Working load (kN): 63 · Weight (kg): 7
- Article no. 76-5040
- Changeable liners: No · Aluminum conductor Ø (mm): - · Copper conductor Ø (mm): - · Steel rope ground wire Ø (mm): - · Braided steel rope Ø (mm): 8-12 13-16 · OPGW Ø (mm): - · Breaking load (kN): 190 · Working load (kN): 63 · Weight (kg): 7
- Article no. 76-5100-S
- Changeable liners: Yes · Aluminum conductor Ø (mm): 21.8 – 35.2 76-5110-S · Copper conductor Ø (mm): 21.8 – 35.2 76-5120-S · Steel rope ground wire Ø (mm): 21.8 – 24 76-5130-S · Braided steel rope Ø (mm): No · OPGW Ø (mm): - · Breaking load (kN): 305 · Working load (kN): 101 · Weight (kg): 15
- Article no. 76-5140
- Changeable liners: No · Aluminum conductor Ø (mm): - · Copper conductor Ø (mm): - · Steel rope ground wire Ø (mm): - · Braided steel rope Ø (mm): 18 – 24 24 - 28 · OPGW Ø (mm): - · Breaking load (kN): 305 · Working load (kN): 101 · Weight (kg): 16
- Article no. 76-5200-S
- Changeable liners: Yes · Aluminum conductor Ø (mm): 32 – 46 (76-5210) · Copper conductor Ø (mm): 32 – 46 (76-5220) · Steel rope ground wire Ø (mm): 32 – 46 (76-5230) · Braided steel rope Ø (mm): No · OPGW Ø (mm): - · Breaking load (kN): 330 · Working load (kN): 110 · Weight (kg): 19
Working load: Calculated with safety factor 3.0
SELF-GRIPPING CLAMP
- Self-gripping clamp for anchoring conductors (aluminum, aluminum/steel, copper) and steel rope
- Clamp made of high-tensile steel (heat-treated, forged, cadmium-plated surface)
- Please specify when ordering:
- Rope Ø (with interchangeable liners)
- Article no. 77-5300
- Changeable liners: Yes · Aluminum conductor Ø (mm): 7 – 16 (77-5310) · Copper conductor Ø (mm): 7 – 16 (77-5320) · Steel rope ground wire Ø (mm): 7 – 13 (77-5330) · Braided steel rope Ø (mm): 7 – 13 (77-5340) · Breaking load (kN): 64 · Working load (kN): 12 · Weight (kg): 2.5
- Article no. 77-5600
- Changeable liners: No · Aluminum conductor Ø (mm): – · Copper conductor Ø (mm): 2.5 – 15 · Steel rope ground wire Ø (mm): 2.5 – 15 · Braided steel rope Ø (mm): - · Breaking load (kN): 49 · Working load (kN): 10 · Weight (kg): 1.5
- Article no. 77-5700
- Changeable liners: Yes · Aluminum conductor Ø (mm): specifically for lifting conductors Ø 7 - 38 mm (77-5710) · Braided steel rope Ø (mm): - · Breaking load (kN): 98 · Working load (kN): 20 · Weight (kg): 5.5
- Article no. 77-5900
- Changeable liners: Yes · Aluminum conductor Ø (mm): 45 – 57 (77-5910) · Copper conductor Ø (mm): - · Steel rope ground wire Ø (mm): 34 – 57 (77-5930) · Braided steel rope Ø (mm): - · Breaking load (kN): 420 · Working load (kN): 80 · Weight (kg): 26
Working load: Calculated according to European standards (safety factor 4.93 – 5.25) | - Model not available
