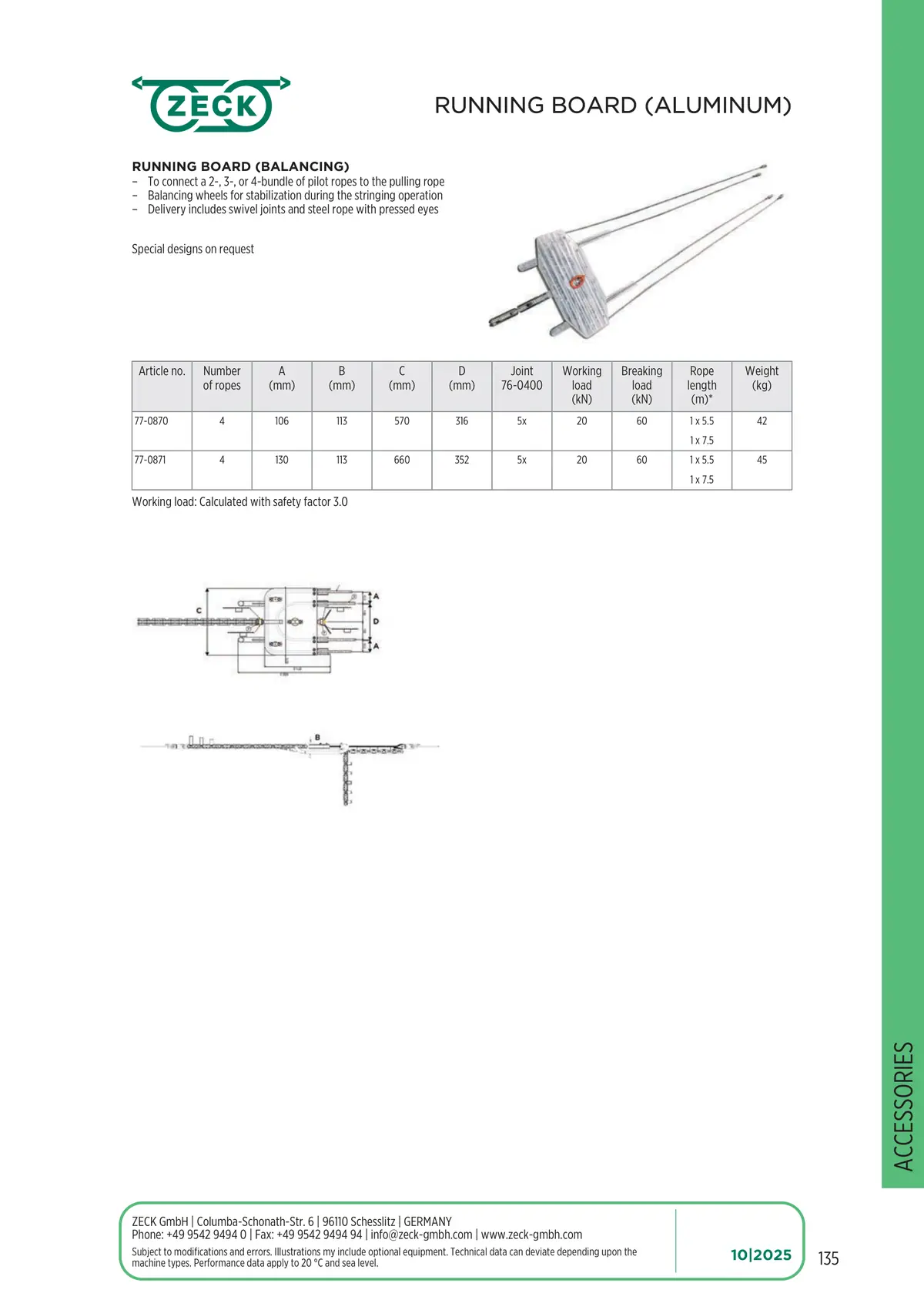

Running Board

RUNNING BOARD (ALUMINUM)

RUNNING BOARD (BALANCING)

• To connect a 2-, 3-, or 4-bundle of pilot ropes to the pulling rope
• Balancing wheels for stabilization during the stringing operation
• Delivery includes swivel joints and steel rope with pressed eyes

Special designs on request

Article no. 77-0870

Number of ropes: 4 · A (mm): 106 · B (mm): 113 · C (mm): 570 · D (mm): 316 · Joint 76-0400: 5x · Working load (kN): 20 · Breaking load (kN): 60 · Rope length (m)*: 1 x 5.5 1 x 7.5 · Weight (kg): 42

Article no. 77-0871

Number of ropes: 4 · A (mm): 130 · B (mm): 113 · C (mm): 660 · D (mm): 352 · Joint 76-0400: 5x · Working load (kN): 20 · Breaking load (kN): 60 · Rope length (m)*: 1 x 5.5 1 x 7.5 · Weight (kg): 45

Working load: Calculated with safety factor 3.0

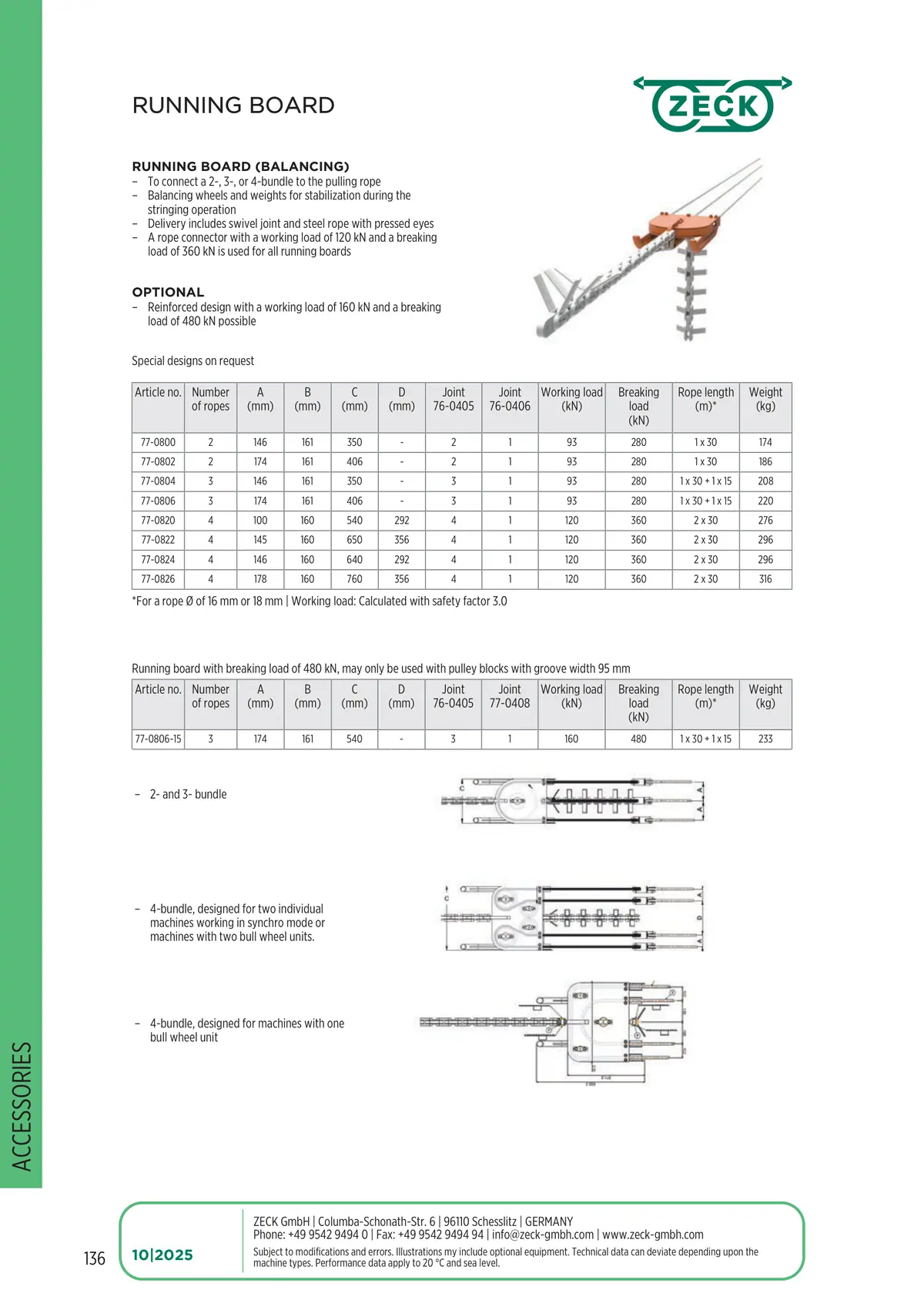

RUNNING BOARD

RUNNING BOARD (BALANCING)

• To connect a 2-, 3-, or 4-bundle to the pulling rope
• Balancing wheels and weights for stabilization during the stringing operation
• Delivery includes swivel joint and steel rope with pressed eyes
• A rope connector with a working load of 120 kN and a breaking load of 360 kN is used for all running boards

OPTIONAL

• Reinforced design with a working load of 160 kN and a breaking load of 480 kN possible

Special designs on request

Article no. 77-0800

Number of ropes: 2 · A (mm): 146 · B (mm): 161 · C (mm): 350 · D (mm): - · Joint 76-0405: 2 · Joint 76-0406: 1 · Working load (kN): 93 · Breaking load (kN): 280 · Rope length (m)*: 1 x 30 · Weight (kg): 174

Article no. 77-0802

Number of ropes: 2 · A (mm): 174 · B (mm): 161 · C (mm): 406 · D (mm): - · Joint 76-0405: 2 · Joint 76-0406: 1 · Working load (kN): 93 · Breaking load (kN): 280 · Rope length (m)*: 1 x 30 · Weight (kg): 186

Article no. 77-0804

Number of ropes: 3 · A (mm): 146 · B (mm): 161 · C (mm): 350 · D (mm): - · Joint 76-0405: 3 · Joint 76-0406: 1 · Working load (kN): 93 · Breaking load (kN): 280 · Rope length (m)*: 1 x 30 + 1 x 15 · Weight (kg): 208

Article no. 77-0806

Number of ropes: 3 · A (mm): 174 · B (mm): 161 · C (mm): 406 · D (mm): - · Joint 76-0405: 3 · Joint 76-0406: 1 · Working load (kN): 93 · Breaking load (kN): 280 · Rope length (m)*: 1 x 30 + 1 x 15 · Weight (kg): 220

Article no. 77-0820

Number of ropes: 4 · A (mm): 100 · B (mm): 160 · C (mm): 540 · D (mm): 292 · Joint 76-0405: 4 · Joint 76-0406: 1 · Working load (kN): 120 · Breaking load (kN): 360 · Rope length (m)*: 2 x 30 · Weight (kg): 276

Article no. 77-0822

Number of ropes: 4 · A (mm): 145 · B (mm): 160 · C (mm): 650 · D (mm): 356 · Joint 76-0405: 4 · Joint 76-0406: 1 · Working load (kN): 120 · Breaking load (kN): 360 · Rope length (m)*: 2 x 30 · Weight (kg): 296

Article no. 77-0824

Number of ropes: 4 · A (mm): 146 · B (mm): 160 · C (mm): 640 · D (mm): 292 · Joint 76-0405: 4 · Joint 76-0406: 1 · Working load (kN): 120 · Breaking load (kN): 360 · Rope length (m)*: 2 x 30 · Weight (kg): 296

Article no. 77-0826

Number of ropes: 4 · A (mm): 178 · B (mm): 160 · C (mm): 760 · D (mm): 356 · Joint 76-0405: 4 · Joint 76-0406: 1 · Working load (kN): 120 · Breaking load (kN): 360 · Rope length (m)*: 2 x 30 · Weight (kg): 316

*For a rope Ø of 16 mm or 18 mm | Working load: Calculated with safety factor 3.0

Running board with breaking load of 480 kN, may only be used with pulley blocks with groove width 95 mm

Article no. 77-0806-15

Number of ropes: 3 · A (mm): 174 · B (mm): 161 · C (mm): 540 · D (mm): - · Joint 76-0405: 3 · Joint 77-0408: 1 · Working load (kN): 160 · Breaking load (kN): 480 · Rope length (m)*: 1 x 30 + 1 x 15 · Weight (kg): 233

• 2- and 3- bundle
• 4-bundle, designed for two individual machines working in synchro mode or machines with two bull wheel units.
• 4-bundle, designed for machines with one bull wheel unit

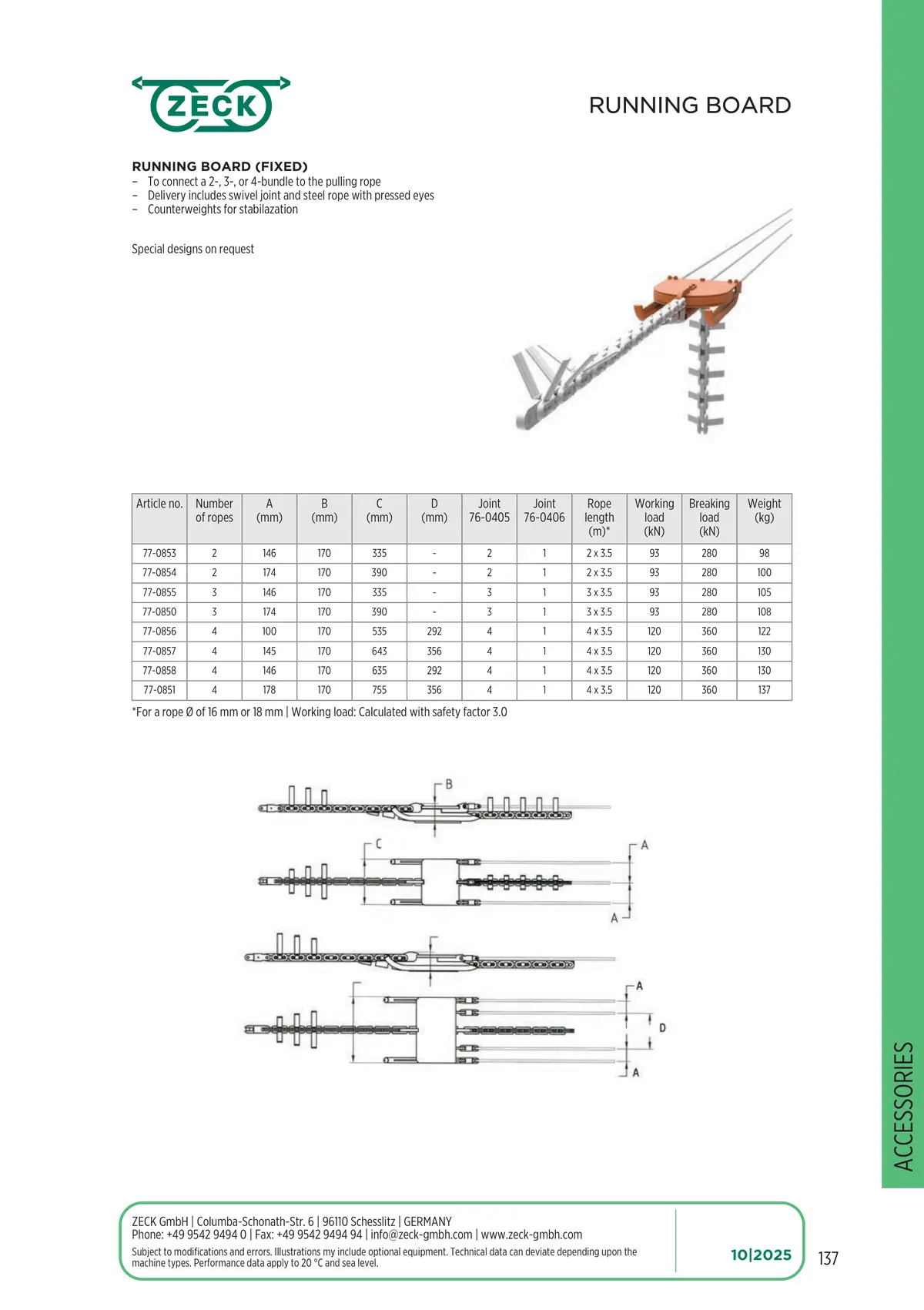

RUNNING BOARD

RUNNING BOARD (FIXED)

• To connect a 2-, 3-, or 4-bundle to the pulling rope
• Delivery includes swivel joint and steel rope with pressed eyes
• Counterweights for stabilazation

Special designs on request

Article no. 77-0853

Number of ropes: 2 · A (mm): 146 · B (mm): 170 · C (mm): 335 · D (mm): - · Joint 76-0405: 2 · Joint 76-0406: 1 · Rope length (m)*: 2 x 3.5 · Working load (kN): 93 · Breaking load (kN): 280 · Weight (kg): 98

Article no. 77-0854

Number of ropes: 2 · A (mm): 174 · B (mm): 170 · C (mm): 390 · D (mm): - · Joint 76-0405: 2 · Joint 76-0406: 1 · Rope length (m)*: 2 x 3.5 · Working load (kN): 93 · Breaking load (kN): 280 · Weight (kg): 100

Article no. 77-0855

Number of ropes: 3 · A (mm): 146 · B (mm): 170 · C (mm): 335 · D (mm): - · Joint 76-0405: 3 · Joint 76-0406: 1 · Rope length (m)*: 3 x 3.5 · Working load (kN): 93 · Breaking load (kN): 280 · Weight (kg): 105

Article no. 77-0850

Number of ropes: 3 · A (mm): 174 · B (mm): 170 · C (mm): 390 · D (mm): - · Joint 76-0405: 3 · Joint 76-0406: 1 · Rope length (m)*: 3 x 3.5 · Working load (kN): 93 · Breaking load (kN): 280 · Weight (kg): 108

Article no. 77-0856

Number of ropes: 4 · A (mm): 100 · B (mm): 170 · C (mm): 535 · D (mm): 292 · Joint 76-0405: 4 · Joint 76-0406: 1 · Rope length (m)*: 4 x 3.5 · Working load (kN): 120 · Breaking load (kN): 360 · Weight (kg): 122

Article no. 77-0857

Number of ropes: 4 · A (mm): 145 · B (mm): 170 · C (mm): 643 · D (mm): 356 · Joint 76-0405: 4 · Joint 76-0406: 1 · Rope length (m)*: 4 x 3.5 · Working load (kN): 120 · Breaking load (kN): 360 · Weight (kg): 130

Article no. 77-0858

Number of ropes: 4 · A (mm): 146 · B (mm): 170 · C (mm): 635 · D (mm): 292 · Joint 76-0405: 4 · Joint 76-0406: 1 · Rope length (m)*: 4 x 3.5 · Working load (kN): 120 · Breaking load (kN): 360 · Weight (kg): 130

Article no. 77-0851

Number of ropes: 4 · A (mm): 178 · B (mm): 170 · C (mm): 755 · D (mm): 356 · Joint 76-0405: 4 · Joint 76-0406: 1 · Rope length (m)*: 4 x 3.5 · Working load (kN): 120 · Breaking load (kN): 360 · Weight (kg): 137

*For a rope Ø of 16 mm or 18 mm | Working load: Calculated with safety factor 3.0
