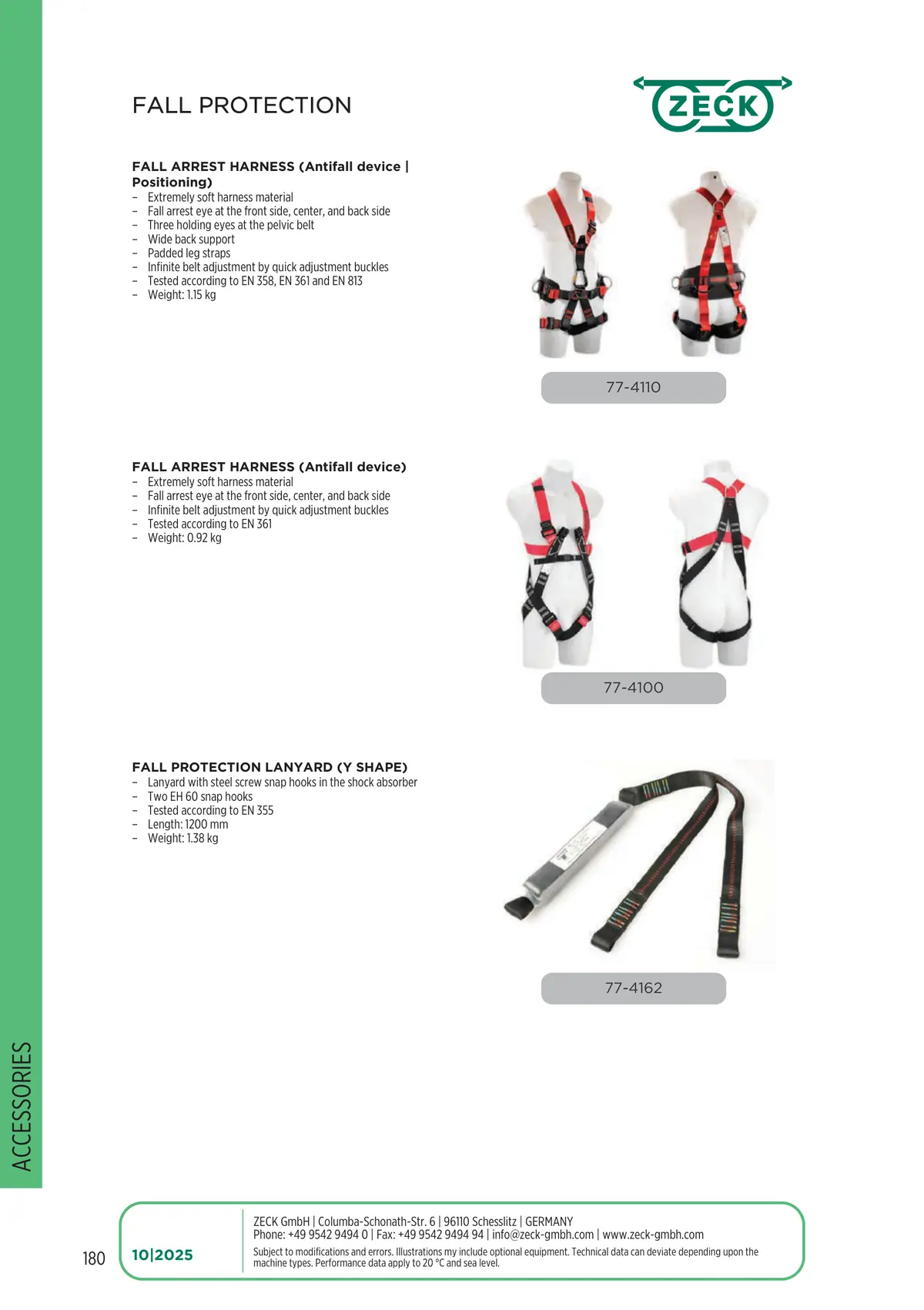

FALL PROTECTION

FALL ARREST HARNESS (Antifall device \| Positioning) Extremely soft harness material Fall arrest eye at the front side, center, and back side Three holding eyes at the pelvic belt Wide back support Padded leg straps Infinite belt adjustment by quick adjustment buckles Tested according to EN 358, EN 361 and EN 813 Weight: 1.15 kg

FALL ARREST HARNESS (Antifall device) Extremely soft harness material Fall arrest eye at the front side, center, and back side Infinite belt adjustment by quick adjustment buckles Tested according to EN 361 Weight: 0.92 kg

FALL PROTECTION LANYARD (Y SHAPE) Lanyard with steel screw snap hooks in the shock absorber Two EH 60 snap hooks Tested according to EN 355 Length: 1200 mm Weight: 1.38 kg

SELF RETRACTING LIFELINE

Automatic winding/unwinding of steel rope
Automatic braking system in case of fall
Synthetic case
Rotating brackets on the device
Snap hook at the rope (also suitable for horizontal use)
Including fastener
Tested according to EN 360

Article no.	Length (m)	Working load (kN)	Weight (kg)
77-4170	18	1.4	6.3
77-4172	24	1.4	7.3

POSITIONING BELT

Positioning and antifall function
Two lateral holding eyes
Infinitely adjustable by clamping buckle
Wide back padding
Tested according to EN 358

Article no.	Length (mm)	Working load (kg)	Max. width (mm)	Weight (kg)
77-4120	750 – 1000	130	100	0.4
77-4121	950 – 1200	130	100	0.4
77-4122	1150 – 1400	130	100	0.5
