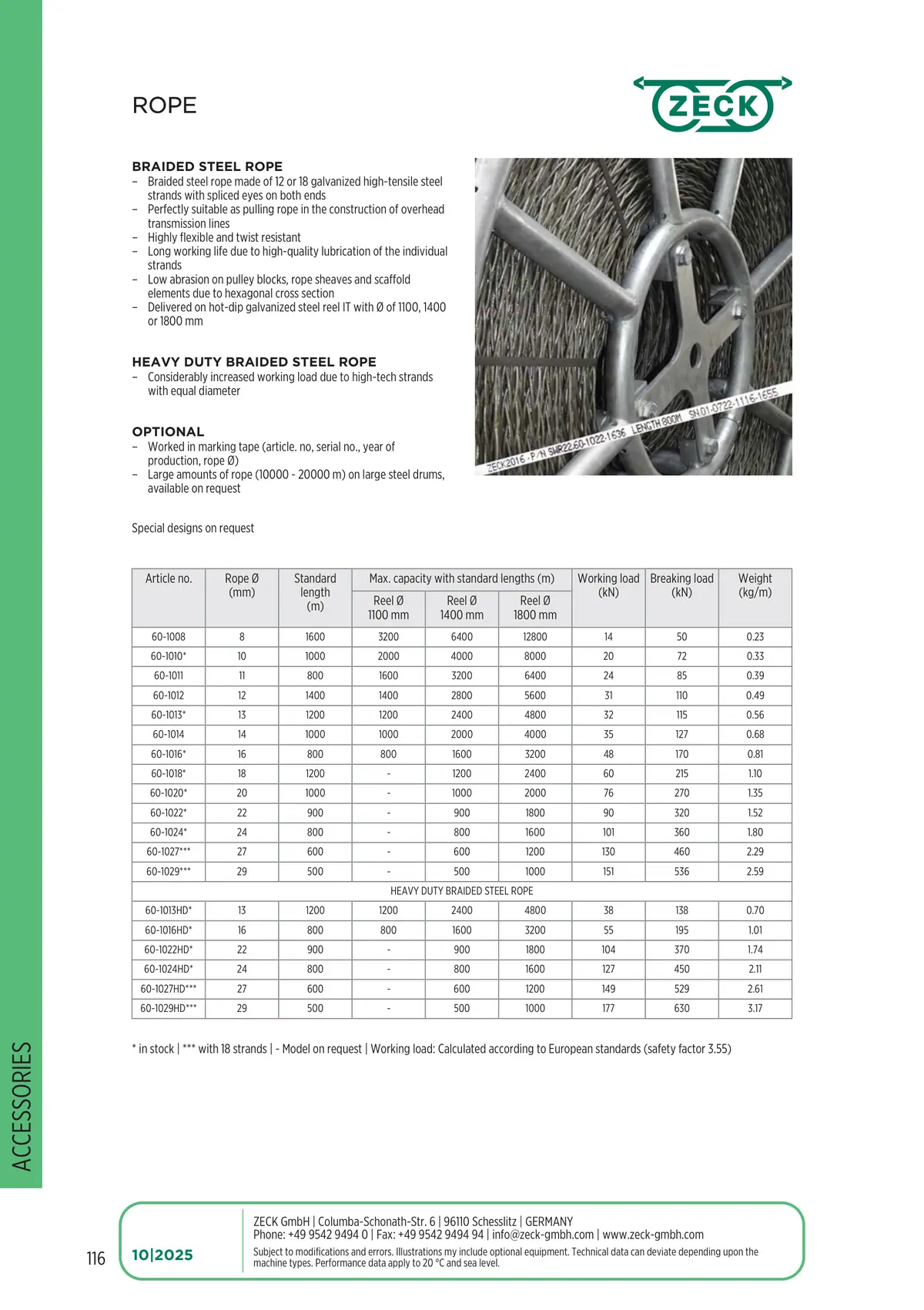

BRAIDED STEEL ROPE

• Braided steel rope made of 12 or 18 galvanized high-tensile steel strands with spliced eyes on both ends
• Perfectly suitable as pulling rope in the construction of overhead transmission lines
• Highly flexible and twist resistant
• Long working life due to high-quality lubrication of the individual strands
• Low abrasion on pulley blocks, rope sheaves and scaffold elements due to hexagonal cross section
• Delivered on hot-dip galvanized steel reel IT with Ø of 1100, 1400 or 1800 mm

HEAVY DUTY BRAIDED STEEL ROPE

• Considerably increased working load due to high-tech strands with equal diameter

OPTIONAL

• Worked in marking tape (article. no, serial no., year of production, rope Ø)
• Large amounts of rope (10000 - 20000 m) on large steel drums, available on request

Special designs on request

Article no. 60-1008

Rope Ø (mm): 8 · Standard length (m): 1600 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: 3200 · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 6400 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 12800 · Working load (kN): 14 · Breaking load (kN): 50 · Weight (kg/m): 0.23

Article no. 60-1010*

Rope Ø (mm): 10 · Standard length (m): 1000 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: 2000 · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 4000 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 8000 · Working load (kN): 20 · Breaking load (kN): 72 · Weight (kg/m): 0.33

Article no. 60-1011

Rope Ø (mm): 11 · Standard length (m): 800 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: 1600 · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 3200 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 6400 · Working load (kN): 24 · Breaking load (kN): 85 · Weight (kg/m): 0.39

Article no. 60-1012

Rope Ø (mm): 12 · Standard length (m): 1400 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: 1400 · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 2800 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 5600 · Working load (kN): 31 · Breaking load (kN): 110 · Weight (kg/m): 0.49

Article no. 60-1013*

Rope Ø (mm): 13 · Standard length (m): 1200 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: 1200 · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 2400 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 4800 · Working load (kN): 32 · Breaking load (kN): 115 · Weight (kg/m): 0.56

Article no. 60-1014

Rope Ø (mm): 14 · Standard length (m): 1000 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: 1000 · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 2000 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 4000 · Working load (kN): 35 · Breaking load (kN): 127 · Weight (kg/m): 0.68

Article no. 60-1016*

Rope Ø (mm): 16 · Standard length (m): 800 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: 800 · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 1600 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 3200 · Working load (kN): 48 · Breaking load (kN): 170 · Weight (kg/m): 0.81

Article no. 60-1018*

Rope Ø (mm): 18 · Standard length (m): 1200 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 1200 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 2400 · Working load (kN): 60 · Breaking load (kN): 215 · Weight (kg/m): 1.10

Article no. 60-1020*

Rope Ø (mm): 20 · Standard length (m): 1000 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 1000 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 2000 · Working load (kN): 76 · Breaking load (kN): 270 · Weight (kg/m): 1.35

Article no. 60-1022*

Rope Ø (mm): 22 · Standard length (m): 900 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 900 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 1800 · Working load (kN): 90 · Breaking load (kN): 320 · Weight (kg/m): 1.52

Article no. 60-1024*

Rope Ø (mm): 24 · Standard length (m): 800 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 800 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 1600 · Working load (kN): 101 · Breaking load (kN): 360 · Weight (kg/m): 1.80

Article no. 60-1027***

Rope Ø (mm): 27 · Standard length (m): 600 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 600 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 1200 · Working load (kN): 130 · Breaking load (kN): 460 · Weight (kg/m): 2.29

Article no. 60-1029***

Rope Ø (mm): 29 · Standard length (m): 500 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 500 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 1000 · Working load (kN): 151 · Breaking load (kN): 536 · Weight (kg/m): 2.59

Article no. HEAVY DUTY BRAIDED STEEL ROPE

Article no. 60-1013HD*

Rope Ø (mm): 13 · Standard length (m): 1200 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: 1200 · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 2400 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 4800 · Working load (kN): 38 · Breaking load (kN): 138 · Weight (kg/m): 0.70

Article no. 60-1016HD*

Rope Ø (mm): 16 · Standard length (m): 800 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: 800 · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 1600 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 3200 · Working load (kN): 55 · Breaking load (kN): 195 · Weight (kg/m): 1.01

Article no. 60-1022HD*

Rope Ø (mm): 22 · Standard length (m): 900 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 900 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 1800 · Working load (kN): 104 · Breaking load (kN): 370 · Weight (kg/m): 1.74

Article no. 60-1024HD*

Rope Ø (mm): 24 · Standard length (m): 800 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 800 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 1600 · Working load (kN): 127 · Breaking load (kN): 450 · Weight (kg/m): 2.11

Article no. 60-1027HD***

Rope Ø (mm): 27 · Standard length (m): 600 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 600 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 1200 · Working load (kN): 149 · Breaking load (kN): 529 · Weight (kg/m): 2.61

Article no. 60-1029HD***

Rope Ø (mm): 29 · Standard length (m): 500 · Max. capacity with standard lengths (m) – Reel Ø 1100 mm: - · Max. capacity with standard lengths (m) – Reel Ø 1400 mm: 500 · Max. capacity with standard lengths (m) – Reel Ø 1800 mm: 1000 · Working load (kN): 177 · Breaking load (kN): 630 · Weight (kg/m): 3.17

* in stock | *** with 18 strands | - Model on request | Working load: Calculated according to European standards (safety factor 3.55)

ROPE

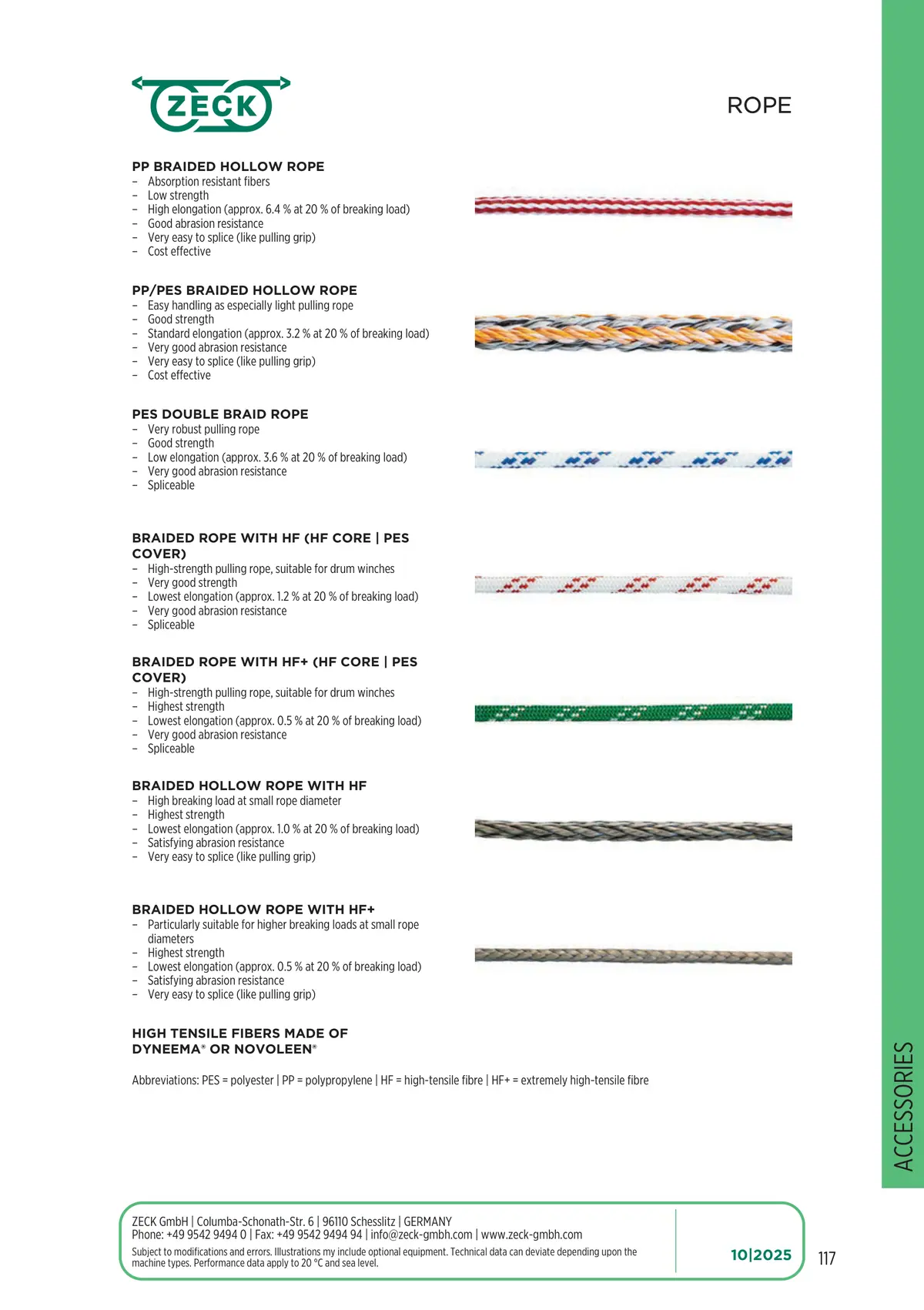

PP BRAIDED HOLLOW ROPE

• Absorption resistant fibers
• Low strength
• High elongation (approx. 6.4 % at 20 % of breaking load)
• Good abrasion resistance
• Very easy to splice (like pulling grip)
• Cost effective

PP/PES BRAIDED HOLLOW ROPE

• Easy handling as especially light pulling rope
• Good strength
• Standard elongation (approx. 3.2 % at 20 % of breaking load)
• Very good abrasion resistance
• Very easy to splice (like pulling grip)
• Cost effective

PES DOUBLE BRAID ROPE

• Very robust pulling rope
• Good strength
• Low elongation (approx. 3.6 % at 20 % of breaking load)
• Very good abrasion resistance
• Spliceable

BRAIDED ROPE WITH HF (HF CORE | PES COVER)

• High-strength pulling rope, suitable for drum winches
• Very good strength
• Lowest elongation (approx. 1.2 % at 20 % of breaking load)
• Very good abrasion resistance
• Spliceable

BRAIDED ROPE WITH HF+ (HF CORE | PES COVER)

• High-strength pulling rope, suitable for drum winches
• Highest strength
• Lowest elongation (approx. 0.5 % at 20 % of breaking load)
• Very good abrasion resistance
• Spliceable

BRAIDED HOLLOW ROPE WITH HF

• High breaking load at small rope diameter
• Highest strength
• Lowest elongation (approx. 1.0 % at 20 % of breaking load)
• Satisfying abrasion resistance
• Very easy to splice (like pulling grip)

BRAIDED HOLLOW ROPE WITH HF+

• Particularly suitable for higher breaking loads at small rope diameters
• Highest strength
• Lowest elongation (approx. 0.5 % at 20 % of breaking load)
• Satisfying abrasion resistance
• Very easy to splice (like pulling grip)

HIGH TENSILE FIBERS MADE OF DYNEEMA® OR NOVOLEEN®

Abbreviations: PES = polyester | PP = polypropylene | HF = high-tensile fibre | HF+ = extremely high-tensile fibre

ROPE

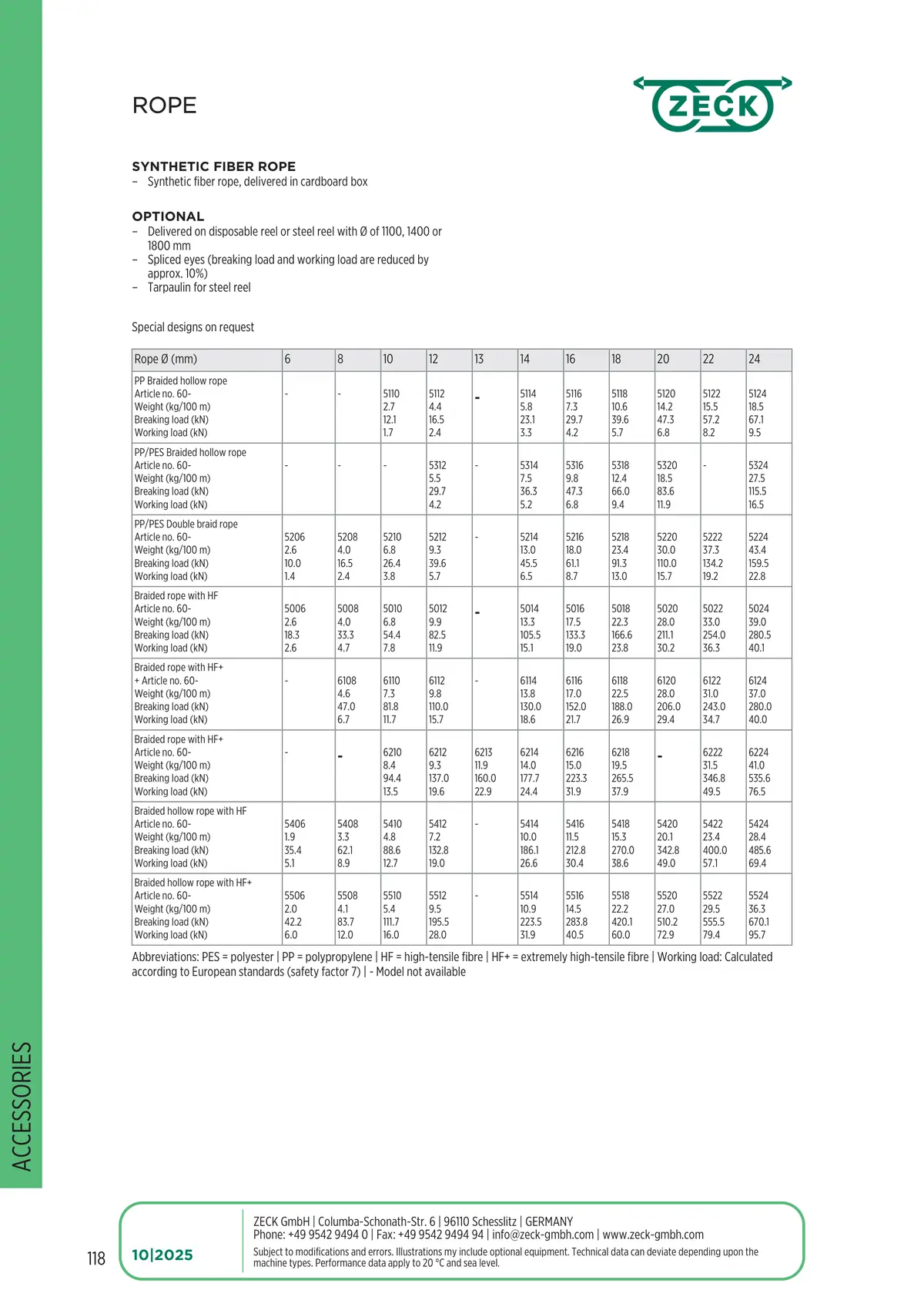

SYNTHETIC FIBER ROPE

• Synthetic fiber rope, delivered in cardboard box

OPTIONAL

• Delivered on disposable reel or steel reel with Ø of 1100, 1400 or 1800 mm
• Spliced eyes (breaking load and working load are reduced by approx. 10%)
• Tarpaulin for steel reel

Special designs on request

Rope Ø (mm) PP Braided hollow rope Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)

6: - · 8: - · 10: 5110 2.7 12.1 1.7 · 12: 5112 4.4 16.5 2.4 · 13: - · 14: 5114 5.8 23.1 3.3 · 16: 5116 7.3 29.7 4.2 · 18: 5118 10.6 39.6 5.7 · 20: 5120 14.2 47.3 6.8 · 22: 5122 15.5 57.2 8.2 · 24: 5124 18.5 67.1 9.5

Rope Ø (mm) PP/PES Braided hollow rope Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)

6: - · 8: - · 10: - · 12: 5312 5.5 29.7 4.2 · 13: - · 14: 5314 7.5 36.3 5.2 · 16: 5316 9.8 47.3 6.8 · 18: 5318 12.4 66.0 9.4 · 20: 5320 18.5 83.6 11.9 · 22: - · 24: 5324 27.5 115.5 16.5

Rope Ø (mm) PP/PES Double braid rope Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)

6: 5206 2.6 10.0 1.4 · 8: 5208 4.0 16.5 2.4 · 10: 5210 6.8 26.4 3.8 · 12: 5212 9.3 39.6 5.7 · 13: - · 14: 5214 13.0 45.5 6.5 · 16: 5216 18.0 61.1 8.7 · 18: 5218 23.4 91.3 13.0 · 20: 5220 30.0 110.0 15.7 · 22: 5222 37.3 134.2 19.2 · 24: 5224 43.4 159.5 22.8

Rope Ø (mm) Braided rope with HF Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)

6: 5006 2.6 18.3 2.6 · 8: 5008 4.0 33.3 4.7 · 10: 5010 6.8 54.4 7.8 · 12: 5012 9.9 82.5 11.9 · 13: - · 14: 5014 13.3 105.5 15.1 · 16: 5016 17.5 133.3 19.0 · 18: 5018 22.3 166.6 23.8 · 20: 5020 28.0 211.1 30.2 · 22: 5022 33.0 254.0 36.3 · 24: 5024 39.0 280.5 40.1

Rope Ø (mm) Braided rope with HF+ + Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)

6: - · 8: 6108 4.6 47.0 6.7 · 10: 6110 7.3 81.8 11.7 · 12: 6112 9.8 110.0 15.7 · 13: - · 14: 6114 13.8 130.0 18.6 · 16: 6116 17.0 152.0 21.7 · 18: 6118 22.5 188.0 26.9 · 20: 6120 28.0 206.0 29.4 · 22: 6122 31.0 243.0 34.7 · 24: 6124 37.0 280.0 40.0

Rope Ø (mm) Braided rope with HF+ Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)

6: - · 8: - · 10: 6210 8.4 94.4 13.5 · 12: 6212 9.3 137.0 19.6 · 13: 6213 11.9 160.0 22.9 · 14: 6214 14.0 177.7 24.4 · 16: 6216 15.0 223.3 31.9 · 18: 6218 19.5 265.5 37.9 · 20: - · 22: 6222 31.5 346.8 49.5 · 24: 6224 41.0 535.6 76.5

Rope Ø (mm) Braided hollow rope with HF Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)

6: 5406 1.9 35.4 5.1 · 8: 5408 3.3 62.1 8.9 · 10: 5410 4.8 88.6 12.7 · 12: 5412 7.2 132.8 19.0 · 13: - · 14: 5414 10.0 186.1 26.6 · 16: 5416 11.5 212.8 30.4 · 18: 5418 15.3 270.0 38.6 · 20: 5420 20.1 342.8 49.0 · 22: 5422 23.4 400.0 57.1 · 24: 5424 28.4 485.6 69.4

Rope Ø (mm) Braided hollow rope with HF+ Article no. 60- Weight (kg/100 m) Breaking load (kN) Working load (kN)

6: 5506 2.0 42.2 6.0 · 8: 5508 4.1 83.7 12.0 · 10: 5510 5.4 111.7 16.0 · 12: 5512 9.5 195.5 28.0 · 13: - · 14: 5514 10.9 223.5 31.9 · 16: 5516 14.5 283.8 40.5 · 18: 5518 22.2 420.1 60.0 · 20: 5520 27.0 510.2 72.9 · 22: 5522 29.5 555.5 79.4 · 24: 5524 36.3 670.1 95.7

Abbreviations: PES = polyester | PP = polypropylene | HF = high-tensile fibre | HF+ = extremely high-tensile fibre | Working load: Calculated according to European standards (safety factor 7) | - Model not available
