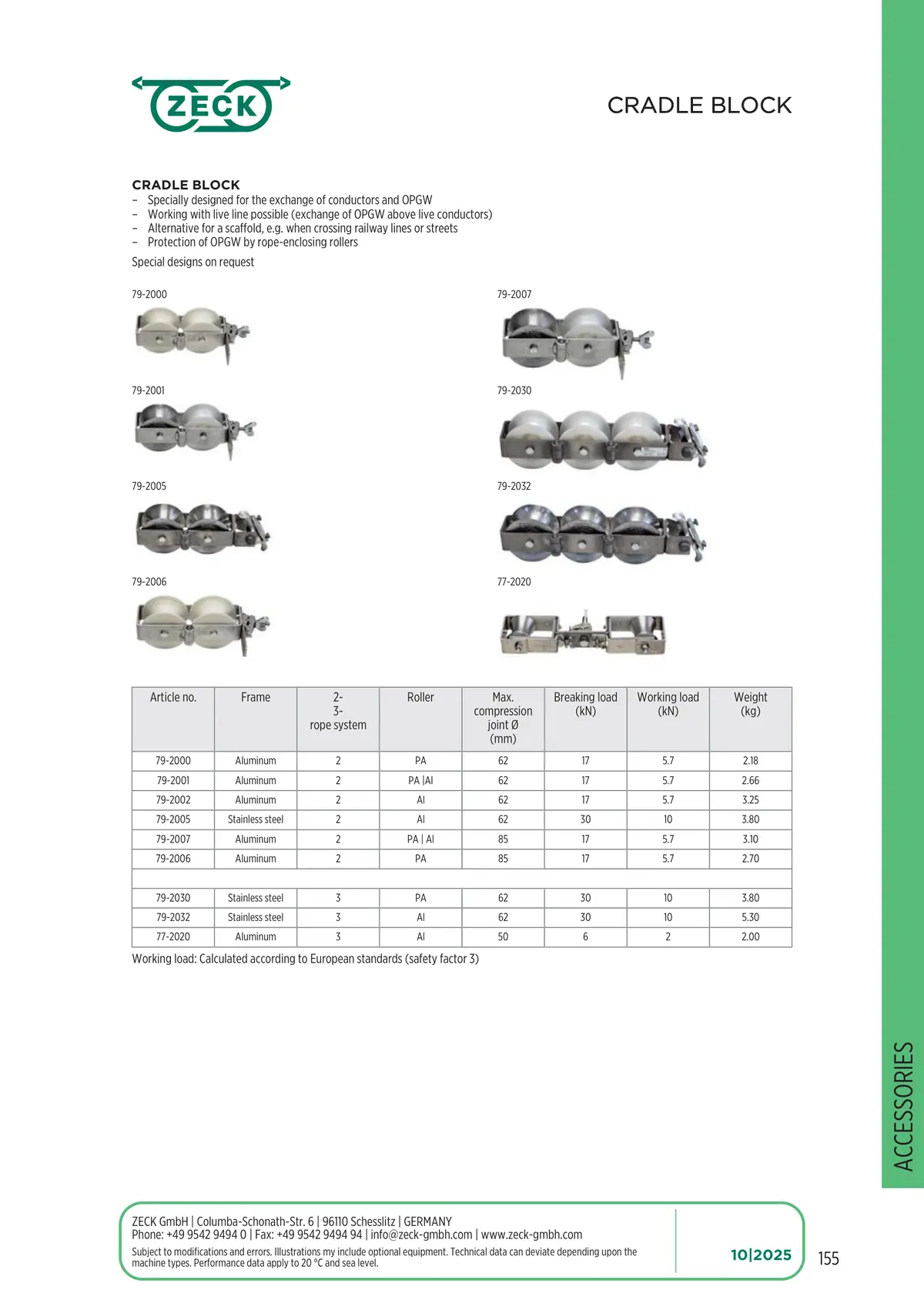

Cradle Block

CRADLE BLOCK

CRADLE BLOCK

• Specially designed for the exchange of conductors and OPGW
• Working with live line possible (exchange of OPGW above live conductors)
• Alternative for a scaffold, e.g. when crossing railway lines or streets
• Protection of OPGW by rope-enclosing rollers

Special designs on request

79-2000

79-2001

79-2005

79-2006

79-2007

79-2030

79-2032

77-2020

Article no. 79-2000

Frame: Aluminum · 2- 3- rope system: 2 · Roller: PA · Max. compression joint Ø (mm): 62 · Breaking load (kN): 17 · Working load (kN): 5.7 · Weight (kg): 2.18

Article no. 79-2001

Frame: Aluminum · 2- 3- rope system: 2 · Roller: PA |Al · Max. compression joint Ø (mm): 62 · Breaking load (kN): 17 · Working load (kN): 5.7 · Weight (kg): 2.66

Article no. 79-2002

Frame: Aluminum · 2- 3- rope system: 2 · Roller: Al · Max. compression joint Ø (mm): 62 · Breaking load (kN): 17 · Working load (kN): 5.7 · Weight (kg): 3.25

Article no. 79-2005

Frame: Stainless steel · 2- 3- rope system: 2 · Roller: Al · Max. compression joint Ø (mm): 62 · Breaking load (kN): 30 · Working load (kN): 10 · Weight (kg): 3.80

Article no. 79-2007

Frame: Aluminum · 2- 3- rope system: 2 · Roller: PA | Al · Max. compression joint Ø (mm): 85 · Breaking load (kN): 17 · Working load (kN): 5.7 · Weight (kg): 3.10

Article no. 79-2006

Frame: Aluminum · 2- 3- rope system: 2 · Roller: PA · Max. compression joint Ø (mm): 85 · Breaking load (kN): 17 · Working load (kN): 5.7 · Weight (kg): 2.70

Article no.

Article no. 79-2030

Frame: Stainless steel · 2- 3- rope system: 3 · Roller: PA · Max. compression joint Ø (mm): 62 · Breaking load (kN): 30 · Working load (kN): 10 · Weight (kg): 3.80

Article no. 79-2032

Frame: Stainless steel · 2- 3- rope system: 3 · Roller: Al · Max. compression joint Ø (mm): 62 · Breaking load (kN): 30 · Working load (kN): 10 · Weight (kg): 5.30

Article no. 77-2020

Frame: Aluminum · 2- 3- rope system: 3 · Roller: Al · Max. compression joint Ø (mm): 50 · Breaking load (kN): 6 · Working load (kN): 2 · Weight (kg): 2.00

Working load: Calculated according to European standards (safety factor 3)
